Sigal Museum / Spillman Farmer Architects

© Steve Wolfe

Architects: Spillman Farmer Architects
Location: Easton, PA,
Project Team: James Whildin, Joseph N. Biondo, Randy Galiotto, Michael Metzger, Wayne Stitt, Joanne Titcomb, Brian Brandis, David Wrigley, Sierra Krause, Deirdre Kwiatek
Project Area: 31,626 sq ft
Project Year: 2010
Photographs: Steve Wolfe

The Northampton County Historical & Genealogical Society curates one of the richest historical collections in Pennsylvania; however, due to lack of space less than one percent of this collection could be shared with visitors at any given time. The organization’s educational programming was similarly limited – not by the depth of opportunities but by the space available to accommodate visitors. With the dream of showcasing its collection and providing hands-on activities and experiential learning to the public, NCHGS commissioned to adaptively reuse an existing building and help make history come alive.

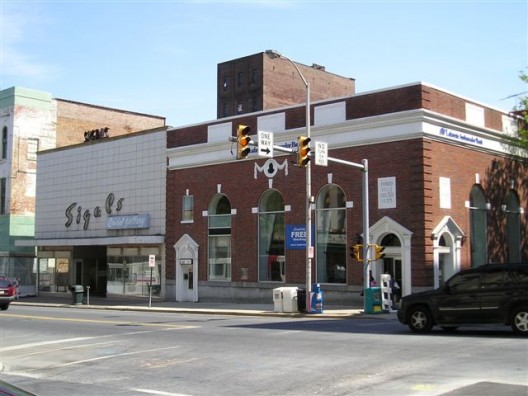

existing building

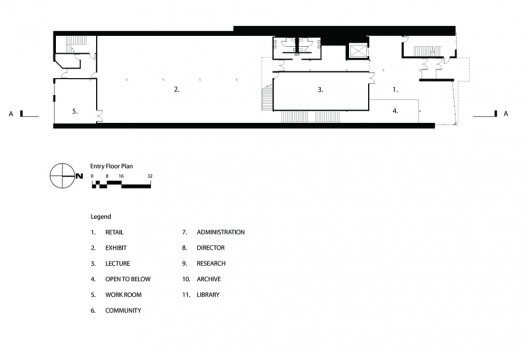

entry floor plan

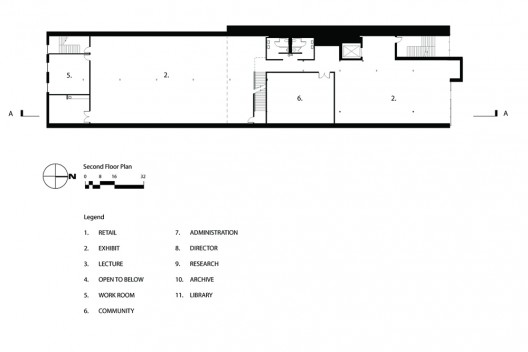

second floor plan

The Spillman team began by understanding the client’s goals and vision: lots of flexible spaces to accommodate ever-changing interactive exhibits; library space to house NCHGS’s thousands of rare books and documents and make them accessible in a quiet research room; a community room; and an auditorium to be used by organizations including smaller historical societies that lacked a permanent home. NCHGS also had a building it wished to transform to create this new place: an urban landmark that was once a turn-of-the-century opera house and later (and for many decades) a beloved retail storefront.

© Steve Wolfe

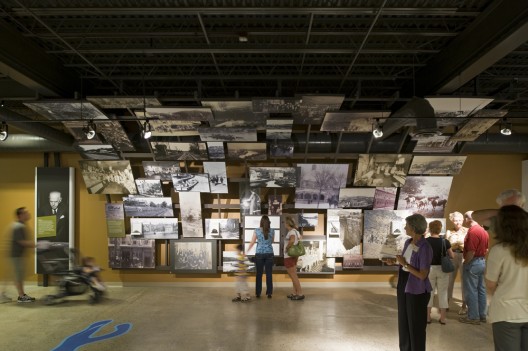

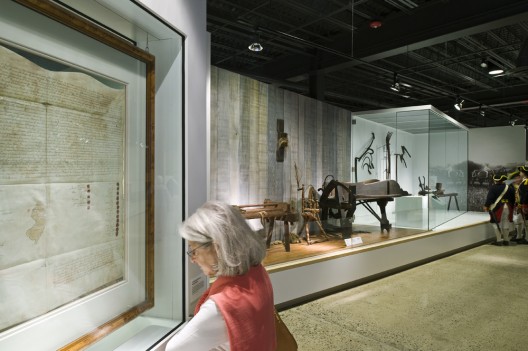

“We worked from the inside out, developing spaces that would meet the client’s needs within the shell of the existing three-story plus basement structure” stated architect Joesph N. Biondo. The floor plan was re-created as a shotgun-style volume with zones of flexible programming space divided by a strategically placed central utility core. The first floor of the building was cut away to create a light-filled lower level that expands exhibit space and creates a dramatic main gallery. Also located here is a 100-seat auditorium. The second floor includes additional permanent and alternating exhibit space as well as a community room. The third floor houses NCHGS’s library and archives, dedicated research room, and administrative offices.

© Steve Wolfe

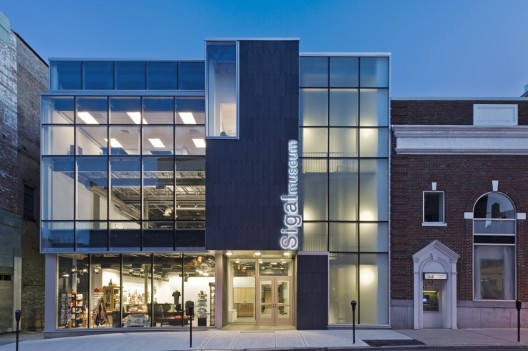

“The City of Easton, led by the Honorable Mayor Salvatore J. Panto, has a progressive view on the development of new architecture within the Historic District, their teams commitment to the project was crucial to the success” stated Biondo. The exterior of the building was re-envisioned with a completely new facade crafted of concrete, slate, and glass. Concrete and slate were purposefully selected as they are local materials deeply connected to the region’s industrial heritage. The concrete base grounds the building while the slate, featured as a rain screen, draws the viewer’s eye upward along the full height of the building. Glass curtain walls bring transparency and translucency to the building during the day and transform the structure into a dynamic beacon at night. These materials are incorporated into a design that respects the massing, scale, and proportion of the historic Victorian-era architecture that characterizes downtown Easton.

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Sigal Museum / Spillman Farmer Architects" 08 Oct 2010. ArchDaily. Accessed 29 Aug 2014. <http://www.archdaily.com/?p=80761>
