A couple of days ago we featured a project by Slovenian architects Enota, which received second prize in an invited competition. In that project, our readers asked for OFIS arhitekti’s proposal to the competition, so they shared it with us for you to enjoy. More images and architect’s description after the break.

The project proposes two layered volumes embracing the rich mix of different programs and distributed in: -base of the volume as public programs and offices -top floors as apartments

Courtesy of OFIS arhitekti

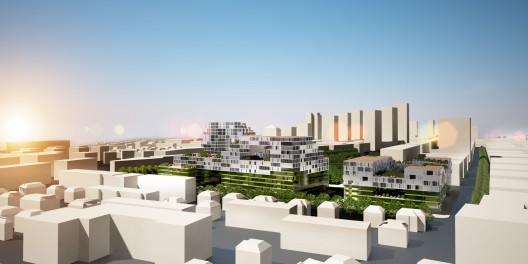

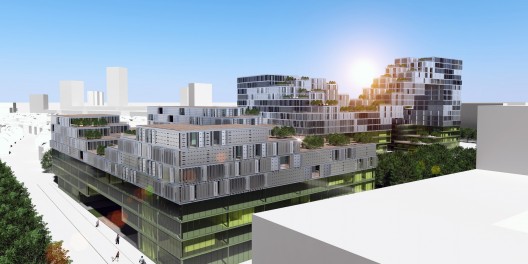

The tower strip steps up and down according to the urban height limits and form terraces-gardens. Public Base volumes are separated and create open squares – dialog of external plaza with public programs and offices. Spaces are communicative, bright, fluid, and easily accessible and offer nice views and connections with surroundings: Strenia square, Park and roads.

10×10 MODULAR GRID – FLEXIBILITY Both volumes are divided into modules, 10x10m in floor-plan. This is most sufficient modular grid for all programs (housing, public, office, service, and garage) and in this grid structure, façade panels and installation shafts are organized. Therefore plans and volumes are flexible and adaptable so distribution of programs can change according to the demands of investor or changes in the market-needs.

Courtesy of OFIS arhitekti

ECONOMIC AND OPERATIONAL FEASIBILITY The proposal is based on the required surfaces from the brief. Due to its modular grid program distribution is flexible also the brief can be interchangeable and adaptable. Grid and modules repeat in apartments, public areas, offices, so it is possible to change, switch programs or insert new according to the changes on the market or investors needs. Distribution of vertical cores allows different organizations of plans – combinations of offices/programs within one or more floors. On the proposed grid leasable or saleable configuration can be organized.

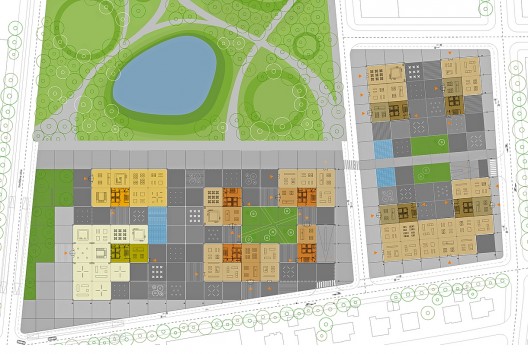

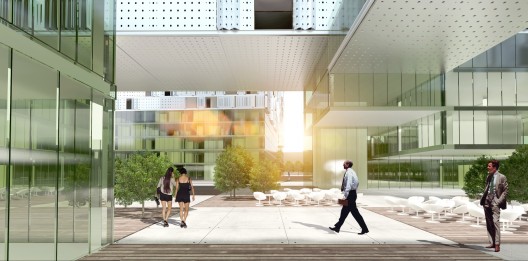

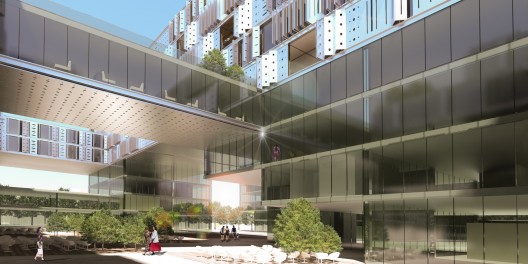

EXTERNAL PLAZA External plaza is space which connects all programs. This is light, fluid and airy space, partly covered and uncovered. It has opened views to park and the streets. It offers good accessibility to all the entrances of the complex and flows of people from the roads and the park. The plaza creates bright and communicative sheltered external space.

Courtesy of OFIS arhitekti

Covered public plaza in ground floor: 7.400 Opened public plaza in ground floor: 7.600 Internal office garden: 1.000 Strenia square: 6.200 Gardens on different levels: 9.200

The western part includes the tower which reaches up to 60 meters and has 18 floors.

BASE OF THE BUILDING – PUBLIC AND BUSINESS The base of the building has four floors and is separated into 3 groups of program. Strenia square consists of 2 separate volumes with Gallery and Library. Floors have general height of 4.00 m net in ground-floor and 3.00 m in upper floors. Some spaces have double height of 6.50m net Plan and structure of both volumes is flexible so it allows also other programs such as offices, medical, shops or other services. Ground-floors are connected with external plaza and allow programs such as gallery shop or cafe in combination with reception, entry lobby and exhibition.

Courtesy of OFIS arhitekti

Volume and shape of the building is archived with simple rules:

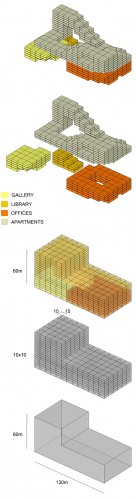

The volume that is given by the urban regulation (building with tower of 60m) is cut with the grid of 10x10m. Further on given program is distributed: public program in the base and housing on top.

Base is further cut into 3 volumes:

Courtesy of OFIS arhitekti

Strenia square host Library and Gallery; the third volume content is office program with internal patio garden. Cut of the volumes allow perforated plaza that is airy, fluid and allows pedestrian flows.

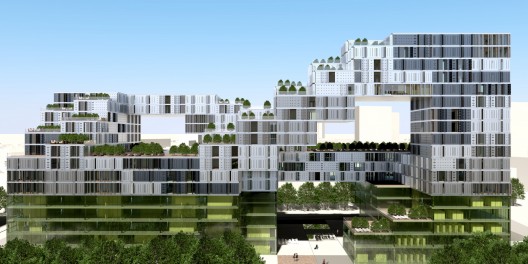

Top floors – the height of the tower gently slopes down in terraces and creates garden patches of 100m2 and offers extra quality space to residents with natural light, ventilation and green outer space.

LIBRARY AND GALLERY Library and gallery have internal connection with escalators or stairs. Accesses with elevators are separated for public and employees. Due to modularity it is easy to adapt the plan layout according to more detailed brief that will be elaborated in the future.

Courtesy of OFIS arhitekti

OFFICES Offices are gathered around internal park so all spaces get maximum of natural light and natural ventilation. There are accessible by four cores. The shape and distribution of cores allows flexible occupancy. One floor can be shared by different owners and organized into separate units. It can be also connected for larger companies – both horizontally within the same floor or vertically in different levels. Shape and layout of the building allows different organization of floor: ocean type shared offices, single separate offices for 1 or 2 persons, meeting and presentation rooms etc…

VERTICAL CORES There are 6 vertical cores distributed according to the program accessibility and fire protection rules. Each core includes 4 elevators, two for residents and two for public programs. Fire escape stairs are shared by all programs. Accesses to stairs and elevators are controlled so it is strictly controlled that uninvited guests can not enter to residential area or to business area. All elevators are accessible from level 0 and from underground. In upper levels from each core 2 of the elevators are opened in residential area and 2 in business area. Elevator entrances can also adapt differently according to the needs or be controlled with controlled card access. Business and public entrances to elevators in level 0 are from reception halls/lobbies. Entrances to apartment’s elevators are separated through residential entrance.

Courtesy of OFIS arhitekti

APARTMENTS On top of the base there are 13 floors of apartments. Smaller apartment units are in lower 3 levels. Rooftop of this part is extending green roof that creates partly shared garden and partly private terraces.

Courtesy of OFIS arhitekti

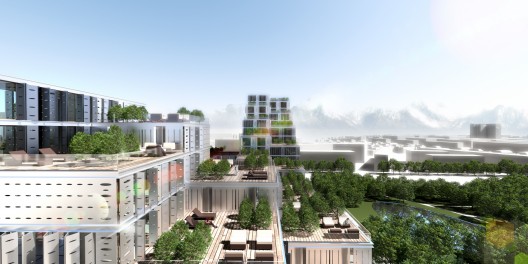

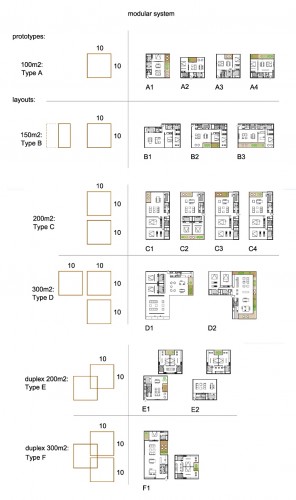

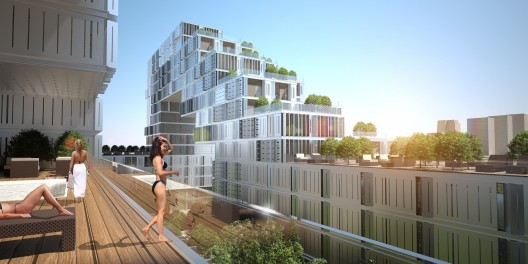

Shared garden is connected with wellness, fitness, spa and pool and creates external exercise area. Access to this park is limited for residences and fitness visitors only. 10 top floors are rising in terraces so larger apartments gain quality of house with a garden. Here different type and sizes of apartments can be organized. Since the overall plan is modular grid apartment units can divide and merge. Apartments are flexible and allow different arrangements.

They all have external spaces (loggia, terrace or garden), large panoramic windows with external shading and stylish arrangement of spaces. Apartments have large living areas, large bedrooms with en-suite bathrooms.

Since volumes are stepping in terraces most apartments are in corner so they have windows and opened views to 2 or even 3 sides. They get maximum sun light, views and connection to its own garden. Apartments have quality of villas with private gardens with extra comfort; they are in the new city centre, they have direct access from the garage, direct access to wellness, services and shops positioned in the lower floors and since they are lifted – they gain spectacular views, sunlight and feeling of security. We propose top floor to host public program: restaurant, fitness/spa – but it can be also easily adapted into apartments.

Courtesy of OFIS arhitekti

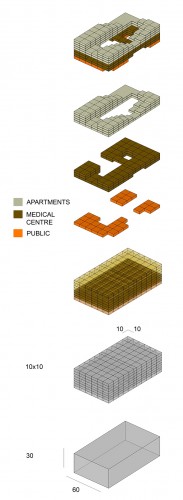

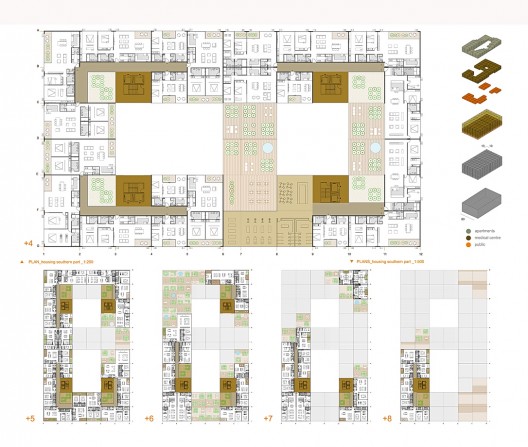

CONCEPT – PART SOUTH The southern part follows similar concept with base and roof-terraces that reaches up to 27m. Ground-floor has public programs (shop, medical shop, pharmacy) end entrance lobby-s. Three floors of the base are medical centre. Spaces are flexible and distributed in a way that allow different organization: space can be rented to various doctors, with the use of common services and facilities. The clinic can be organized as a multidisciplinary selection of various day services: sports medicine, eye surgery, physiotherapists, plastic surgery, dentistry, etc. The clinic also includes operating theatre and post-operative intensive care unit. Top 4 floors are apartments. Smaller units are in lower floors. Most of the units have terraces-gardens and are opened on 2 or 3 sides. Shape and terraces are positioned in a way that offer opened views, maximum sun and daylight and natural ventilation. Level 0 has plaza with combination of intern al garden. It is well ventilated, light and creates pedestrian flows and easy access to all premises.

Courtesy of OFIS arhitekti

GARAGE AND TRAFFIC SOLUTION: Both volumes have underground in 2 levels that are connected under the street. Here parking, storages and technical spaces are organized. There are two entrance/exit ramps to the garage, one along southern and other along western part. Rams are on the roads that are suggested by IPN. All vertical cores with staircases and elevators are accessible from the garage. Entrances for visitors, employees and residences can be controlled by card. There is also extra public access possible to the Strenia square. Garage is planned in a way that allows phase development and building in 2 parts (west and south).

Courtesy of OFIS arhitekti

Garage: Brutto surface: 48.200 No. of parking spaces: 1650 No. of storages 222:

SUSTAINABILITY – LEED “GOLD” CERTIFIED Basic principles of sustainability are generating volume of the building.

Courtesy of OFIS arhitekti

Apartments and terraces: Terraces are creating apartments with maximum daylight, sunlight and cross natural ventilation. Each apartment has openings to 2 or 3 sides and external shading device, which gives most sufficient sun-protection and creates privacy. Large terraces with rich vegetation will create cool effect in summer. They will have removable textile roof shading for shadow and rain protection. Smaller apartment units in lower floors have loggias that create similar effect in smaller scale. Also these units have external shading.

Offices: Offices and medical centre are generated around internal courtyard/park. That provides spaces that have natural light and natural cross ventilation and provide friendly and eco working environment. Plans are not deep. Distribution of vertical cores allows different arrangements of plans and flexibility.

Courtesy of OFIS arhitekti

External spaces: Plaza on level +0 is well ventilated, opened, with natural light and allows pedestrian flows and good orientation. It is combined with green and water features which creates cool and friendly environment. Green roofs, gardens and terraces produce direct contact to external environment to all; residents, employees and visitors and create friendly and green quality.

Compact volume and program mix Compact volume and program mix of living/working/service minimizes transport needs. Compact volume produces low energy consumptions and reduces energy waste. External shading and textile removable roofs above gardens produce maximum sun-protection.

Courtesy of OFIS arhitekti

Sufficient bruto/netto Netto selling/renting surface in relation to the brutto respects rationality and high – luxurious level that building has to achieve. Minimum number of vertical cores is planed in relation to the rules of fire-escape and good comfort. Staircases are shared between different users but can be controlled with card.

We propose bicycle storages, changing rooms, garage spaces for electrical and Smart cars. We propose 2 parking per flat, no more for keeping better environment. Vegetation that needs no extra watering will be chosen. We propose rain water collecting and re-usage and elements such as low-water usage toilets and showers. We propose photo-voltaic panels on some roofs and surfaces.

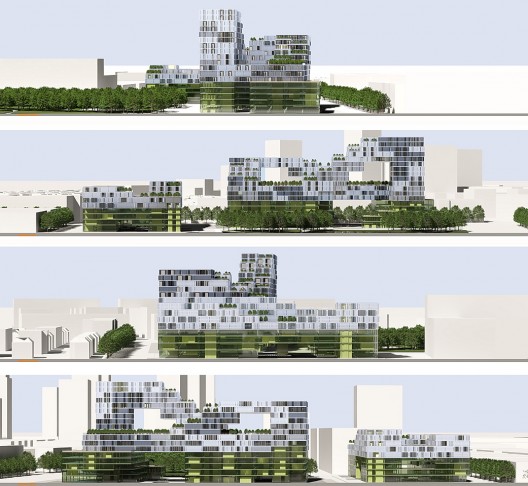

MATERIALS Since the volume creates unique form the façade materials can be simple. Base of the building has glazed façade – this is combination of transparent glass with internal shading. The glass is light colored with laminated metal mesh in between The facade raster is 1.00m and is modular for both – offices and apartments. The raster allows different organizations of walls behind the facade. Apartment’s façade have large panoramic sliding windows with external shading (silver alu perforated metal blinds). Textile removable roofs (tends) will cover the gardens.

Courtesy of OFIS arhitekti

Offices have double floor and suspended ceiling to achieve maximum flexibility of plan organization. Terraces have wooden floor, wood and natural stone is also planed in the apartments. Offices will have floor finishing in textile or wood.
