House in Macinhata / Nuno Brandao Costa

Sep 2010

Uploaded by Nico Saieh — Filed under: Houses ,Selected , Nuno Brandao Costa, Portugal

▼

Add this to My Bookmarks:

share by email

share by email

Architect: Nuno Brandao Costa
Location: Lugar da Quinta do Monte, Macinhata da Seixa, Oliveira de Azeméis, Portugal
Collaboration: André Eduardo Tavares, Joana Restivo, Inês Pimentel
Client: Dr. Jorge de Jesus Ribeiro
Foundations and Structures: Ana Isabel Vale (AB Projectos)
Hydraulic equipment and installations: Ana Isabel Vale (AB Projectos)
Electricity & Safety: Maria da Luz Santiago (RS associados)
Hvac: Raul Bessa (GET)
Project Area: 313 sqm
Project Year: 2005-2008
Photographs: Courtesy of Nuno Brandao Costa

The client wanted a house that would fulfil an old dream: to be in the living-room and watch the sea.

The land was high but not enough to get a glimpse of the water down there in the West.

plan -01

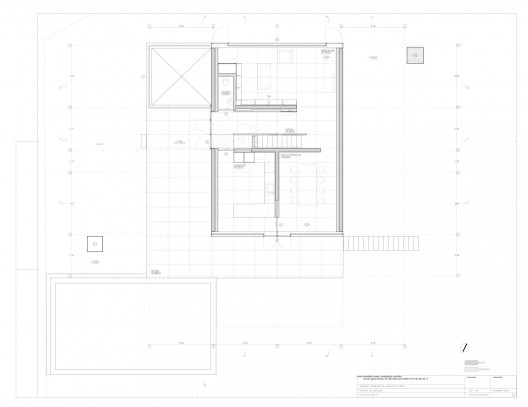

plan 00

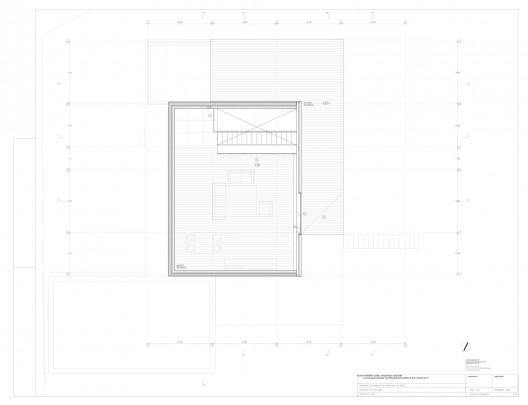

plan 01

Thus, the house kept rising volume after volume until it reached the living-room, opened and looking at the sea.

Everything was inverted:

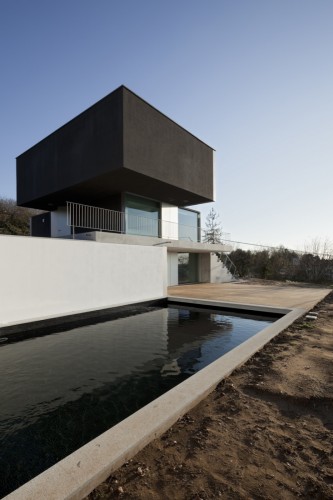

A granite platform simulates a Northern house, placed on a stone threshing floor, with only two storeys. The third storey is hidden under the slope to open itself over Oliveira city, the bedrooms and below them the pool.

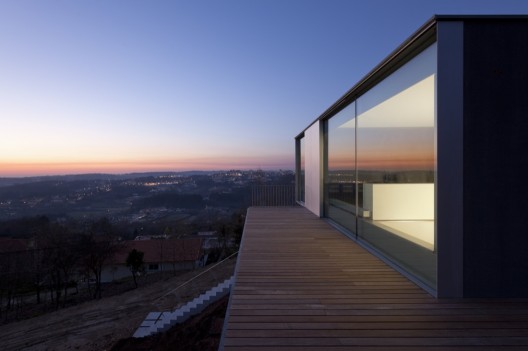

The windows, many and large, are opened to every direction so that the house faces everywhere.

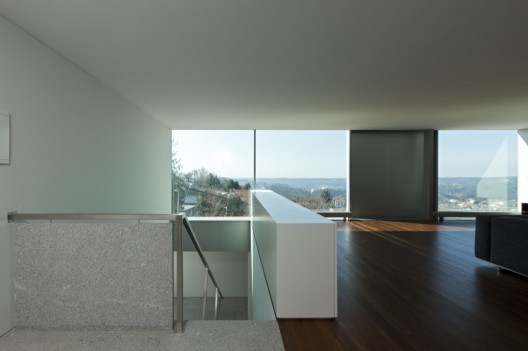

Upstairs the framework cuts out the westward landscape inside the living-room almost as a canvas painted only for this house, a dream once again drawn: “Ça c`est pour moi, le plus beau et le plus triste paysage du monde. C´est le même paysage de la page précédente, mais je lái dessiné une fois encore pour bien vous le montrer. C´est ici que le petit prince a apparu sur terre, puis disparu.” final excerpt of Le Petit Prince, Antoine Saint-Exupéry

: © Courtesy of Nuno Brandao Costa

: © Courtesy of Nuno Brandao Costa

: © Courtesy of Nuno Brandao Costa

: © Courtesy of Nuno Brandao Costa

: © Courtesy of Nuno Brandao Costa

: © Courtesy of Nuno Brandao Costa

: © Courtesy of Nuno Brandao Costa

: site plan

: plan -01

: plan 00

: plan 01

: roof plan

: east elevation

: north elevation

: west elevation

: south elevation

: section 01

: section 02

: section 03

: section 04

: section 05

: section 06

: section 07
