Cube House / Shinichi Ogawa & Associates

Aug 2010

Uploaded by Nico Saieh — Filed under: Houses ,Selected , Concrete, Japan, Shinichi Ogawa & Associates

▼

Add this to My Bookmarks:

share by email

share by email

Architects: Shinichi Ogawa & Associates / Urbanist Architect
Location: Kanagawa, Japan
Site area: 120.80 sqm
Building area: 72.25 sqm
Total floor area: 114.14 sqm
Project Year: 2009
Photographs: Courtesy of Shinichi Ogawa & Associates

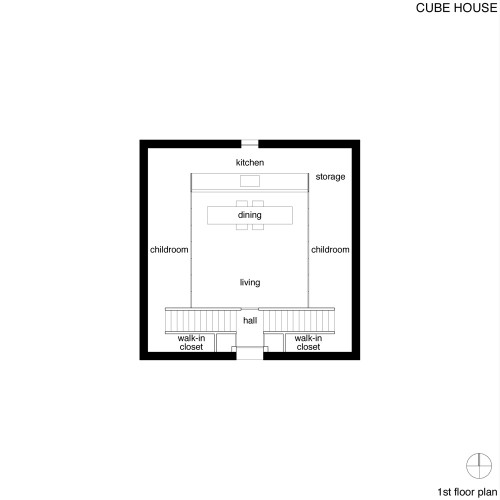

first floor plan

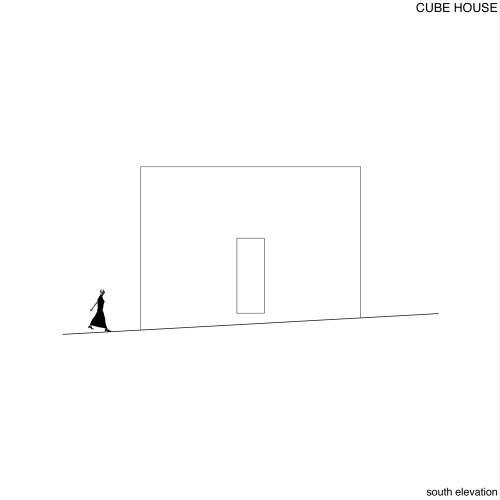

south elevation

The house is built on a 1.5M grid module in all XYZ directions.

This site is at a corner of the new residential area in Kawasaki-shi, Kanagawa, Japan.

The space is composed of a solid cube of 9.0M x 9.0M x 6.0M and a cubic void of 4.5M x 4.5M x 6.0M.

The hall, children’s room, kitchen are laid out to surround the living-dining room on the ground floor.

On the first floor, the bedroom, walk-in closet, bathroom, court, are are laid out to surround the double floor-height well which is 6.0M.

Each room of the interior space is connected through the void of the living room.

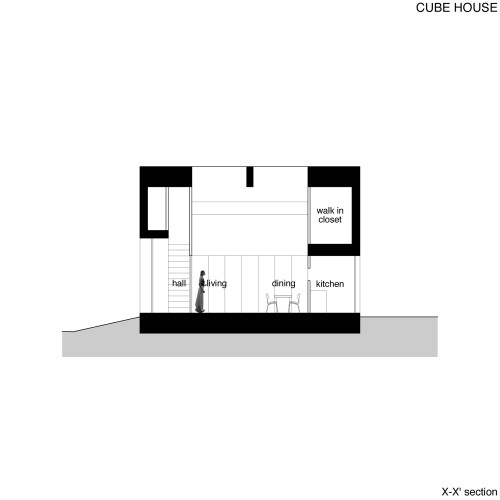

section 02

And the void cuts off the sky as a geometric form, letting the sunlight inside.

In this house, all events, the changes of the seasons, course of time, and human activity, are created through the void.

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: site plan

: first floor plan

: second floor plan

: south elevation

: west elevation

: section 01

: section 02

* Location to be used only as a reference. It could indicate city/country but not exact address.

Cite:
Saieh , Nico . "Cube House / Shinichi Ogawa & Associates" 12 Aug 2010. ArchDaily. Accessed 25 May 2012. <http://www.archdaily.com/72675>
