Guimarães Private Hospital / Pitagoras Arquitectos
© Luis Ferreira Alves / Pitágoras Arquitectos
Architect: Pitágoras Arquitectos
Location: Guimarães, Portugal
Principals: Fernando Seara de Sá, Raul Roque Figueiredo, Alexandre Coelho Lima, Manuel Vilhena Roque
Collaborators: Marlene Sousa, João Couto, Fernando Torres, Francisco Oliveira, Hélio Pinto, João Carvalho (3D modeling)
Project year: 2006-2009
Photographs: Luis Ferreira Alves & Pitágoras Arquitectos
Guimarães Private Hospital is currently located outside of the urban perimeter, near a set of recently developed facilities by the Guimarães City Council – Athletics Track and Swimming Pools Complex – and by individual entities – a new School for primary and secondary education. It is located alongside the chosen Creixomil meadow, made up of land that is part of RAN but in between this land and the sloping land, which characterises the Hospital construction area.

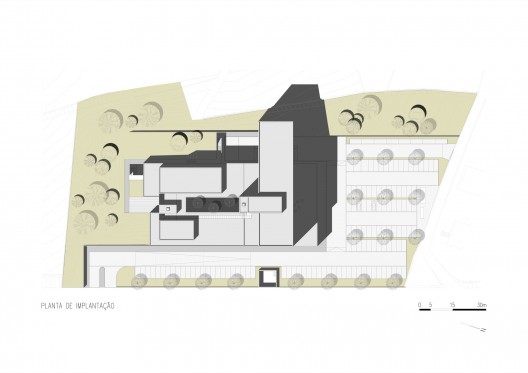

site plan

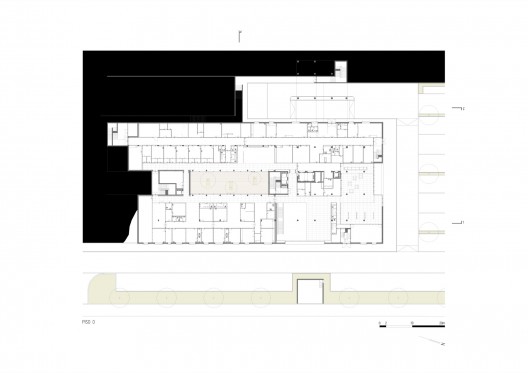

ground floor plan
The site criteria conditioned the building size and its distribution into two clearly perceptible units, one extensive unit with two floors, developed along the side of the larger land size, and on which overlaps a single and transversal unit which accommodates the internment areas. The aim was for internal and external circulation to be regulated with maximum clarity and that they also correspond to the principle of simplicity which shapes the whole project.
© Luis Ferreira Alves / Pitágoras Arquitectos
© Luis Ferreira Alves / Pitágoras Arquitectos

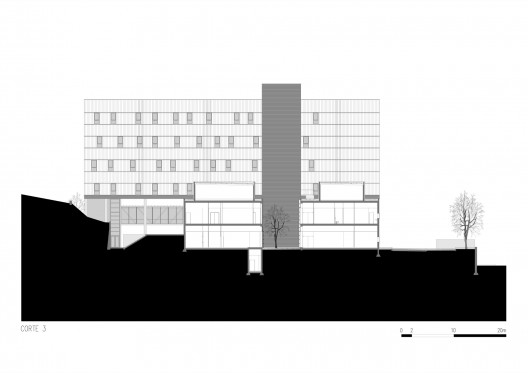

section 03

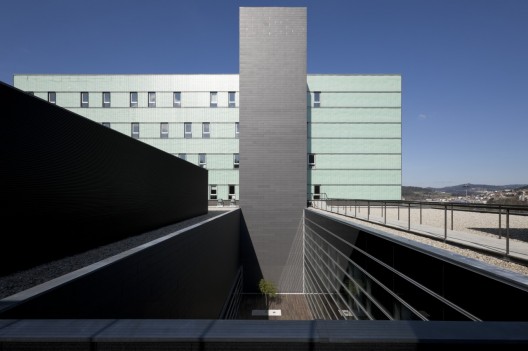

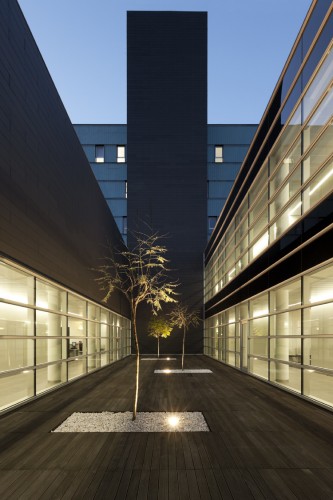

The blocks form a patio and are united by vertical and horizontal circulation components to which public horizontal circulation areas correspond schematically with direct natural lighting, and internal circulation areas for services, or mixed use, mainly artificially lit, which will allow the easy identification of the type of circulation by this simple coding throughout the whole building.
© Luis Ferreira Alves / Pitágoras Arquitectos

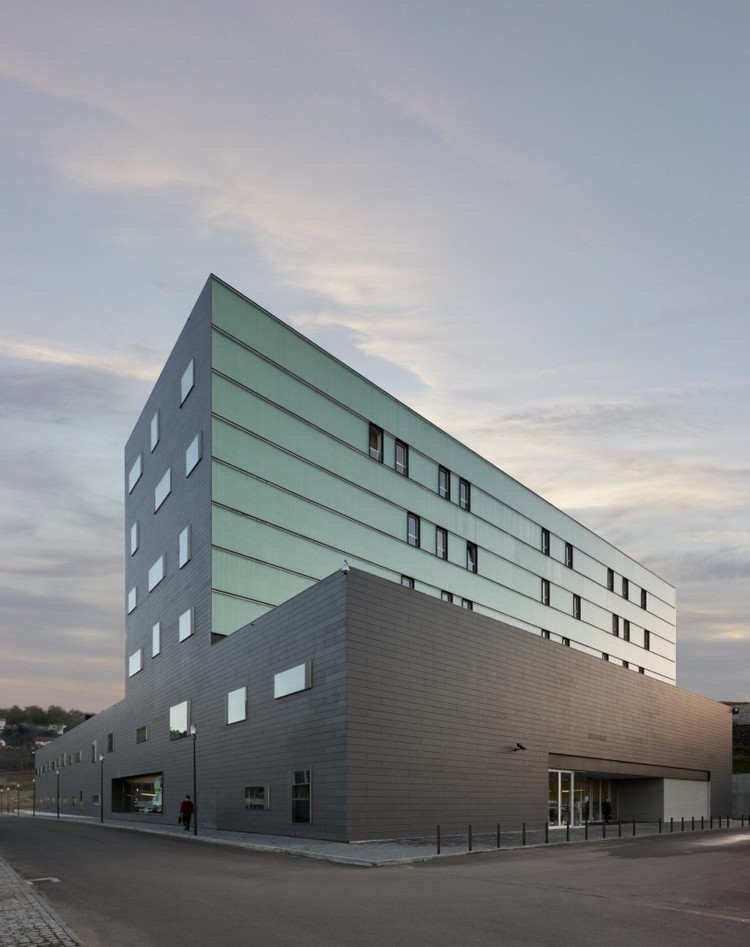

Another priority thought of is that the building should assume a language, scale and character which is eminently public and therefore unique and easily identifiable. This translates into a compact size and clear organisation, with obvious reflections in the covering materials and with a treatment and expression of façades which contributes to that objective – making the Guimarães Private Hospital an individual building, and transforming it into an urban icon.
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- © Luis Ferreira Alves / Pitágoras Arquitectos
-
- site plan
-
- basement floor plan
-
- ground floor plan
-
- first floor plan
-
- second, third & fourth floor plan
-
- fifth floor plan
-
- east elevation
-
- north elevation
-
- west elevation
-
- south elevation
-
- section 01
-
- section 02
-
- section 03
-
- details
