Lompreta Nolte Arquitetos Proposal for the Environment Museum Annex Competition, Rio de Janeiro

© Lompreta Nolte Arquitetos - Daniel Feldman and Elizabeth Añaños

Earlier this week we presented you an interesting proposal for the Environment Museum Annex Competition and now we received an honorable mention winner, from Lompreta Nolte Arquitetos - Daniel Feldman and Elizabeth Añaños.

The Botanical Garden, one of the oldest institutions in all , is a space of great relevance for the city of . With around 600 thousand visitants each year, it is an important touristic spot, orientated to environmental and scientific education as well as leisure, and recently also cultural program.

The “Cultural Complex” at the entrance of the Botanical Garden has shown an immense growth of events, and the Environmental Museum is supposed to be the next and one of the most important elements of the Complex.  Thus the project for the Museum Annex is mainly a project about integration –  integration of the Museum into the existing facilities and in the environment of the Botanical Garden.

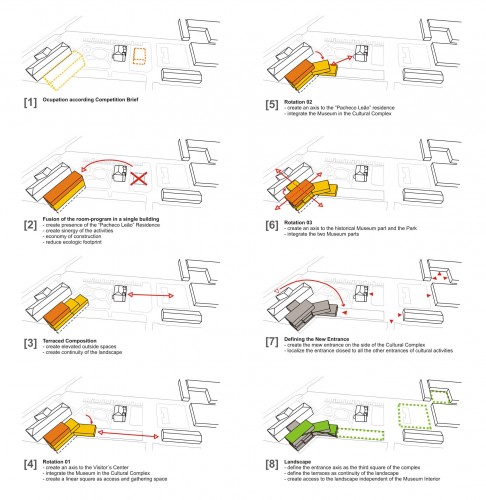

diagram

INTEGRATION

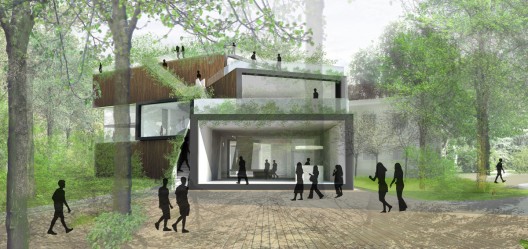

The center point of the “Cultural Complex” is localized on the square in front of the visitor´s center (16th century construction, imperator´s residence) and serves as the main access to the Park as well to all the cultural installations. The project for the Museum proposes a complete inversion of the existing internal organization in order to enter it from the square side, offering a new linear entrance square and thus connecting it with the visitor´s center and the cultural complex.

The project proposes the fusion of the room-program in a single construction. In that way liberates the areas around the center square and valorizes the historical context.

© Lompreta Nolte Arquitetos - Daniel Feldman and Elizabeth Añaños

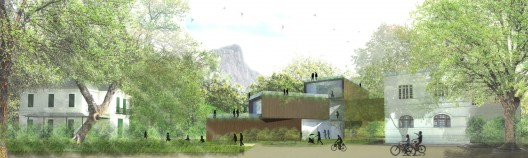

The building consists in a stack of wood-boxes, which are orientated to the main buildings and views of the micro-urban context. Visual axis and terraces form the principal elements of the volumetric composition. The axis of the linear entrance square finds a continuation on top of the stacked wood-boxes creating a landscape in different levels, all connected with the Museum interior.

© Lompreta Nolte Arquitetos - Daniel Feldman and Elizabeth Añaños

INTERIOR SPACE

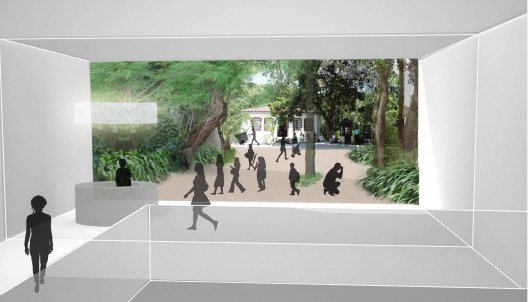

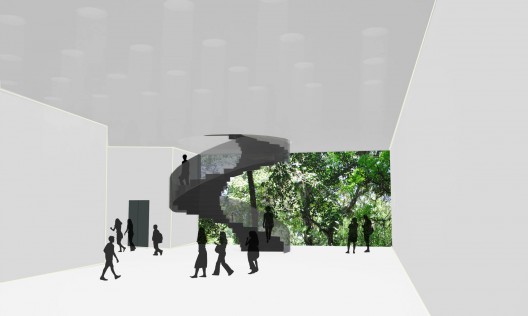

With the new entrance the Museum receives a central access to all Museum Facilities, such as the exhibitions (permanent and temporary) and auditory with restricted access, as also the free spaces like foyer, café, shop and terraces. These rather public spaces are directly connected to the terraces, which form a continuous landscape with its very special views.

The exhibitions are organized in order to offer flexible circuits connecting the historical and the new part of the Museum. The external spaces around the historical building become outdoor exhibition areas with restricted access amplifying the Museum area.

© Lompreta Nolte Arquitetos - Daniel Feldman and Elizabeth Añaños

SUSTAINABILTY / ENERGY EFFICIENCY

The Museum Annex is composed by stacked boxes with clearly defined relation between isolated facades and openings. Its concept for the public spaces is based on cross ventilation, which together with shadowing is the most efficient cooling method in hot humid climate. The rather closed exhibition spaces have to use air condition, working with geothermic pre-cooling of the external air.

Green roofs and wood facades provide materials with low absorption rates on order to prevent heat island effects on the building.
Reuse of rainwater and onsite energy production are not only parts of the project, but especially part of the exposition. Apparent installation have the educational effect to explain strategies of energy efficiency to the visitors, including it in environmental education.

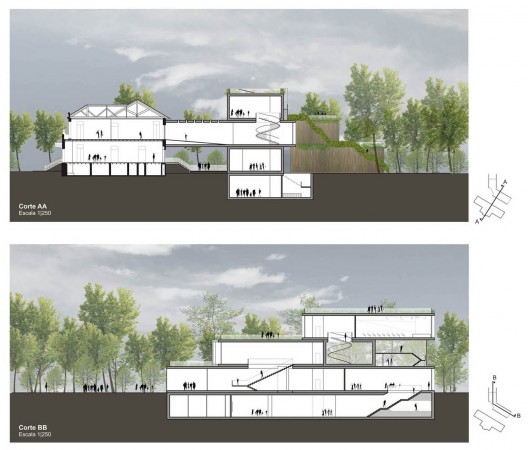

Sections

ECOSYSTEM

Within the intense bioma of the Tropical Coast Forest “Mata Atlântica”, the insertion of a building can be compared to a formation of rocks, a solid in nature. Understanding the building in that form, it is a space which shall naturally be occupied by “rupicola” vegetation, a local vegetation type, which is dominant on local rocky formation (including the sugar loaf). The sequence of terraces gives space to that local vegetation, and offer to the Museum the representation of a local vegetation specie not yet present in the Botanical Garden.
