Minimalist House / Shinichi Ogawa & Associates

Jul 2010

Uploaded by Nico Saieh — Filed under: Houses ,Selected , Concrete, Japan, Shinichi Ogawa & Associates

▼

Add this to My Bookmarks:

share by email

share by email

Architects: Shinichi Ogawa & Associates / Urbanist Architect
Location: Okinawa, Japan
Site area: 211.59 sqm
Building area: 102.22 sqm
Total floor area: 102.22 sqm
Project Year: 2009
Photographs: Courtesy of Shinichi Ogawa & Associates

This building is a court house for a couple in Itoman-shi, Okinawa, Japan.

The house is built on a 3M grid module in all XYZ directions, while it is composed of 4 vertical plates as exterior walls and 1 horizontal plate as a roof slab. A functional layout is created by inserting a void of 3M x 18M which is the court for the house and wall-like furniture into the concrete structure space which dimensions are 3.0M (3×1) high by 9.0M (3×3) wide and by 18.0M (3×6) long.

The space composition is characterized by the division of the house into two areas by a like-wall furniture.

The first area is composed of the living room, dining room, and bedroom as an interior space connecting with the exterior court in a linear arrangement, while the other space is composed of the kitchen, powder room, and study room in a succession.

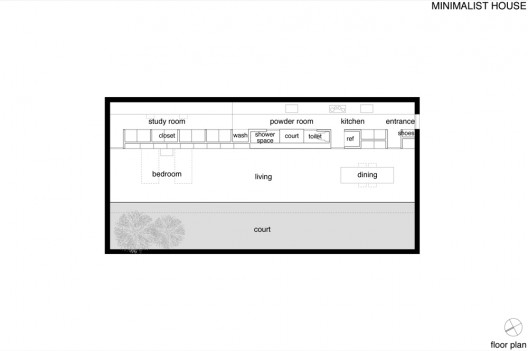

floor plan

The shower room, toilet, small court, and various storages are laid out in this wall-like unit, which also incorporates the services ; all spaces combined together create a lifestyle that minimize the division of the space as much as possible.

With regards of the natural light of Okinawa’s climate, the internal space connecting with the outside is designed with eaves in order to control the amount of direct sunlight coming inside the house.

The exterior wall is designed to facilitate maintenance by applying photocatalyst paint.

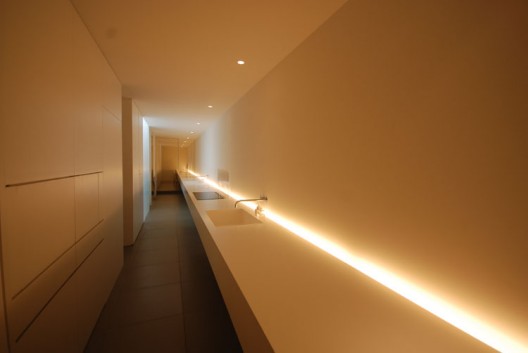

The functional counter unit incorporating the kitchen, powder room, and study room is made of integrally a solid surface “DuPont Corian”.
Consequently, this house is creating a habitation space that invites to a minimal and a flexible and various lifestyle.

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: © Courtesy of Shinichi Ogawa & Associates

: site plan

: floor plan

: elevation 01

: elevation 02

: section 01

: section 02
