Bosque Altozano Club House / Parque Humano

Jun 2010

Uploaded by Nico Saieh — Filed under: Institutional Architecture ,Public Facilities ,Selected , Mexico, Parque Humano, Stone

▼

Add this to My Bookmarks:

share by email

share by email

Architects: Parque Humano
Location: Morelia, Mexico
Project Team: Jorge Covarrubias + Benjamin Gonzalez Henze with Said Arias, Omar Martinez
Client: Bosque Altozano, CP Francisco Medina, Ing. Jorge Casar, Lic. Jose Carredano
Structure: Ing. Ricardo Camacho
Electrical: Islas Ingeniería
Interior Design: Parque Humano
Landscape Design: Parque Humano
Lighting Design: Parque Humano, Arten Luz, Javier Ten
General Contractor: Bosque Altozano
Project Area: 800 sqm
Project Year: 2007-2009
Photographs: Paul Rivera, ArchPhoto

The house occupies a natural ledge on a hillside looking towards the panoramic valley of Montaña Monarca, in Morelia, Mexico. The building has been conceived as a homogenous stone mass, hollowing out a huge opening that slopes from ceiling to floor, framing the hillside panorama. A sloped celosia grid meant to evoke renaissance perspective drawings was placed in the middle of the core in order to distort and emphasize the view.

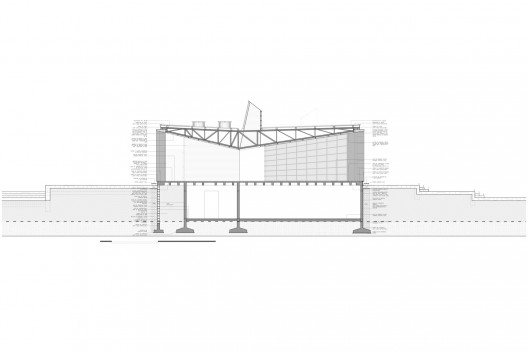

section

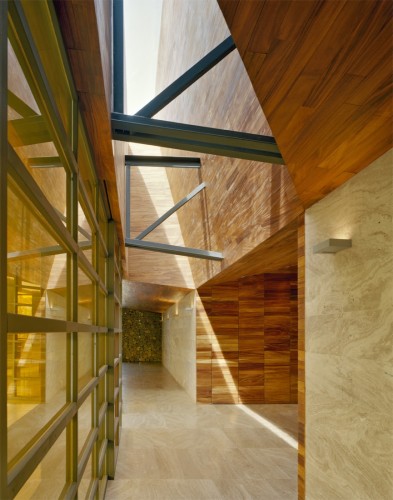

The amber light filtering through the artisanal stained glass placed on the celosia window blends with the colored space, generating a chromatic continuity that during the course of the day moves imperceptibly through an endless scale of oranges, red and yellows. Light also enters through two wooden skylights located in the middle of the room, helping to balance the colored light that comes from the window.

A few rich, tactile materials were used in combination with the light to create a strong ambiance.

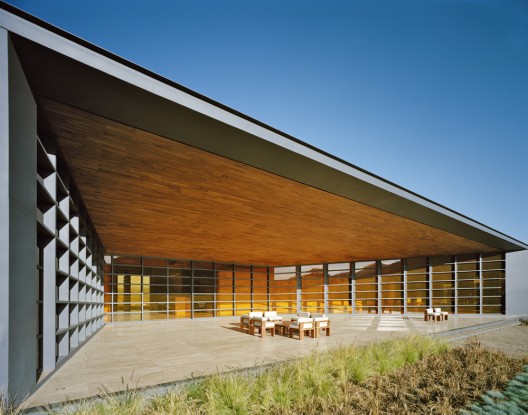

The program inside the house consists of a dining space, an open terrace, and a lounge area.

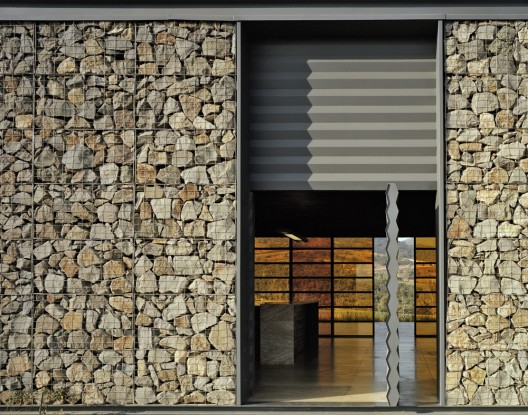

Apart from the timber on the roof, the house consists of a steel frame covered by local stone.

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: © Paul Rivera, ArchPhoto

: floor plan

: model

: section
