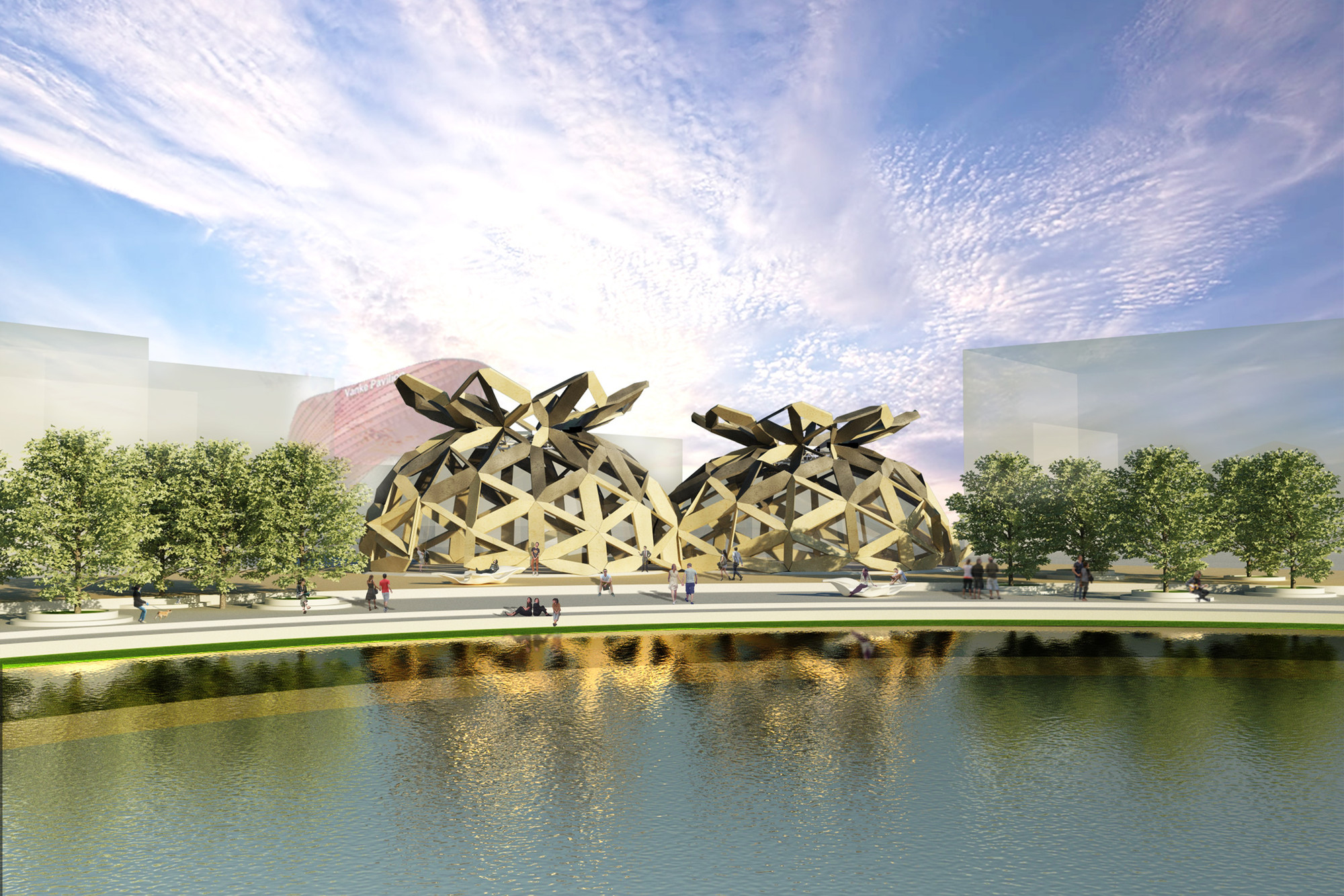

“The splendor of the Italian cities are beautifully represented by their domes,” says Miralles Tagliabue EMBT. Embracing this notion, EMBT has designed a wooden dome for COPAGRI, a confederation of agricultural producers that brings together hundreds of Italian farmers, to showcase their products at the 2015 Milan Expo.
“The design started from the observation of Italian landscapes, both natural and man-shaped,” said EMBT in a press release. “In our project the domes are not only representing the magnificence of the Italian past, but they also show us potential for the future lying in the construction of domes.”
From the architects: The Dome

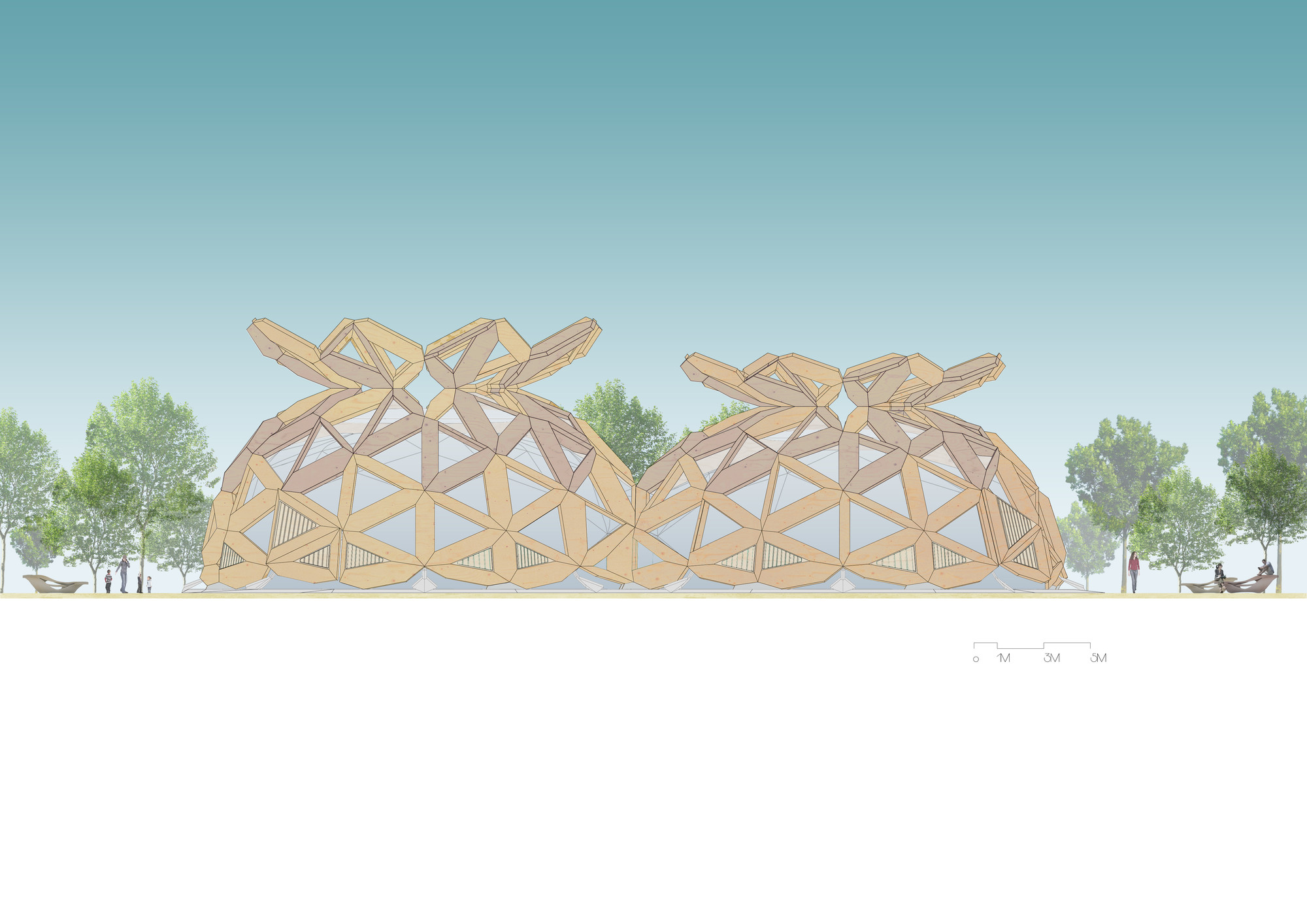

The project stems from the combination of two single domes of equal diameter, but different heights. The two domes together create a flexible and well-structured space that could be further subdivided in order to fit different needs of the internal spaces. The double dome consists of an “origami” of structural glulam elements, joined by steel plates.
The dome is conceived as a variation of the vast surrounding public space: for this reason, the structures present clear permeability and full congruence with the setting. The open nature of the structure is materialized in a reduced use of mechanical systems, in favor of natural lighting and natural ventilation.
The structure is composed of a big three-dimensional grid that gradually transforms in woven branches, as it grows to the open top of the dome. The structural elements become architectural ones, designing both the internal and the external facades as tree branches; the empty spots of the grid enhance air and light permeability, together with visual continuity between outside and inside.
The double dome is a prefabricated structure, made of spruce glulam with zinc-coated steel joints. Numerical control machines cut the structural elements, and they can be easily assembled and dismantled in agreement with COPAGRI’s need of reuse after the Expo, as expressed by the project competition requirements.
The upper part of the domes, called “the hat”, hosts the required building services both for the building itself and for the Lake Arena, consisting of lights, loudspeakers, antennas, and more.
An internal PVC sheet, suspended from the vertexes of the structure, covering the openings and avoiding water penetration, provides water resistance. The PVC seam follows the structural grid.
White translucent pressurized PVC cushions cover the internal space in correspondence of the central oculus: those cushions are not linked to the internal PVC sheet, guaranteeing natural ventilation through stack effect. Natural ventilation is indeed essential: in addition to the upper openings, all the perimeter of the dome is covered with a net fabric, whose zigzag pattern follows the structural grid and ensures ventilation.
The dome appears as a lighting element of the public square: the structure not only includes a self-lighting system, but also provides lighting for the surroundings: it sparkles like a glowing lantern and the light reflects on the Lake Arena water surface, amplifying the splendor of the area.
The spectacular translucent lamps, also shaped as a dome, are suspended from the PVC sheet tie-beams and dangle from the structure to light up all the elements of the internal set-up.

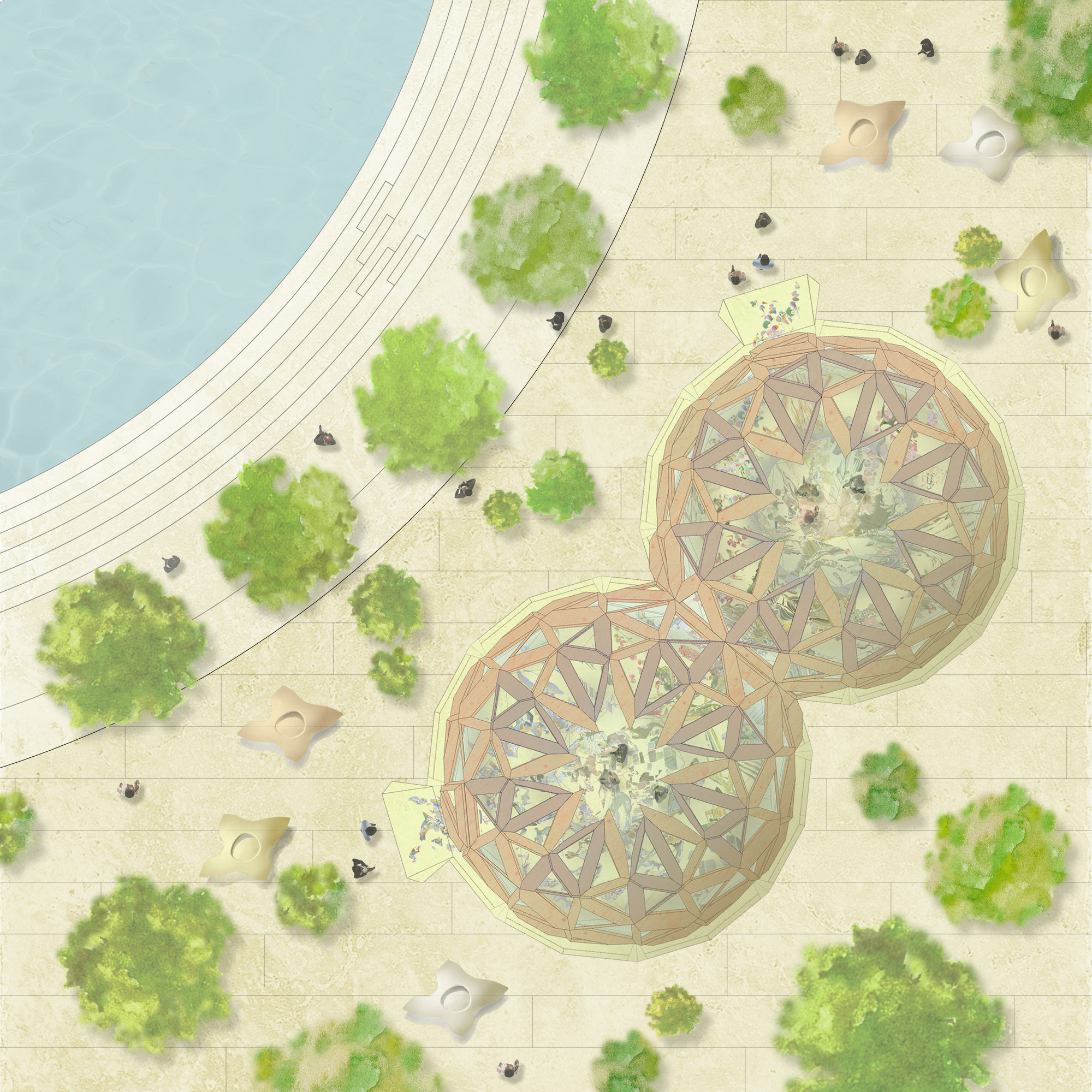

According to the exhibitors’ needs, the dome has two entrances, in order to optimize the visitors’ flows coming from Palazzo Italia, from the Cardo and from the shows around the Albero della Vita.

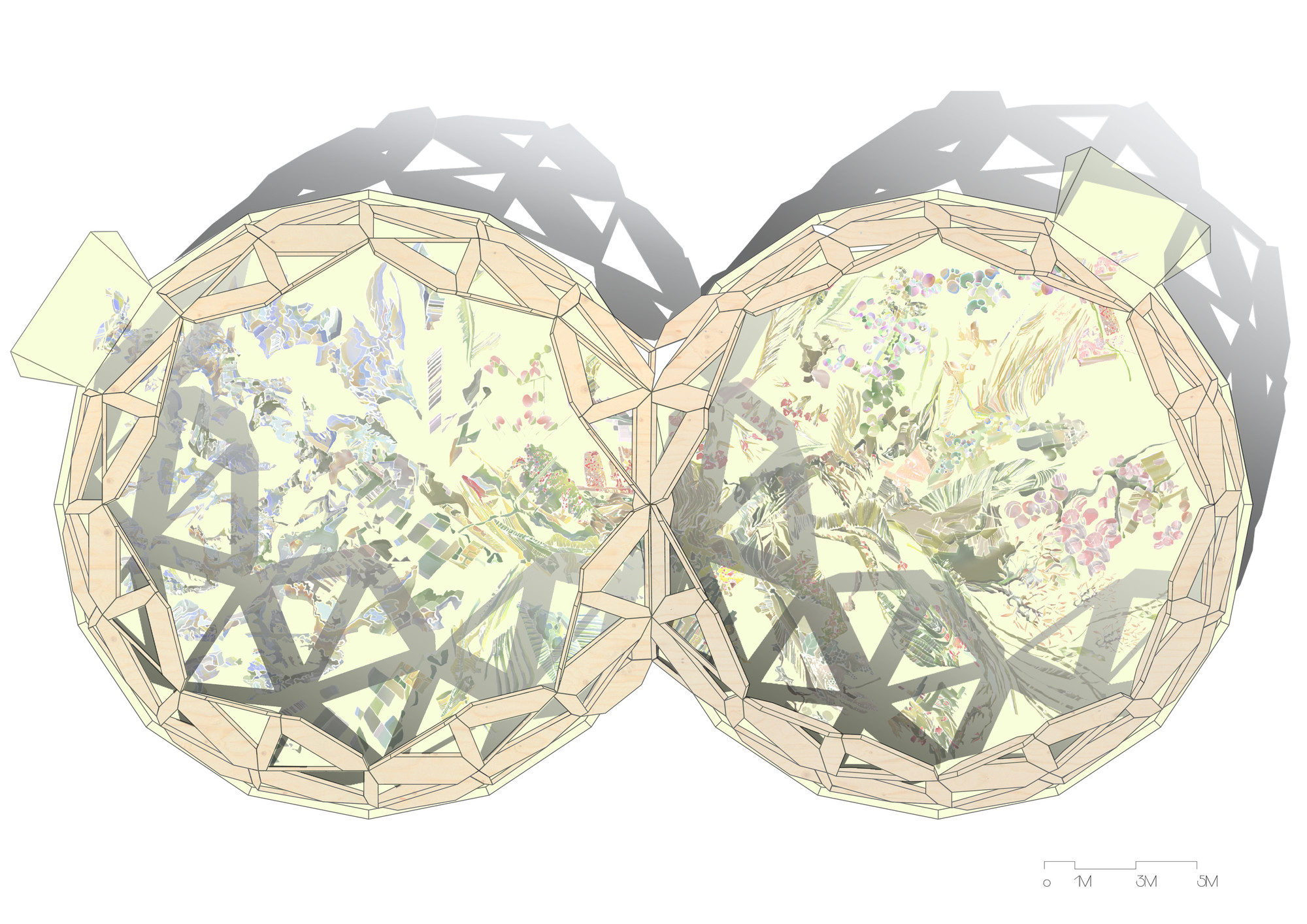

The internal layout is organized in areas. The small dome will host 15 huge triangular counters, recreating the typical Italian market atmosphere. Each counter will host, rotating every week, unique and natural products, narrated by their farmers. Under the bigger dome, a cylinder will house a small cooking demonstration room, a multi-sensorial exhibit and two spaces dedicated to biological pizza and ice-cream tasting.
The entrance doors are made of an aluminum frame and wooden panels: those doors will be opened in the morning and kept open during all day. These modular panels, identical to the structural ones, can be opened and therefore reveal their real nature. In the closing hours of the dome, they will recreate the completeness of the wooden grid. The foundation of the dome is a strip-footing ring made of reinforced concrete. The internal floor is made of high-use-resistant and easy-cleaning, colored synthetic resin.
At the end of the Expo, when all the buildings will be removed, these domes can be easily dismantled, transported and reassembled in symbolic Italian places to host a variety of functions. Therefore, they will make this part of the Expo even more sustainable, witnessing for a long time to come the universal message of Expo Milano 2015 "Feeding the Planet, Energy for Life".
Architects
Location
Milan, ItalyArchitect in Charge
Benedetta TagliabueProject Director
Makoto FukudaProject Coordinator
Valentina Nicol NorisDesign Team
Dirce Medina, Claudia Baralla, Claudia Manenti, Silvia Pirrera, Gabriele Rotelli, Andres Echevarria, Thomas Hostache, Carlo Cervellieri, Luca Amighetti, Ana De la Cuesta, Ana Zueras, Daniel CombarizaTechnical and Scientific Support
Matteo Ruta, Emilio Pizzi – Politecnico di Milano, ABC Department, Milano. Collaborators: Alessio Costantino Mirabella, Elena Seghezzi, Ivana CongiuStructural Design
Francesco Iorio – SIO Studio Iorio, BergamoFire Engineering
Giuseppe Amaro – GAE Engineering, TorinoDigital Design and Fabrication Consultancy
Pierpaolo Ruttico – INDEXLAB, Milano with Carlo BeltracchiMain Contractor / Wood Structure
Foresti Distribuzione Laterizi, Pralboino (BS)PVC Textile
Canobbio Textile Engineering, Castelnuovo Scrivia (Al)Lighting
Via BizzunoProject Year
2015Photographs
Courtesy of Miralles Tagliabue EMBTArea
560.0 m2Main Contractor (Wood Structure)
Foresti Distribuzione Laterizi, Pralboino (BS)
