La Campana House / Alejandro Dumay + Francisco Vergara

May 2010

Uploaded by Nico Saieh — Filed under: Houses ,Selected , Alejandro Dumay, Chile, Francisco Vergara, Wood

▼

Add this to My Bookmarks:

share by email

share by email

Architects: Alejandro Dumay Claro, Francisco Vergara Arthur
Location: Ocoa, V Región, Chile
Contractor: Guillermo Delgado
Site Area: 10,000 sqm
Project Area: 185 sqm / 75 sqm terrace = 222 sqm
Design Year: 2008
Construction Year: 2009
Photographs: Mauricio Fuentes

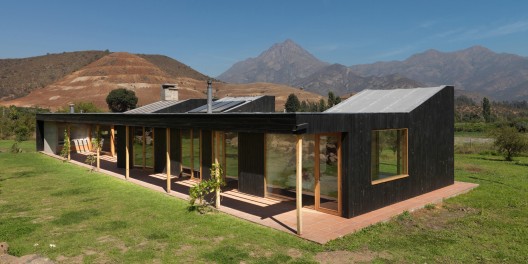

The house is located in a rural central valley of Chile, in an area of 10,000 sqm. with a striking visual presence of the Coast mountain and the Cerro La Campana.

context section

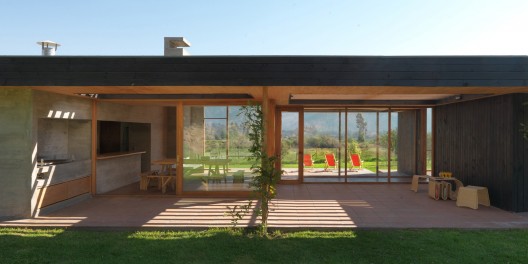

The assignment is to solve a housing that allows a strong link between indoor and outdoor spaces, including compounds that integrate the entire family and friends as much as possible, and a special concern for energy efficiency project.  The proposal to divide the public program audience (living, dining and kitchen) of the bedrooms, with a covered patio incorporating articulator access, circulation outside and barbecue.

East of the volume is located four bedrooms with capacity for 10 people in total, linked by a corridor outside, leaving the senior campuses (living, living room and master bedroom) with orientation towards the mountain range. In these areas extending the height of the space progressively from 2.4 mts. up to 3.5 meters., allowing a full view of the mountains and the surrounding environment.

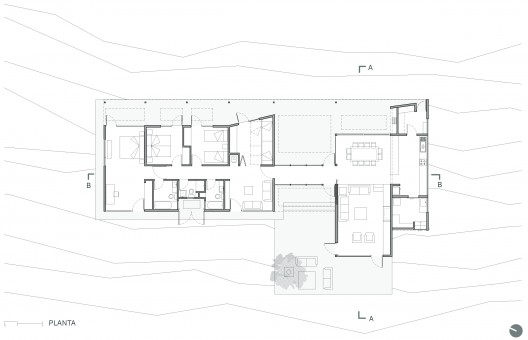

floor plan

Is defined to work with materials that provide a cleaner process in its preparation, such as wood, concrete and clay. In turn, they are considered passive thermal solutions, such as Trombe walls to the north, cross circulation of air, and shaded and double glazing and solar panels to heat water and photovoltaic panels future.

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: © Mauricio Fuentes

: floor plan

: context section

: east elevation

: north elevation

: south elevation

: west elevation

: section A

: section B

* Location to be used only as a reference. It could indicate city/country but not exact address.

Cite:
Saieh , Nico . "La Campana House / Alejandro Dumay + Francisco Vergara" 23 May 2010. ArchDaily. Accessed 09 Feb 2012. <http://www.archdaily.com/61078>
