Office Refurbishment / Alan Chu & Cristiano Kato
© Djan Chu
Architects: Alan Chu & Cristiano Kato
Location: São Paulo, SP, Brazil
Design team: Marco Zanotto
Site area: 600 sqm
Covered Area: 450 sqm
Project year: 2007
Completion: 2009
Photographs: Djan Chu
Originally, the property with 450 sqm of covered area was a house that has been adapted to be an administration office.
The area that will be most affected by the project is concentrated, apart from the façade, the top floor of the building, where the private area of the house used to be.

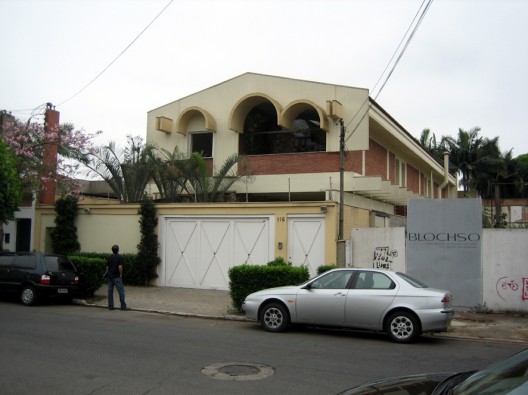

original building
This floor attracted attention due to the slanted capstones and existing zenithal lighting openings.
© Djan Chu

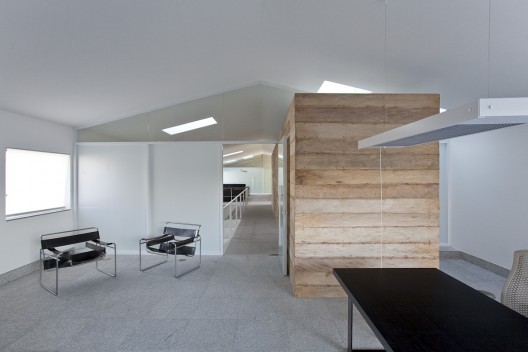

The idea was to take advantage of the quality of this space doing away with every wall so it becomes clearer and the effect of the horizontal and zenithal openings be better exploited.
The closed rooms were positioned at the ends of the empty space. At the South point, at the end of the corridor that follows the wooden span, is the presidency room and at the North end 2 boardrooms.

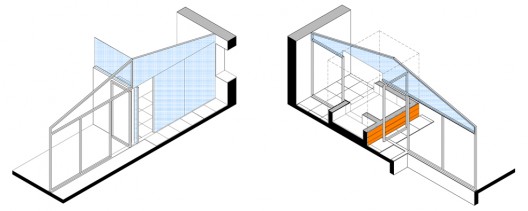

details 01
The closures are of white serigraphed glass up to 2.30 m high, and above it transparent glass next to the capstone to give continuity to the ceiling’s design.

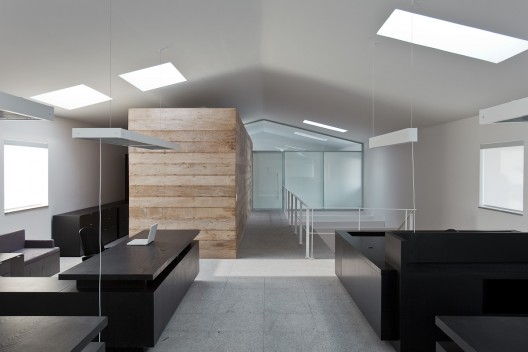

The location of the rooms allowed the middle of building to be only one space occupied by the access stairs, circulation passages, bathrooms and 4 work stations intended as individual territories.
© Djan Chu
Different to what happens in the rest of the house, the entire finishing of that floor was changed: grey granite on the floor, black furniture, demolition wood in the coffee area and bathrooms, white and transparent glass and white walls in order to create a calm, nearly monochromatic, atmosphere.
-
- © Djan Chu
-
- © Djan Chu
-
- © Djan Chu
-
- © Djan Chu
-
- © Djan Chu
-
- © Djan Chu
-
- © Djan Chu
-
- © Djan Chu
-
- © Djan Chu
-
- © Djan Chu
-
- © Djan Chu
-
- © Djan Chu
-
- © Djan Chu
-
- © Djan Chu
-
- original building
-
- original building
-
- original building
-
- details 01
-
- details 02
-
- details 03
-
- elevations
-
- floor plans
-
- section
-
- site plan
-
- workstation details
