Boca del Lobo Restaurant / Jose Maria Saez & Daniel Moreno
Architects: Jose Maria Sáez y Daniel Moreno
Location: La Mariscal, Quito, Ecuador
Collaborator: David Barragán, Arquitecto
Structural Engineer: Herberto Novillo
Interior Design: Ricardo Luque y Jorge Marcos
Contractor: Jaime Quinga
Clients: Ricardo Luque y Jorge Marcos
Project Area: 258 sqm
Project Year: 2008
Photographs: José María Sáez, Daniel Moreno, David Barragán y Gabriela Delgado
Thanks to Abitare who discovered this new project in Ecuador.

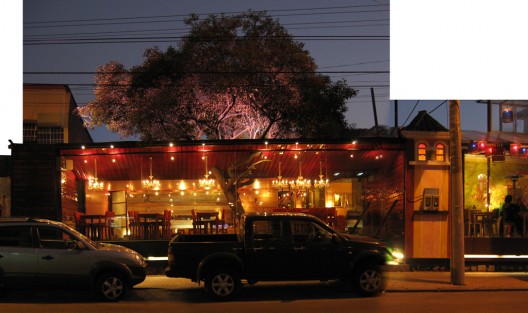

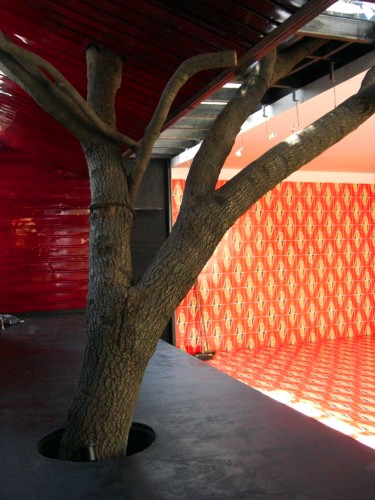

The intervention gives continuity to the restaurant and it is shown as a showcase to see and be seen. The floor works as the same time as platform, scenery and a place to sit. Outwards, a metal box frame the indoor activities that are crossed by an existing tree, a tree that becomes an object with an iconic presence. The project intensifies all the existing, as the tree, or recycles itself almost entirely.

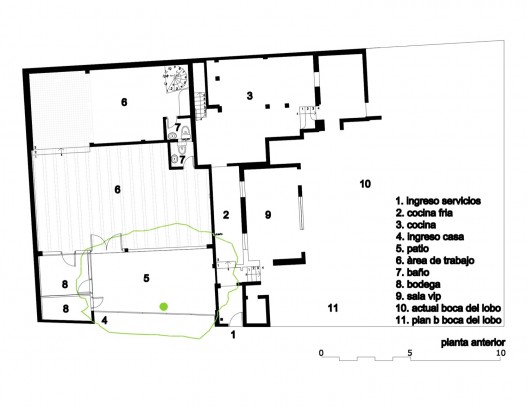

original floor plan

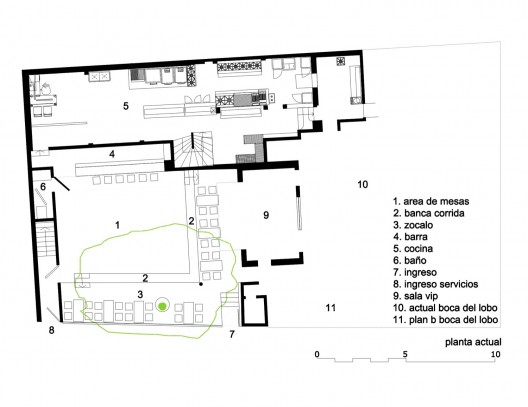

actual floor plan
The existing building walls are cut with a grinding machine and moved to become the new walls. The wooden roof rises up and prolongs itself strengthened by external tensors. The structure above the roof allows a large and continuous space in the inside just with a single support.
The strong personality of La Boca del Lobo restaurant is shown in the broadening. As a collage, three strips of different materials (red recycled metal, religious iconography tile, the bar made of undressed lumber) arranges a baroque scenery composed by people and objects designed by the clients themselves.
-
- under construction
-
- under construction
-
- under construction
-
- under construction
-
- under construction
-
- under construction
-
- original floor plan
-
- actual floor plan
-
- original section
-
- actual section
-
- concept diagram
-
- exploded axo
-
- front façade
-
- perspective
-
- structural isometric
