Center for Psychosocial Rehabilitation / Otxotorena Arquitectos

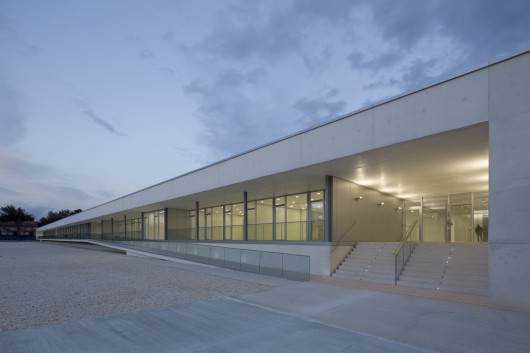

© Pedro Pegenaute

Architects: Otxotorena Arquitectos
Location: , Spain
Architect In Charge: Juan M. Otxotorena, José L. Camarasa
Collaborator Architects: Gloria Herrera, Jorge Ortega
Area: 16,657 sqm
Year: 2014
Photographs: Pedro Pegenaute

Quantity Surveyor: José Javier Segura
Structural Engineer: Javier Benlloch

From the architect. The project refers to a new building to house a Centre for Psychosocial Rehabilitation, in a plot located at the Centro Dr. Esquerdo complex, of the municipality of San Juan de Alicante.

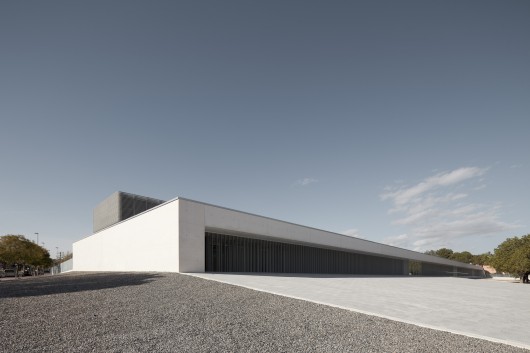

© Pedro Pegenaute

In accordance with the Competition technical specifications, the project meets the needs derived from the two entities concurring: on the one hand, a Residence for people with serious mental disorders that do not require hospitalization; on the other the Centre for Social Rehabilitation and Integration (CRIS) and a Day Centre for persons with serious mental disorders.

© Pedro Pegenaute

The building, therefore, provides an open and flexible residential community service for persons with chronic mental disorders that do not require hospitalization; the users, about 50, live in an internship. On the other hand, the Day Centre is a specialized and specific centre for persons with serious mental disorders, with a great deterioration of their functional capacities and of their social environment, where functional recovery programs and structured activities for the occupation of free time are carried out throughout the day, in an open regime, for a number of up to 25 people. The CRIS, for 50 users, is defined as a centre of specific and specialized services addressed to those persons with a chronic mental illness, with a significant deterioration of the functional capacities, where work programs suitable to the characteristics, needs and specific situation of the users are carried out.

© Pedro Pegenaute

The project, develops the winning proposal of the ideas competition, in which all the space and functional needs were grouped together in a single building, in keeping with the architectonic answer to the peculiarities of the plot, and the saving given the superposition of uses and optimization of the use of space, redundant in evident personnel, budget and surface economies.

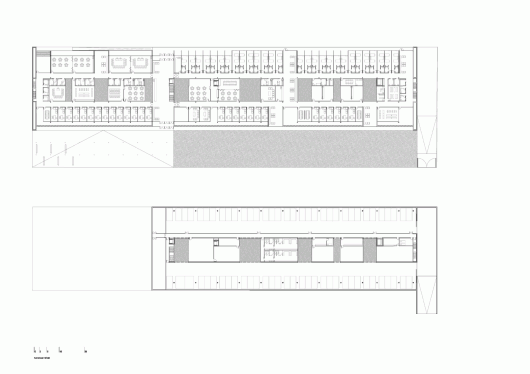

Ground Floor Plan

The scale of the site and the large and peripheral nature of the plot lead to the designing of one storey building, with a semi-basement for a car park and auxiliary rooms, linked to the freeing of a great diaphanous space designed for the creation of a large and well looked after garden.

© Pedro Pegenaute

The volume is designed as a large parallelepiped container, including and organizing the different areas of the programme, with single access and one shared garden recreational area. The relatively important separation of the building with regards to the access street gives importance to the single access to the building. The size of the plot allows extracting a scheme of three areas for different uses. In addition to those related to the exterior and to the garden, there is a wider central bay designed for social activities. A system of patios provides light for the inside of such a deep prism. And it allows achieving a feeling of intimacy, resolving important matters such as the control and movement of the staff, of the users or of the visitors, with the relevant physical and visual filters.

© Pedro Pegenaute

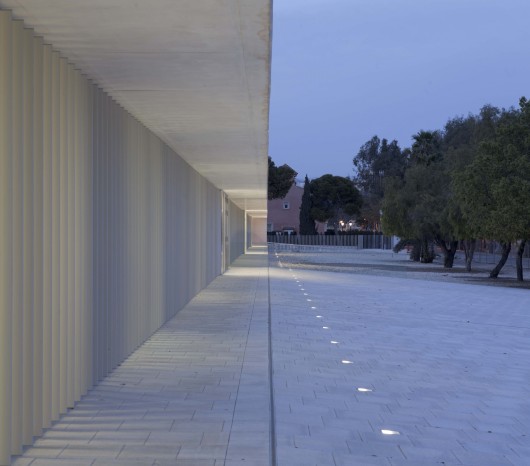

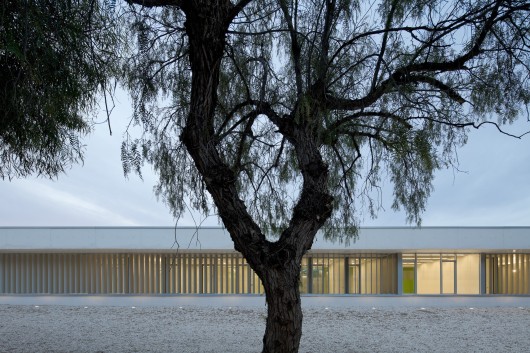

The scale of the public building can be highlighted by the considerable length of the facade. Further than its noticeable setting back, a system of adjustable vertical slating controls the sunlight, an objective which is delegated to the suitable trees in the inside facade. The slight difference in the level of the garden reinforces the privacy. In fact, it ceases to be a green area to become pleasant and ambitious oasis
