Led Action Façade, Digital Façade for Medialab Prado / Langarita Navarro Arquitectos

© Miguel de Guzman
© Miguel de Guzman

Architects: Langarita Navarro ArquitectosMaría Langarita, Víctor Navarro
Location: Medialab Prado, Madrid,
Collaborators: María Langarita, Víctor Navarro, Juan Palencia, Roberto Gonzalez
Client: Area de las Artes, Ayuntamiento de Madrid
General Contractor: Pecsa Teconsa U.T.E.
Engineers: Mecanismo
Lighting Consultant: Ca2l
Project Area: 144 sqm
Project Year: 2008
Construction Year: 2008-2009
Photographs: Miguel de Guzman

The city is created under emergency conditions: On the one hand, the obligation to update its infrastructures and, on the other hand, the need to maintain the same standards as in other cities, both of which require the continuous incorporation of new technologies to public spaces. If the now rare telephone booths were an example of this modernising in their day, today’s urban screens are so now. Once the economic factors were overcome, they were implemented all over the city following confused criteria linked to business performance and inertia inherited from previous examples, such as in Times Square in New York. These trends have non-commercial display devices to become a rare exception within the city’s digitalisation process. Apart from informative electronic signs, these experiences have been uncommon and always reduced to a temporary scale. This situation shows that although some private companies are interested in them as a support for their advertising purposes, few institutions have been able to profit from their ability to activate public spaces or their capacity to create local identity and identify open processes in the city.

© Miguel de Guzman
© Miguel de Guzman

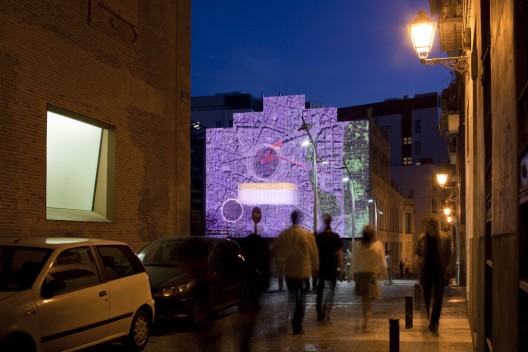

The digital façade of the Plaza de las Letras is the result of a commission from the Arts Area of the Madrid Town Council to provide the Medialab-Prado Centre with one of those non-commercial systems as a laboratory to make visible its researches regardin art, public spaces and new technologies. The new façade aims to become a virtual space for exchange and communication with both visitors and locals. It is an infrastructure designed as an active support capable of promoting social responsibility, information transmission, social interaction and play-oriented experiences.

© Miguel de Guzman
© Miguel de Guzman

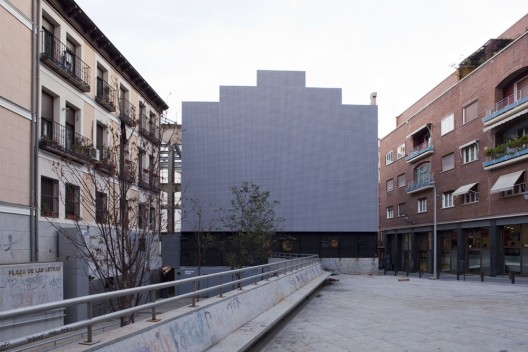

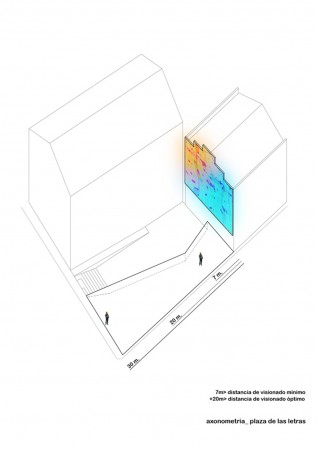

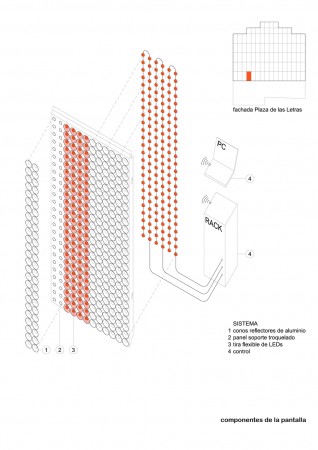

The Led Action Façade system is a model patented to produce large-format digital façades. The device consists of a regular matrix of nodes of RGB leds implemented by means of aluminium cones, the section of which has been designed to reflect the beam of light of emission sources and to improve the screen’s viewing. The application of the Led Action Façade in the staggered party wall of the old Serrería Belga, the future headquarters of the Medialab-Prado Centre, involves the creation of a viewing device covering 144m2 and made up by some 35,000 nodes. The system has allowed the configuration of a digital support of irregular geometry that is easily adaptable and has been prepared for the emission of both fixed and moving average resolution images. On the contrary, when the system is switched off, the set of cones and nodes become a vibrant surface activated by natural light that makes it look less similar to conventional urban screens and become a characteristic feature of the party wall.

Facade system
Facade system
