Anzac Hall / Denton Corker Marshall
© John Gollings
Architect: Denton Corker Marshall
Location: Canberra, Australia
Client: Australian War Memorial
Exhibition Designers: Freeman Ryan
Project area: 3,000 sqm
Project year: 2004
Photographs: John Gollings

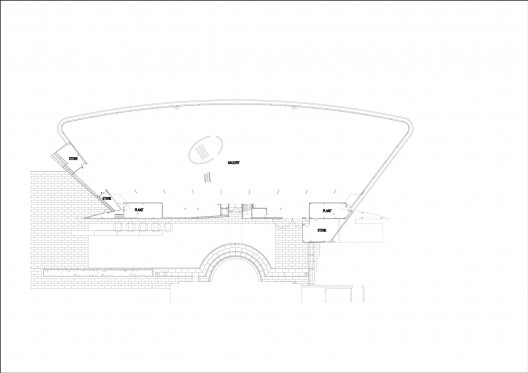

ground floor plan
ANZAC Hall extends the Australian War Memorial, providing 3,000 sqm of exhibition space to display the large technology relics in the Memorial’s collection, such as aircraft, vehicles, tanks and other ordnance.
© John Gollings

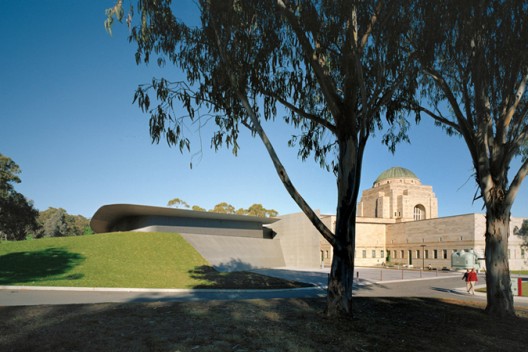

The Australian War Memorial is sited at one of Canberra’s most important locations: the main Land Axis that defines the city plan, and is therefore visually linked with Parliament House. To preserve the historic view from ANZAC Parade, ANZAC Hall is positioned to the rear of the Australian War Memorial and is recessed into the landscape below and behind a wall, thereby minimizing the impact on the existing landmark.
© John Gollings

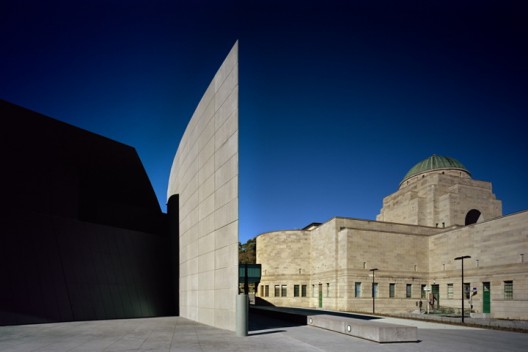

The fan-shaped building comprises a long solid concrete wall that tapers dramatically to a thin edge at each end. A dark thin curving roof cantilevers over the main body of the building, adopting the appearance of the wing of a military aircraft. With no direct public access through its exterior, ANZAC Hall maintains an enigmatic presence on the site and provides a neutral backdrop to the Memorial. Its palette of materials and colours is a fitting reminder of the military nature of the museum.
-
- © John Gollings
-
- © John Gollings
-
- © John Gollings
-
- © John Gollings
-
- © John Gollings
-
- ground floor plan
-
- elevation sketch
-
- perspective
