House Weinfelden / K_m Architektur

  • 26 May 2013
  • Featured Houses Selected Works
© Sabrina Scheja

Architects: K_m Architektur
Location: Weinfelden,
Year: 2012
Photographs: Sabrina Scheja

© Sabrina Scheja

The property which is located on the slope overlooking the town of Weinfelden. The house faces south and offers a sublime view of the surrounding area and the far mountains of Switzerland and Austria.

© Sabrina Scheja

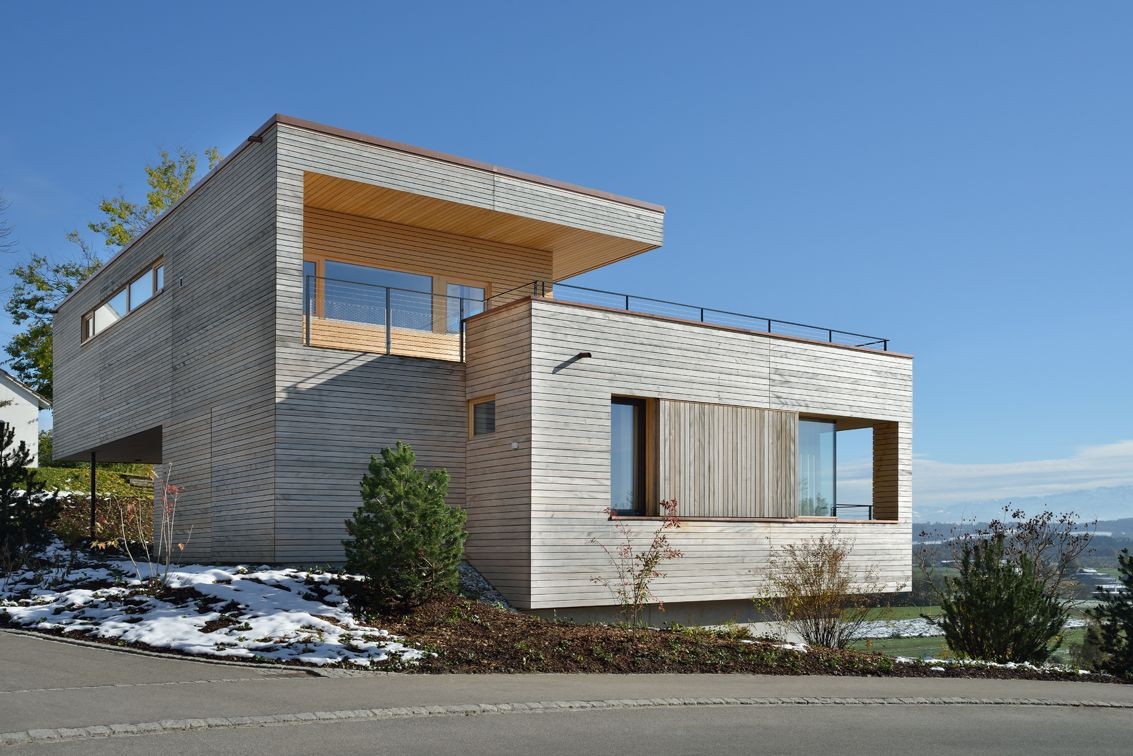

A floating design and the use of natural materials using concrete, glass and wood as structural material characterize the single family home. Besides the structural members that establish contact with the ground, the rest of the house is constructed out of wood.

© Sabrina Scheja

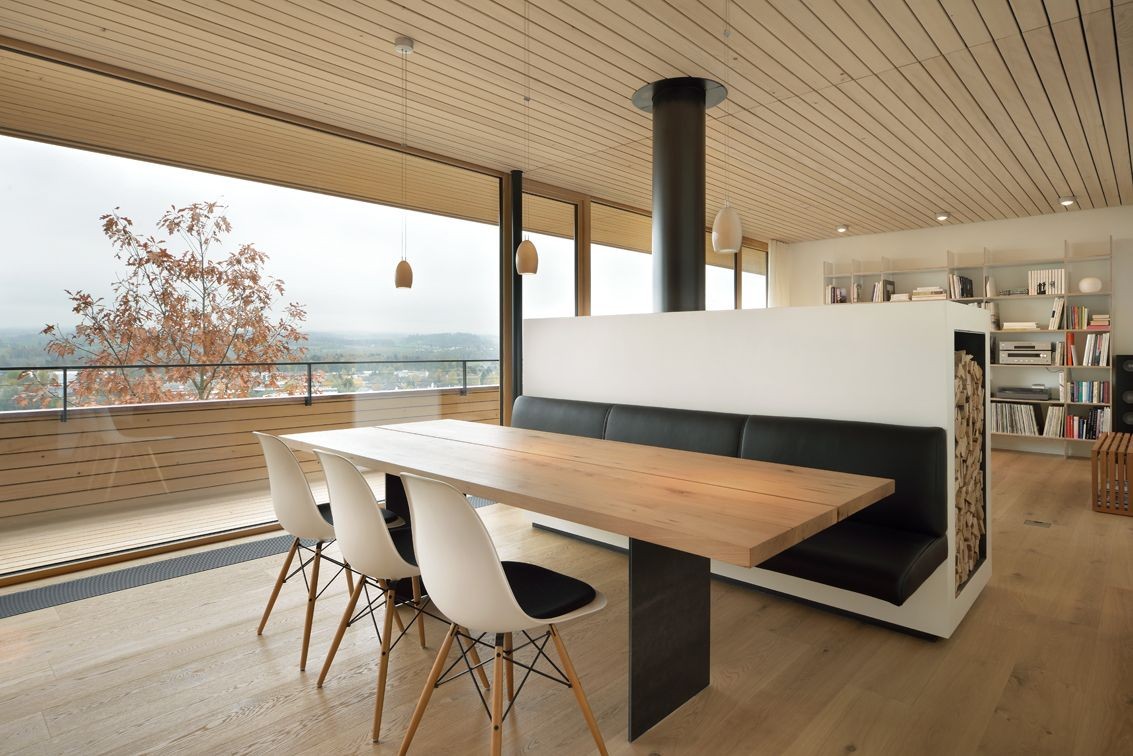

The different of the residential home are clearly divided by floors. The overhanging parts of the upper volume shelter the entrance area. The upper floor houses the private bedrooms of the parents with a great rooftop terrace. The ground floor contains a generous dining and living space with a stove acting as a room divider as well as two more bedrooms for the children. Positioned in front of the dining and living area, a roofed terrace encircles the building and links the interior and the exterior space through room-high glazing. The overhanging parts of the upper roof shelter the balcony and give a shade to the broad expanses of glazing, protecting the house from excessive solar grain in the summertime. In the winter, the sunshine becomes a passive source of energy. The back of the house appears to be more closed.

© Sabrina Scheja

The entire façade of the building is clad with natural white pine wood taken from the local region. Thanks to this wooden façade, which has already weathered to a light gray colour, the building fits in harmoniously with the surrounding area. The house was designed according to strict considerations of sustainability, involving the ecological quality of the materials and choices such as a solar hot-water-system, geo–thermal heating and a stove in the living area.

Cite: "House Weinfelden / K_m Architektur" 26 May 2013. ArchDaily. Accessed 02 Sep 2014. <>
