Elbbrücken Underground Station Winning Proposal / gmp Architekten

  • 04 May 2013
  • by
  • Infrastructure mini
Courtesy of

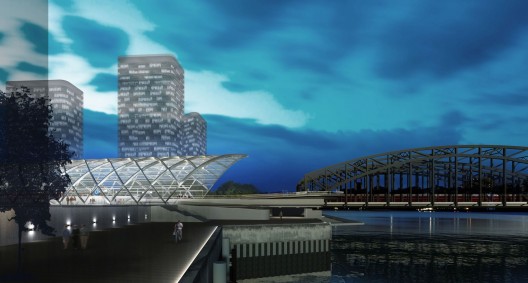

gmp Architekten just won the first prize in the competition for the design of the Elbbrücken Underground station. The genius loci of this over-ground station is determined by its position directly at the river Elbe, the future dense urban development, and by the historic Elbbrücken bridges with their conspicuous shallow steel arches. Characterized by simple and clearly structured access principles, the complex difference in levels between the terrain and the platforms is cleverly dealt with inside the building. More images and architects’ description after the break.

Courtesy of gmp Architekten

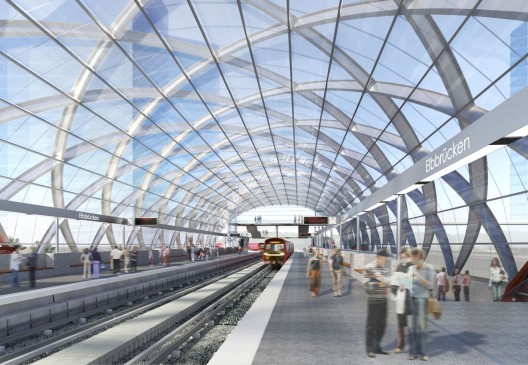

The station will be located in the future district of Elbbrücken, at the eastern end of ‘s Hafencity, and will, at least for the time being, be the end station of the recently opened U4 Underground line. In resonance to the bridges, an impressive steel structure consisting of curved steel girders supports the new station, creating a structure which newly interprets the dynamic design principles of the historic bridges. The external roof construction underscores the visual presence of the structure; the crosswise layout of the frames results in a grid-type system and stabilizes the steel arches.

Courtesy of gmp Architekten

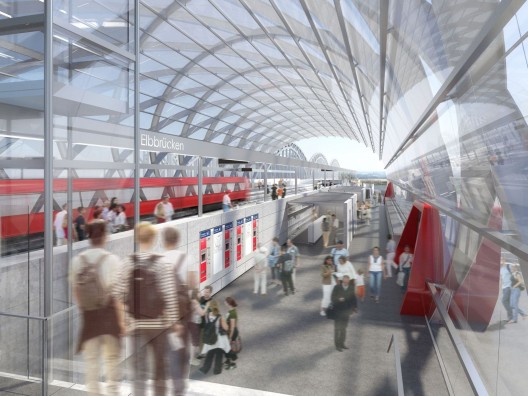

A glass façade suspended on the inside protects the building against the weather. The light-flooded station opens interesting vistas towards the local urban ‚Am Baakenhafen’ center, to the prominent tower blocks and the Elbe bridges.

Courtesy of gmp Architekten

A ribbon section for lights and media will stretch the entire length of the station between the platform level and the booking hall. The lighting will generally be subdued and unostentatious, underscoring the character of the structure.

Architects: gmp Architekten
Location:
Hamburg, Germany
Design: Volkwin Marg, Stephanie Jöbsch
Partner: Jürgen Hillmer
Project Management: Stephanie Jöbsch
Design Team: Achim Wangler, Bernd Kottsieper, Katja Mezger
Structural Design: schlaich bergermann and partners
Client: Hamburger Hochbahn AG
Stats: Competition winner
Year: 2013
