56 Dwellings in Salburúa / Patxi Cortazar

  • 18 Mar 2013
  • Housing Selected Works
© César San Millán

Architects: Patxi Cortazar
Location: Vitoria, Álava,
Project Architects: y José Manuel Simón
Technical Architects: Juan José Gracia Martín y Gonzalo Porres Salces
Client: VIVANTIS
Consulting: Zikotz S.A.
Area: 7,993 sqm
Year: 2012
Photographs: César San Millán

© César San Millán

The architectural proposal intends to implement a contemporary housing program, with two-bedroom apartment units and lofts with two floors as well as exterior private spaces.

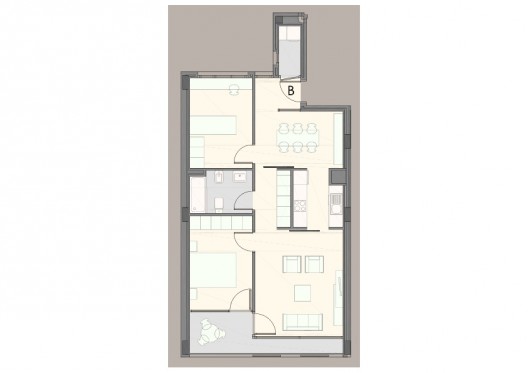

Loft – First Floor Plan

All the dwellings benefit from double orientation (east-west), cross ventilation, and protection from the sun in the west-facing living rooms through a terrace with exterior mobile aluminum elements.

© César San Millán

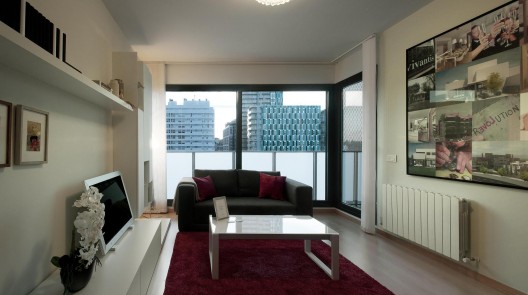

The typology of the dwellings in the upper floors allows for a single daytime space that includes the hall, dining room, living room and kitchen, as well as a small bathroom distributor. The single space is open towards both orientations, it is cross-ventilated and its functional flexibility is achieved through two sliding panels that alternatively close off the kitchen and the distributor.

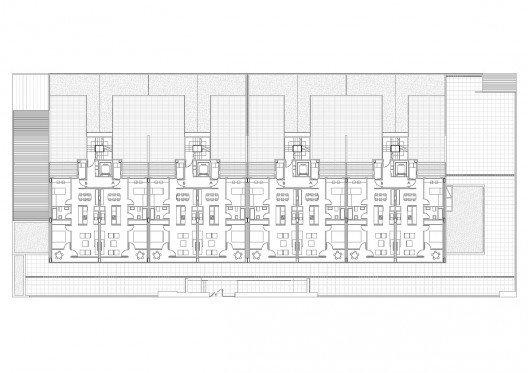

Plan

The bedrooms are connected to the daytime space and each is oriented towards either side of the building.

© César San Millán

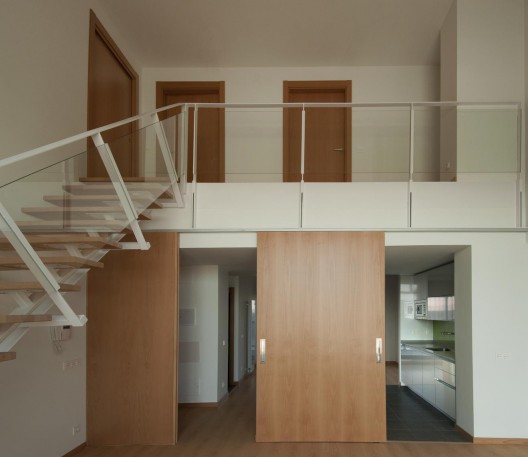

The lofts on the ground and first floors are accessed directly from the portal, and their topological structure follows identical criteria, with the particularity that the bedrooms are located on the first floor, allowing for an enclosed solarium on the ground floor and a small private garden.

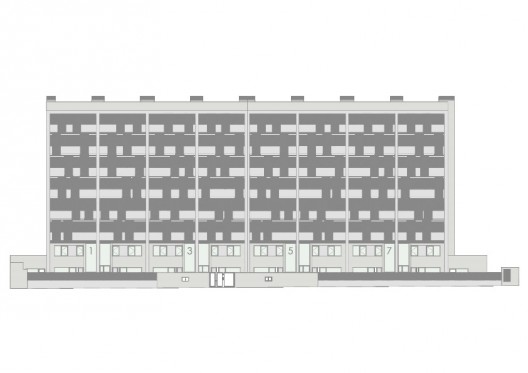

West Elevation

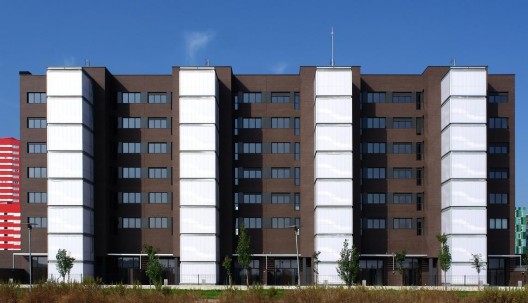

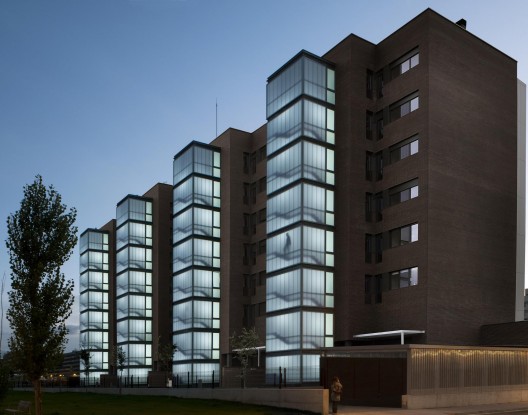

The exterior massing is a dark brick parallelepiped with its west façade perforated by terraces with solar protection mobile aluminum elements and glass railings. On the east façade, four staircases with a polycarbonate skin simulate great vertical luminaries during the afternoons.

© César San Millán

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "56 Dwellings in Salburúa / Patxi Cortazar" 18 Mar 2013. ArchDaily. Accessed 24 Oct 2014. <http://www.archdaily.com/?p=345378>
