Parque Goya Kindergarten / Magén Arquitectos

  • 18 Feb 2013
  • Educational Selected Works
© Pedro Pegenaute

Architects: Magén Arquitectos
Location: Calle La Fragua, , España
Collaborators: Beatriz Olona Poblet (architect), María Tejel (architect), Gabriel Fraj García (technical architect)
Area: 2082.0 sqm
Year: 2010
Photographs: Pedro Pegenaute, Jesús Granada

Engineering: Rafael González Barriada, José Sainz Sopeña
Contractor: Conavinsa SA. Grupo Praínsa
Client: Gobierno de Aragón
Budget: 2,435,489 €

© Pedro Pegenaute

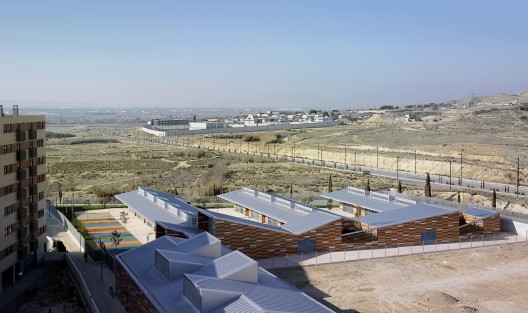

The location, an urban edge at the north of Zaragoza, and the will to make a connection between interior and outdoor spaces led to approach the project as as open organization of teaching linear elements colonizing the area with an extensive layout, grouping around the outdoor spaces open to the landscape and shaping play areas.

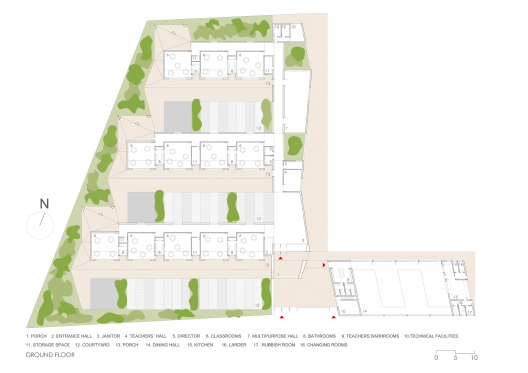

Ground Floor Plan

The project approach also responds to the condition of very tight construction time (4 months) which involved the election of building solutions based on simplicity and quickness of execution.

© Jesús Granada

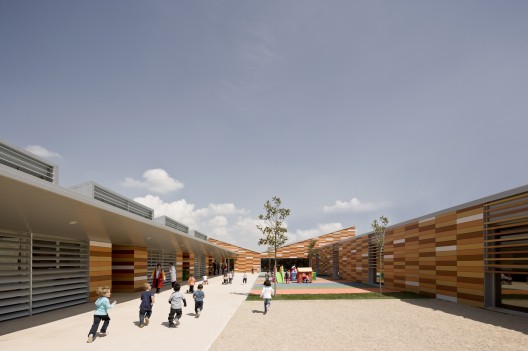

The program defined by the Government of Aragon, which includes 12 classrooms, dining-hall and complementary spaces, breaks into an open layout that allows it to make a perceivable environment for children and ensure the lighting and natural ventilation in all spaces.

© Pedro Pegenaute

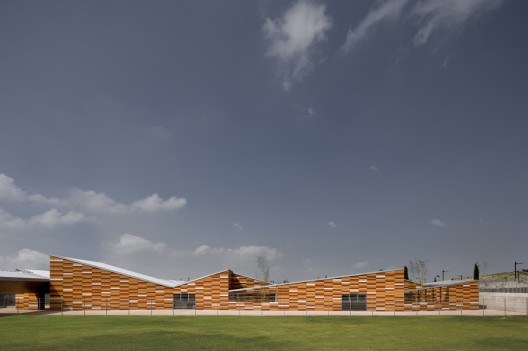

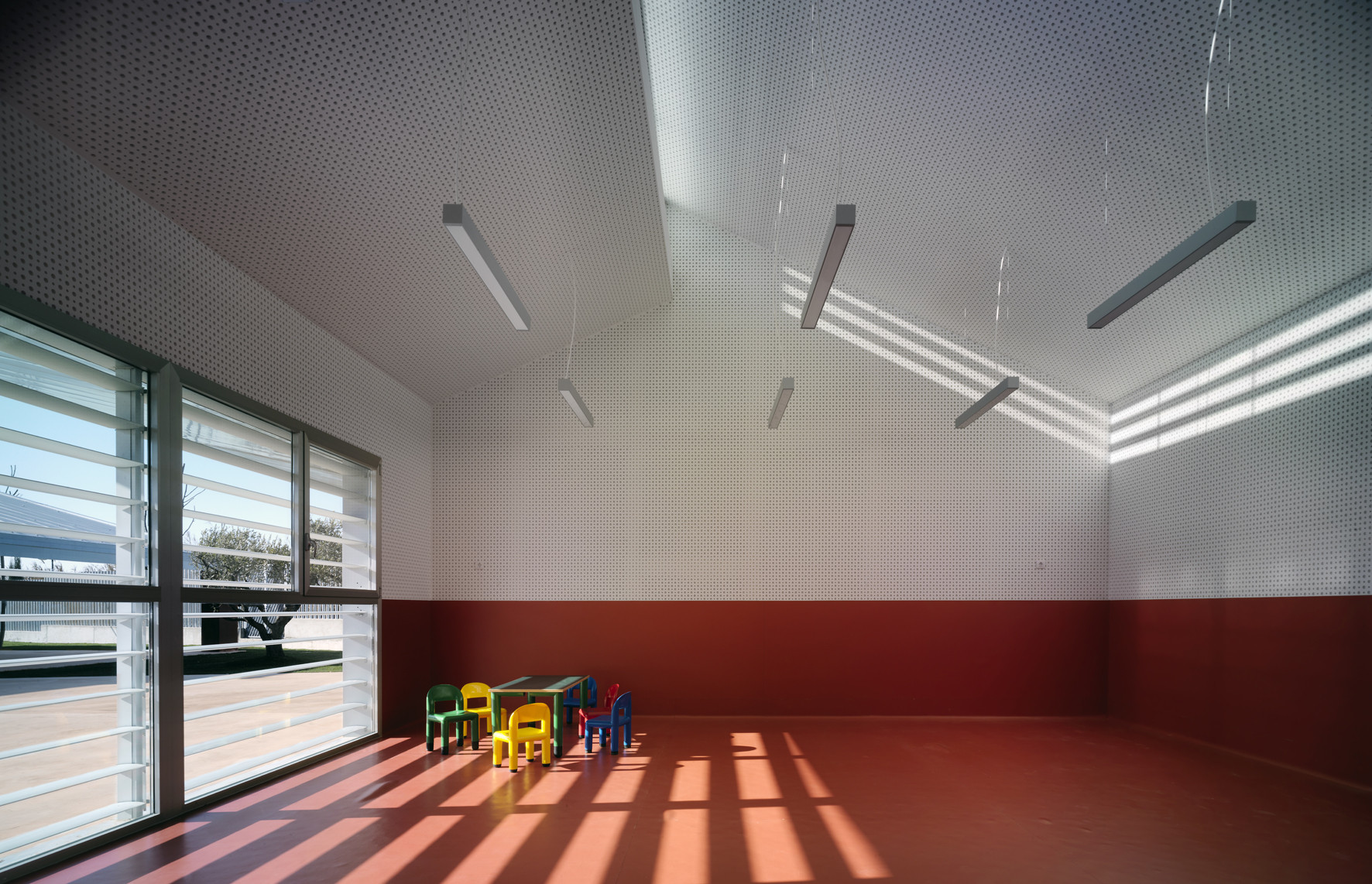

Opposite to the plan disintegration, a seamless flat deck that rises, falls and breaks as a function of interior spaces, gives the whole a unit and topographic character, providing each use a specific height. Classrooms` broken profile allows dual lighting and increase its depth, with a well-suited square size. Outside, the building is defined by a continous roof of inclined walls over a ventilated facade made by a large-format ceramic-extruded cladding. Ceramic fixed and anodized aluminium slats and the metallic finishing of the porches complete the exterior image of the building.

© Jesús Granada

The focus in the project to the outdoors is reflectd in the definition of ground  plane materials and gardening. Evergreen species, with natural grass, help to create an atmosphere that defines the nature of the kindergarten while deciduous species offer a changing appearance through the seasons.
