As burial field / Karres en Brands

  • 30 Jan 2013
  • Religious Architecture Selected Works
© Jeroen Musch

Architects: Karres en Brands
Location: , The Netherlands
Design Team: Sylvia Karres, Bart Brands, Lieneke van Campen, Joost de Natris, James Melsom, Alejandro Noe, Marc Springer, Jim Navarro, Julien Merle, Pierre-Alexandre Marchevet
Area: 10,000 sqm
Year: 2008
Photographs: Areal Shooting, Jeroen Musch, Thyra Brandt, Courtesy of

© Areal Shooting

Cemeteries have always been, and still are, reflections of society: they provide an insight into the relationship between the collective and the individual, the social environment of the time, the overall natural scene, the funerary culture and developments in the field of design and landscape architecture.

Courtesy of Karres en Brands

Karres and Brands created a design for the garden of remembrance of the Nieuwe Ooster cemetery in Amsterdam, the largest cemetery (in terms of numbers of graves) in the Netherlands. The Nieuwe Ooster was laid out in three phases: in 1889, 1915 and 1928. The first and second phases were designed by Leonard Springer. These sections have a clear spatial quality all of their own, but the third phase does not share this quality. It bears a resemblance to the style of Springer, but is not the same. Adaptations and expansions have left it devoid of structure and identity. The garden of remembrance lies within this phase.

© Areal Shooting

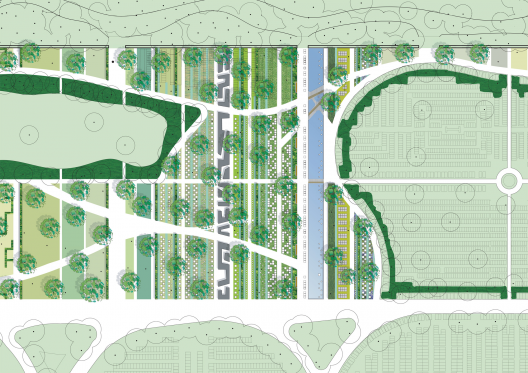

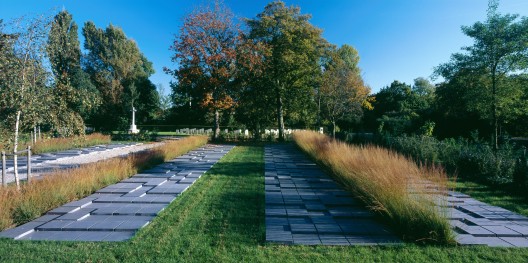

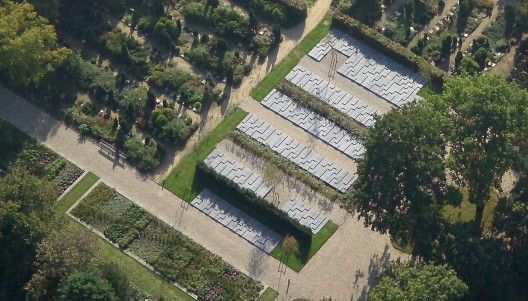

Instead of spatially linking the three zones, we found it necessary to give each area its own separate identity. By increasing the contrasts, a clear triple division of the cemetery is brought about, so that the qualities of each individual zone are enhanced. A new identity has been created for the third phase. A robust but simple intervention was called for here. The basis is a zone with parallel strips of varying widths, each with its own design principle. Within this unambiguous structure, choices are made possible for individual wishes. Some of the strips include hedges that divide the zone into spatial compartments. The existing graveyards and the garden of remembrance are incorporated into the zone like rooms with green edges. Birch trees are loosely spread throughout the zone as a whole. An elongated pond and an urn wall form spatial accents, and a special destination for cremation ashes.

© Jeroen Musch

Karres and Brands also has designed a columbarium – a place for storing funeral urns – as a component of the crematorium garden of remem- brance at the Nieuwe Ooster cemetery in Amsterdam.

© Jeroen Musch

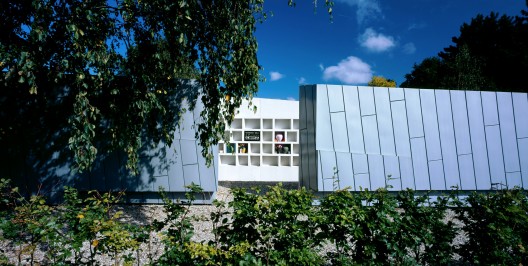

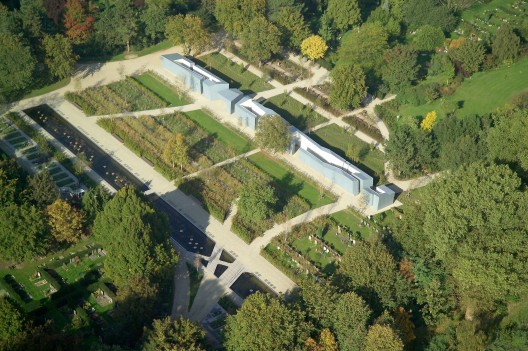

Like our changing society, the customs and rituals surrounding the burial of the dead continually endure change. The increasing demand for urn graves presented the opportunity to create a columbarium which forms an important spatial accent in the new structure of the crematorium’s garden of remembrance. The building forms one of the strips that structure the area, and provides places for 1,000 urns. The columbarium is an elongated volume dissected by pathways.

© Jeroen Musch

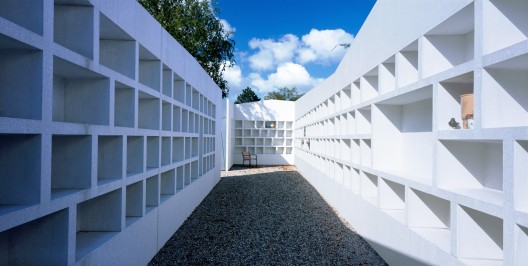

The separate elements of the building created in this way are linked by slanted lines in the exterior walls and roof. A number of rooms to house the urns are hollowed out within the volume. From the outside of the building – which is 120 metres long, 5 metres wide and 5 metres high – has the appearance of an introverted and robust zinc sculpture. From the inside, the rooms form enclosed, peaceful white interiors. Within the rooms visitors are sheltered from the surroundings, only the white terrazzo walls and the sky are visible. A pattern of single and double niches is hollowed out of the walls. At certain key points there are special niches where openings in the walls offer a glimpse of the surroundings and let in light.


View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "As burial field / Karres en Brands" 30 Jan 2013. ArchDaily. Accessed 28 May 2015. <>
