Bulgari Pavilion / NaNA

Courtesy of

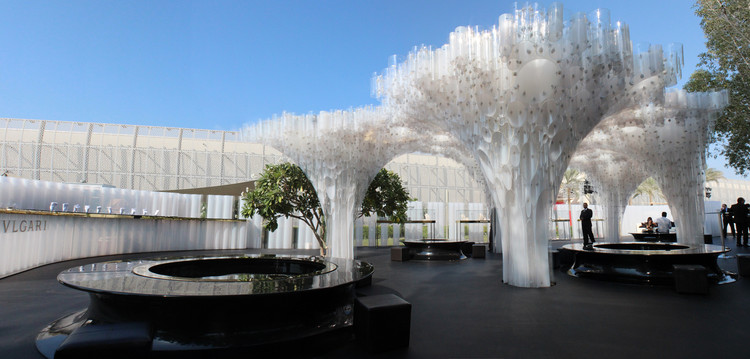

The Bulgari Pavilion, a temporary installation commissioned by prestigious luxury jewelry brand Bulgari, was designed by NaNA for the Art 2012 event held Saadiyat al Manarat, November 5-10. The architects were given a prominent outdoor space at the entrance of the event to create a lounge for VIPs and dignitaries of the art fair. Their design was conceived as an exclusive and private venue with live music, a bar, and a specially curated selection of Bulgari’s high end jewelry. More images and architects’ description after the break.

Courtesy of NaNA

Saadiyat Island will become home to Jean Nouvel’s new Louvre, Frank Gehry’s new Guggenheim and Foster and Partners’ Zayed National Museum, as such the focus upon architecture and design at this year’s art fair was significant with all three in attendance. Following on from Zaha Hadid’s Bulgari exhibition stand for Abu Dhabi Art 2011, Bulgari were keen to continue their patronage for innovative and creative design as well as encouraging young, emerging talent and commissioned NaNA to design a lounge with a breathtaking pavilion as its centerpiece.

© Sofia Dadourian

The client’s brief was for the creation of space that was “audacious, unexpected, yet anchored in Bulgari’s heritage”. The site was approximately 300m2 and needed to include a bar, a stage, jewelry showcases and a VIP area with a capacity for the whole lounge of up to 150 people. Within the world of high jewelry Bulgari is considered to be particularly innovative and progressive, especially in their use of technology and creative fabrication techniques. The project was required to be both representative of Bulgari’s style and its creative ideologies, whilst being emblematic of a “modern mythology”.

Courtesy of NaNA

The reapproriation of something mundane and transforming it into something magnificent became the starting point for our design concept. The design of the pavilion aimed to be both reminiscent of Bulgari’s Italian heritage whilst being representative of its own fabrication and structure. In this sense a certain brutal honesty was desired in the final outcome so that the form was a self supporting entity in itself without the need for a separate internal structure; therefore the form was not merely a decorative veil. To achieve this however required careful consideration and analysis of both material and construction technique.

Courtesy of NaNA

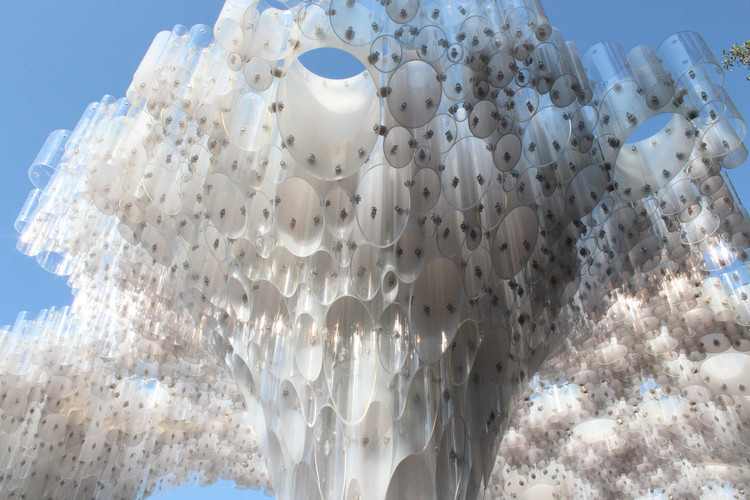

After a period of extensive prototyping and experimenting a design based upon the packing of acrylic tubes was devised. Acrylic tubes are an “off-the-shelf” product that comes in set lengths and diameters. Although they have a diverse range of uses they are rarely used as principal architectural elements. By packing them close together not only do they begin to form mass but also provide structural rigidity. Much like the rough gemstone the concept was to slice and cut, smooth and polish the form to result in new spaces and environmental conditions, to reinvent the material as something extraordinary and unique.

Courtesy of NaNA

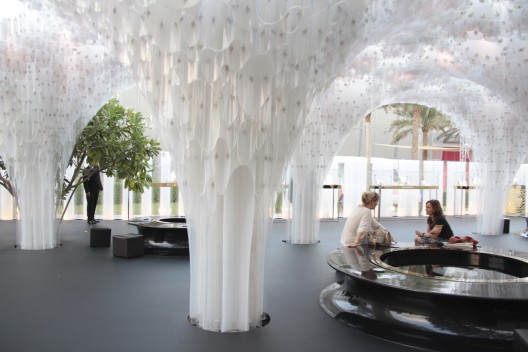

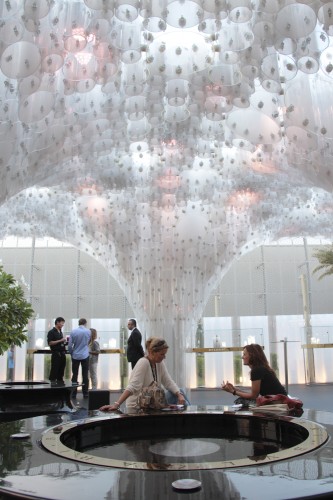

Whilst attempting to create a whole new spatial experience the team was also keen for it to simultaneously be something completely familiar, evocative of Bulgari’s heritage. In this way it was decided to form arches, arcades and cupolas through the excavation and sculpting. As well as being exposed and translucent this method provided a recognizable enclosure and intimacy all be it an ethereal sensation of it.

Courtesy of NaNA

Continuing with the desire to create a holistic design, a bespoke connection technique was formulated using polycarbonate dowels secured with polycarbonate pins. This provide not only a quick and simple assembly method but also minimized the impact the connections had aesthetically unifying the design through a single material.

Courtesy of NaNA

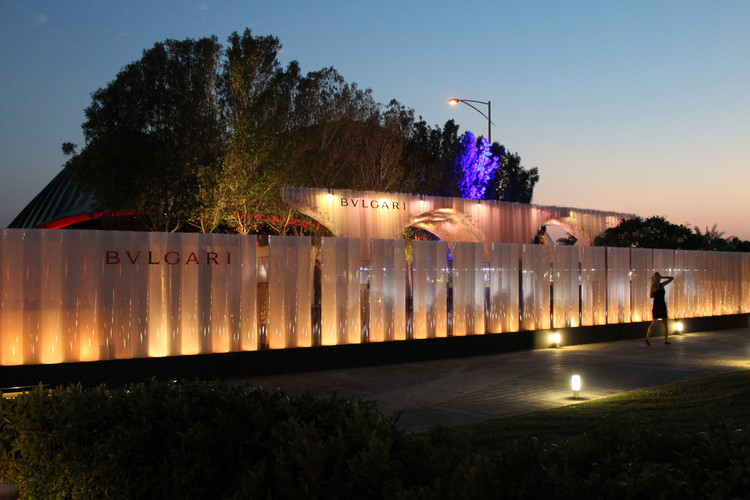

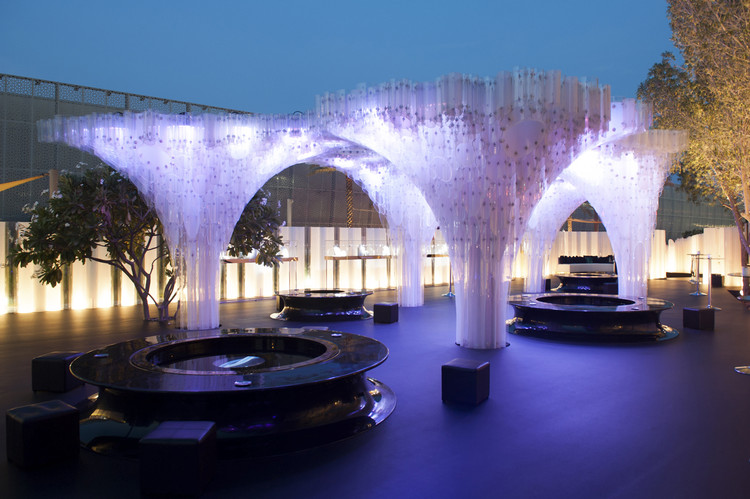

In total the design consists of 2272 tubes with approximately 10,000 individual connections between them with a final weight of nearly 6 tones. In parallel a team from Artisan (United Visual Artists) worked on the lighting design for the project. During the day the pavilion plays and manipulates the changing conditions of the sunlight however at night the aim was to provide an alternative experience in which the light flowed through the structure like water constantly hiding and revealing different parts of the pavilion.

Architects: NaNA (Not a Number Architects)
Location: Saadiyat al Manarat, Saadiyat Cultural District, Abu Dhabi, United Arab Emirates
Structural Engineers: Structure Workshop
Contractor: HDD Interiors/Top Solutions
Lighting Contractor: Eclipse
Lighting Consultants: Artisan (United Visual Artists)
Client: Bulgari SpA
Project Period: June 2012 – November 2012
