43 Public Dwelling In Almuradiel / Estudio Entresitio

  • 15 Nov 2012
  • Housing Selected Works
© Roland Halbe

Architects: Estudio Entresitio
Location: ,
Architects In Charge: María Hurtado, César Jiménez, José María Hurtado
Design Team: Julián Jimenez, Vidal Fernández Díez, Raquel Fernández Antoñanzas, Carolina Leveroni, Jorge Martínez Martín, Stefan Voght, Carolin Löser
Area: 3,960.56 sqm
Year: 2009
Photography: Roland Halbe, Courtesy of Estudio Entresitio

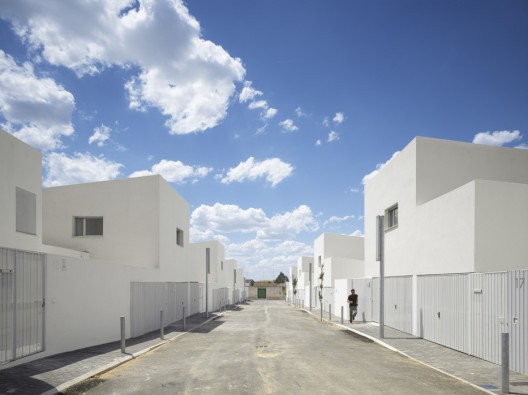

First thing that hit our heads when we visit the site was the idea of fragmentation. Almuradiel is a small town 250 Km. southern of Madrid. It was founded in century XVIII by Carlos III, King of Spain. Following a roman grid, it was planned to colonize Sierra Morena, a mountains chain that divides Andalucia from La Mancha.It is still quite a rural environment with 1.050 inhabitants, with white self-made houses hidden behind tall walls, where dogs and tractors share entrances with the habitants.

© Roland Halbe

The continuous aggregation of new constructions makes the hole the result of a peculiar but also harmonious bunch. So we started working with these materials; fragmentation, relation between parts and the hole, white, light, and of course “habitat”, in this case, a rural type of home.

© Roland Halbe

Incorporamos criterios de sostenibilidad desde el principio de una manera muy tradicional, aprendiendo de lo existente, y la consideración de la forma como una táctica de control climático.

© Roland Halbe

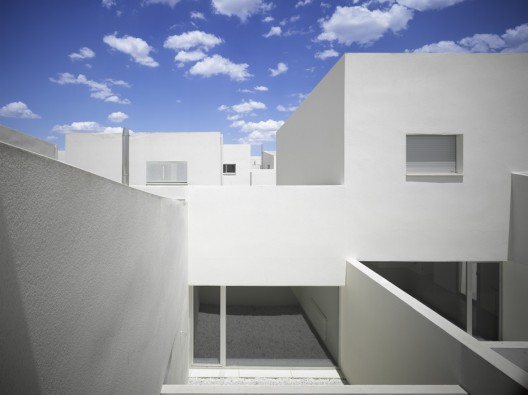

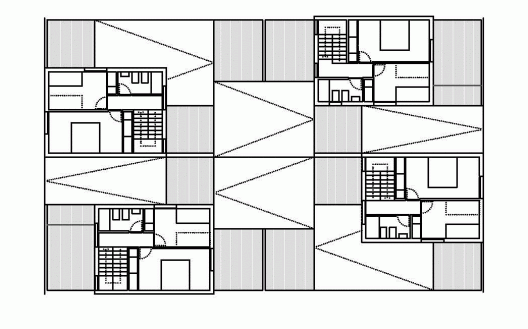

We incorporate sustainability criteria from the very beginning in a very traditional way, learning from the existing, and the consideration of the form as a climate control tactic. The dwelling type is configured around three “patios” inserted in a regular grid of 4.6 by 4.6m. This strategy has to do with the possibility of orientating each cells of the grid north or south, it doesn’t matter which side of the street we are. To make it more clear, lets say that living rooms are always facing South both in houses with North or South entrances. We thought of the grid as a “reversible” scheme that worked properly for the housing program needing in terms of lighting and ventilation.

Courtesy of Estudio Entresitio

We propose a flexible system where the grid give us the chance to work both with repetition and variation. Houses types are similar but not equal depending position in the complex.

Courtesy of Estudio Entresitio

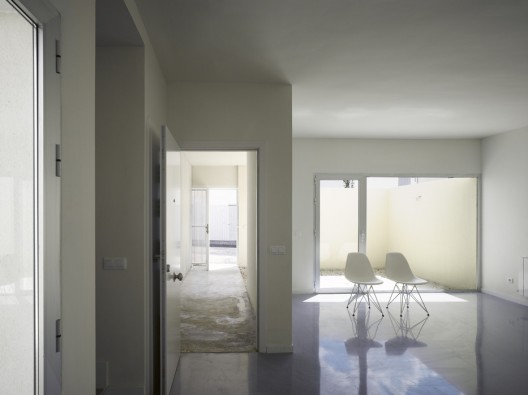

Houses are only 90m2 (inner surface) but the complete volume of each dwelling is about 600m3. These parameters may give an idea of the porosity of the plot, as well as the chance of private open spaces (patios) in continuity with the interior.

Courtesy of Estudio Entresitio

That is also the project strategy in terms of affordability: “maximum volume” possible at “minimum cost”. The approach consists in speaking of euros/m3 instead of euros/m2. If we increase the volume of the construction by the insertion of three patios and rise the standard high 1m, the result is a living space twice as big as the “regular” box. The final equation: same budget, same surface, more than twice the volume.
