De Verbeelding / René van Zuuk Architects

  • 01:00 - 12 November, 2012
De Verbeelding / René van Zuuk Architects
De Verbeelding / René van Zuuk Architects , © Christian Richters
© Christian Richters

© Christian Richters © Christian Richters Courtesy of René van Zuuk Architects Courtesy of René van Zuuk Architects +21

  • Architects

  • Location

    De Verbeelding 25, Zeewolde, Netherland
  • Architect in Charge

    René van Zuuk
  • Structural Engineer

    Van de Laar
  • Building Contractor

    Kingma Bouw
  • Area

    375 m² sqm
  • Photographs

    Christian Richters, Courtesy of René van Zuuk Architects

From the architect. The 'art track Zeewolde' is a seven kilometre route passing through an open air exhibition of high quality sculptural art. This sculpture park flows out into the pond that is surrounded by green slopes, it is here that the art pavilion "The Imagination" is located.

© Christian Richters
© Christian Richters

Initially, the project was allocated a site hidden behind a school and sports complex. Eventually the site was exchanged for a prime location in the middle of the water at the end of the 'art track', here the pavilion acts as an organizational centre for events, exhibitions and lectures.

Courtesy of René van Zuuk Architects
Courtesy of René van Zuuk Architects

The art track owes a lot of its reputation to the sculpture by Richard Serra called Sea Level. The elongated shape of the pavilion stems from Serra's black concrete wall. Inspiration for the design was also taken from the construction barns, the first building built in the Polder. There was a limited budget for the pavilion and this type of construction is especially cheap to manufacture. All of the trusses are identical but they are all placed at a slightly different angle creating an elegantly twisted roofscape.

© Christian Richters
© Christian Richters

This subtle rotation causes a tectonic fault in the ridge where the trusses almost meet. The shifted roof surfaces subsequently provide indirect daylight. The roof is constructed of profiled steel sheeting and cladded with corrugated aluminium on the exterior. Internally the steel sheeting covered, partly, with gypsum plasterboard. Office spaces, rest rooms, storage and a little library space are placed in the main volume as two autonomous wooden boxes.

© Christian Richters
© Christian Richters

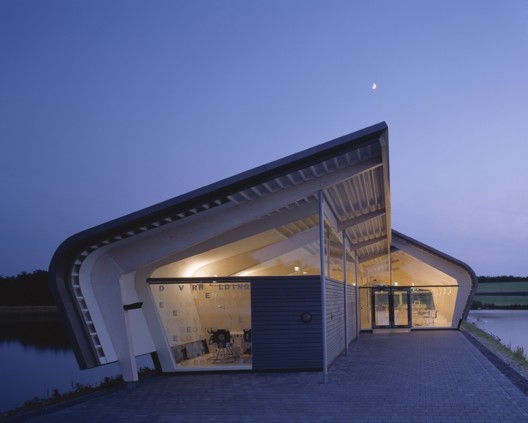

At ground level a glass strip is used as a transparent plinth, this lifts the building off the ground and contributes to an airy feeling. The view out onto the water through the glass plinth evokes a sense of the building floating, there is also a constant reflection of water patterns on the ceiling enhancing a rolling sensation instigated by the curved angles. The glazed end wall provides a view across the pond and sculpture garden.
