Two Social Housing, Miguel Sesmero Tower / GAas architecture studio

  • 05 Nov 2012
  • Housing Selected Works
1_copia
© Fernando Alda

Architects: GAas architecture studio
Location: Badajoz, Extremadura,
Design Team: Raúl Gálvez Tirado, José Algeciras Rodríguez
Project Year: 2011
Photographs: Fernando Alda

4_copia 5_copia 2_copia 3_copia

Collaborators: Inmaculada Pérez Sánchez, Lucía Gómez Sánchez; Carlos Olivera Quintanilla
Consultants : José Domingo Lago Martín
Contractor: Coedypro. Diego Carretero Romano
Work Budget : 123.364,49 €

Background

4_copia
© Fernando Alda

The place lies in the region of Llanos Olivenza to the west of the province of Badajoz and bordering Portugal. In the neighborhood where the church is located, at the eastern end of Miguel Sesmero Tower, the polygonal land has an area of 162.63 m2. It is located within a block mostly destined for industrial use.

5_copia
© Fernando Alda

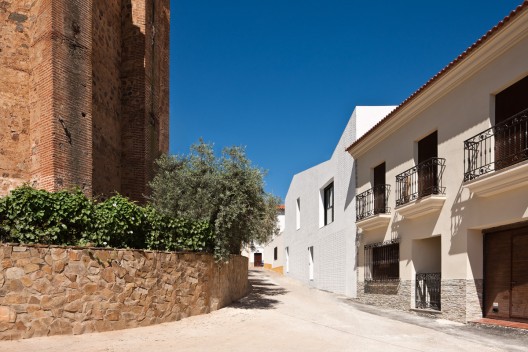

Although the street is located just outside the town, it remains close to its center. It is narrow, 5m wide and with buildings of less than two stories high above ground. It also has two special features; the proximity of the parish church of Nuestra Señora de la Candelaria, a religious building built in the late sixteenth century with an imposing size that dominates the skyline of the city. Also, its edge condition where industrial buildings are located between the countryside and the city

2_copia
© Fernando Alda

Landscapes

3_copia
© Fernando Alda

The contemporary look of the city requires recognition of vectors that affect the urban reality. The city is like an open poem which is inherited and has no end.

6_copia
© Fernando Alda

The building joins the city and its surroundings in a particular way. Only the shared reality of such diversity of objects is what helps this difficult idea of common urban space.

Planta_01
Floor Plan 01

In order to share and belong to a place is necessary to intervene materially the context in which is inserted. The approach seeks to link the memories to the closest reality.

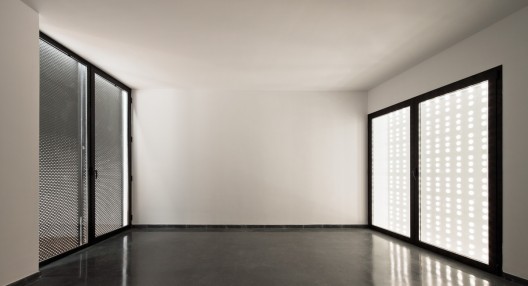

The transfer of landscapes is the mechanism through which the projected object acquires properties ir characteristics of the environment. The boundary condition of the land is used for domestic adaptation of industrial buildings, which are located between the town and the countryside. By using a simple construction system and low-tech elements of a primitive architecture, we try to rediscover and reformulate an industrial one. The lattices of the facades allow lighting and ventilation of the space like it had a drying system.

Elevaci%c3%b3n

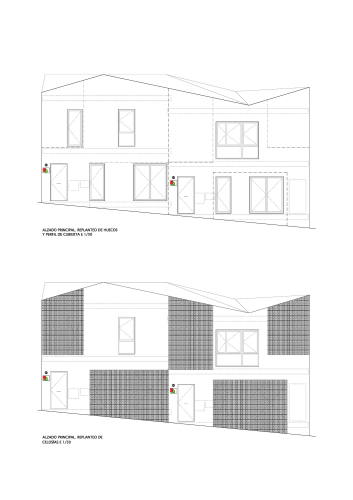

Elevation

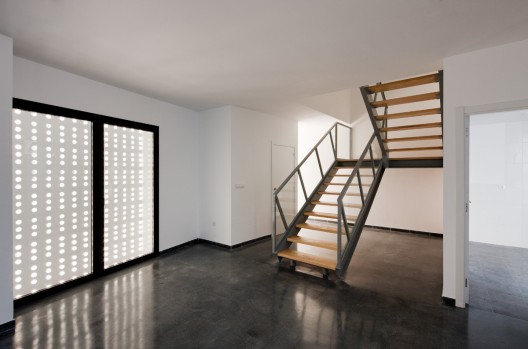

The rest of the project relies on compositional strategies for solving the functional program. Each house has two floors. There is a very airy ground floor and staircase that leads to the upper floor. The bedrooms are located on the first floor. The physical characteristics of the space compress the sitting and resting areas and expand the day-use areas.

Corte_(5)

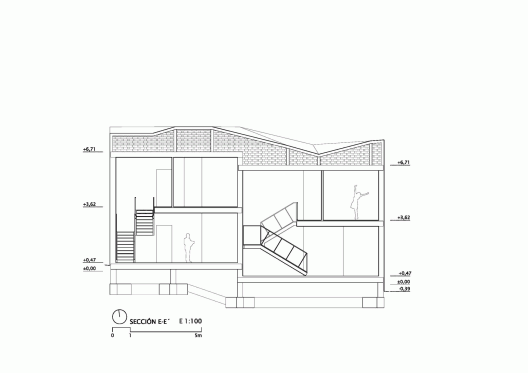

Section

The deck offers continuity to the facade. By using faceted geometries, the deck adapts to the single and homogeneous volume of the piece. The building, which formerly approached an industrial context, now stands to join the urban environment and the hills and plains of the agricultural landscape.
