Agridulce lookout house / XPIRAL
Architects: Javier Peña Galiano – XPIRAL
Location: Murcia, Spain
Collaborators: Lola Jiménez, Katja Wirfler, Joaquín Fernández
Technical Architect: José Bautista
Services: Federico García Salmerón
Structure: López Pacheco
Contractor: Javier Mora
Promotor: Carlos García Calvo
Design year: 2002-2003
Construction year: 2003-2006
Budget: US $966,500
Constructed Area: 615 sqm
Photographs: Juan de la Cruz Megías
On the urban insertion

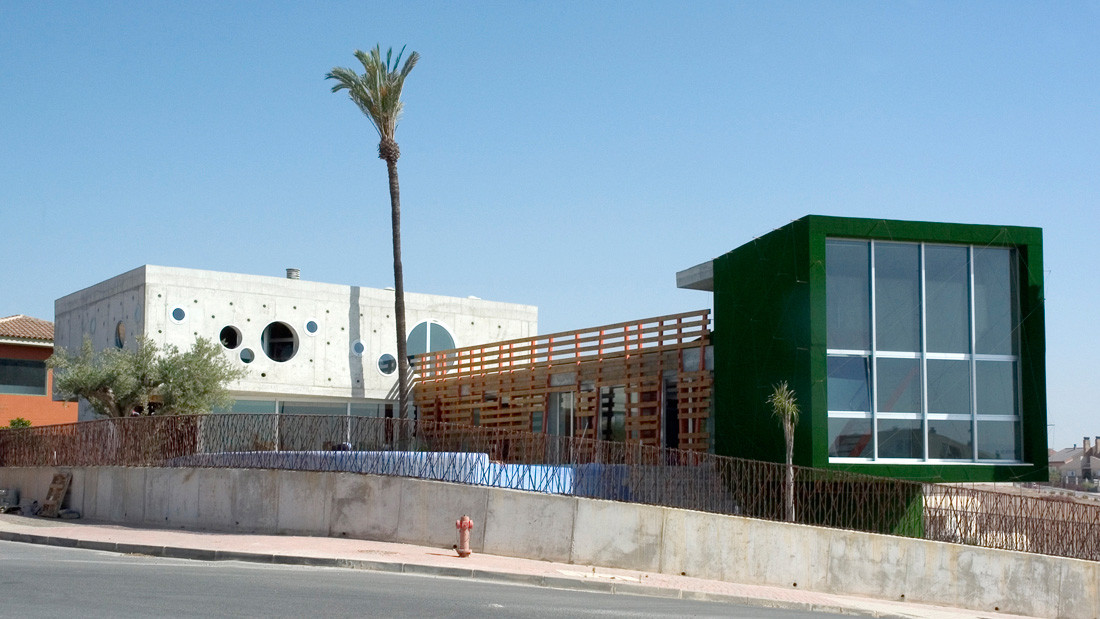

By being an isolated single-family house, the articulating piece with the city is the garden, acting as a filter between the street and the neighbors. The qualification of the exterior spaces is done through the section: an endless pool acts as a retaining wall, the garage incorporates with a large gate as a play area on the lower access, a big palm sews the two lower levels, the mirrors on the facade build a suburban lobby between the entry of the lot and the access to the house.
Several interior and exterior circulations allow inhabitants to enjoy the garden, which folds on certain facades with an artificial grass finish and virgin tree vine, continuing with a green cover that connects the parents and children areas in the upper level of the house.
Bridge

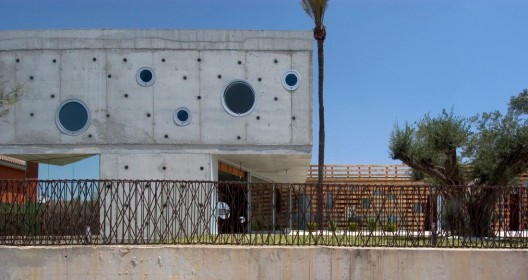

The structure resolves in a radical way the “family” proposal: two boxes act as tall beams, with a large span (10m, 15m up to 17m) and cantilever (up to 6m). The lack of supports envisions suspended and independent programs.
The whole house is made out of light structural concrete, with an exposed finishing in both interior and exterior. Light structures and enclosures (aluminum, glass, wood) populate the interior space, generating the partitions and the rest of the facades.

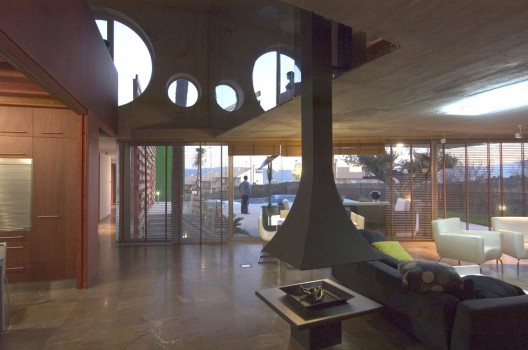

Both pieces overlap on the kitchen and living room, configurating a fluid space and continuing the exterior through the south facade. The interior stair vertically connects the different programs and is the common space to all the levels of the house.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
construction process
-
-
construction process
-
-
construction process
-
-
construction process
-
-
basement plan
-
-
ground floor plan
-
-
first floor plan
-
-
elevations 01
-
-
elevations 02
-
-
sections 01
-
-
sections 02
-
-
section 03
-
-
details
-
- construction process
-
- construction process
-
- construction process
-
- construction process
-
- basement plan
-
- ground floor plan
-
- first floor plan
-
- elevations 01
-
- elevations 02
-
- sections 01
-
- sections 02
-
- section 03
-
- details
