Cultural – Sport Complex For Disabled / Experimental Branch of Architecture

Courtesy of

Architects: Experimental Branch of Architecture
Location: Tehran,
Completion: 2011
Area: 18,000 sqm
Client: Development of Cultural Environment Co.
Photographs: Courtesy of Experimental Branch of Architecture



Courtesy of Experimental Branch of Architecture

More than 3 million disabled of natural disasters, accidents and Iran-Iraq war are living in Iran. They are so vulnerable and forgotten due to the lack of urban facilities and other special services. In 2007, Cultural-Social Administration of Tehran municipality, decided to construct a cultural-sport complex for disabled in each 22 Tehran districts, in order to increase these kinds of facilities. Thus, one physical program was prepared by initiatory consultant and was advised to all districts to have a same program for all of these complexes.

Courtesy of Experimental Branch of Architecture

The proposed site was part of a 50×100 land and just 30×100 occupation was possible. The remained area belonged to the municipality which should prepare the access to the northern part of the site. Furthermore, the municipality defined this part as public green space, separated from Cultural-Sport site. An obsolete curriery factory was located in the southern part of the site with 100 year old trees and very appropriate green space.

Courtesy of Experimental Branch of Architecture

After mechanical test it was revealed that just 2 levels can be built underground. We got the permission of locating parking sunder the public park. The site area was so limited for all of the client’s program and demands, and city managers insisted on producing this kind of space in mentioned site. So a tall building was inevitable and finally the program turns into functional boxes. These functional boxes locate and slip over each other to make voids between spaces. Thespaces which behave in relation to inside and outside of the building.

Courtesy of Experimental Branch of Architecture

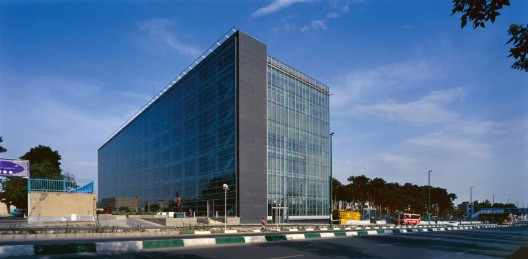

Some ramps in the northern façade, connect these functional boxes together, and define special wheelchair paths that make a dynamic façade, as well. These ramps are located in a façade box opposite to interior functions. A functional façade box which is the project façade and connect different parts as well. A façade which is always changing due to its users and users are a part of architectural project. These ramps finally reach to the roof which a wheelchair Track is located on it.

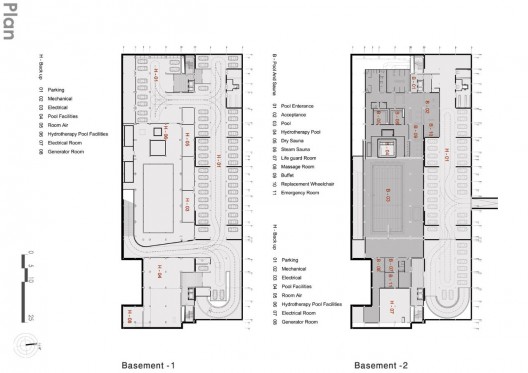

basement plan

Cultural-sport complex for disabled contains these spaces: administrative sector, cultural sector contains of library, gallery, Amphitheater, media center. Educational sector contains of conference hall, training classes and workshops. Sport sector contains of pool, Steam Sauna, Hydrotherapy Pool, Table Tennis Hall, Gym, Fitness, Shooting Hall, Multipurpose Hall, Chess Room, wheelchair path. Service contains of Buffet, Public hall, place of worship, parking, utility and circulation.

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Cultural – Sport Complex For Disabled / Experimental Branch of Architecture" 21 May 2012. ArchDaily. Accessed 20 Sep 2014. <http://www.archdaily.com/?p=235723>
