Interims Audimax / Deubzer Konig & Rimmel Architekten

© Henning Köpke Fotografie

Architects: Deubzer König & Rimmel Architekten
Location: Technical University Munich, Germany
Client: Bavarian State Ministry of Sciences, Research and the Arts
Gross building Area: 1,010 sqm
Building Area: 780 sqm
Building Costs: 3,6M €
Completion: 2011
Photographs: Henning Köpke Fotografie



© Henning Köpke Fotografie

Due to recent reforms in the German school system, a great number of school graduates will enter universities very soon. A significant lack of space made it necessary to build new lecture halls among other facilities.

The new lecture hall will be a temporary solution for 10-20 years. The hall is situated north of the mathematics and computer science department of the Technical University Munich, Campus .

© Henning Köpke Fotografie

A very limited budget of just 60% of regular building costs and a very short planning and building period (approximately 9 months) made the decision to use a wooden structure easy. The primary structure is filled with a wooden frame construction based on a 62,5cm grid.

The almost square building contains two lecture halls with 479 and 288 seats. They are separated by a corridor which provides the access for handicapped people and the speaker. The foyer, the bathrooms and the technical facilities are situated below the seating. This assured a maximum of seats within a minimum of cubature. The main accesses for the lecture halls are the two staircases and the first floor corridor.

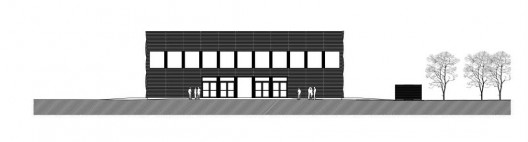

elevation 01

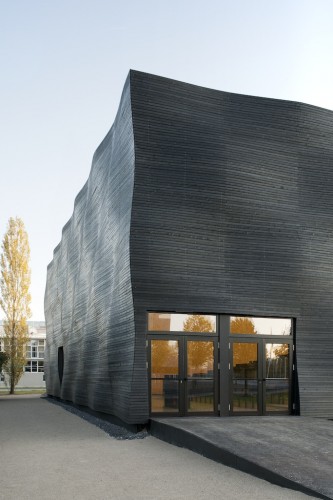

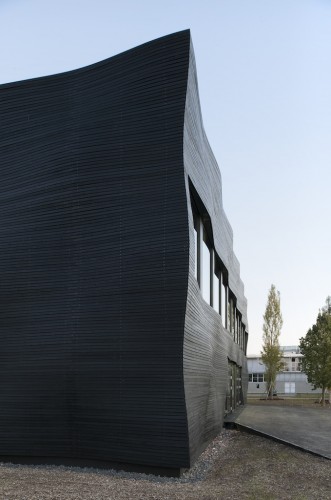

The facade consists of rough cut spruce planks. To counter the varying exposure to the weather and given the short time of service, the decision was made to coat the facade in black wood stain, so that the aging process is not visible. By offsetting the facade’s substructure by one module the image of an undulating surface is created, which is shaped by the light.

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Interims Audimax / Deubzer Konig & Rimmel Architekten" 25 Apr 2012. ArchDaily. Accessed 16 Apr 2014. <http://www.archdaily.com/?p=229258>
