HYDRAMAX: Port Machines / Future Cities Lab

Courtesy of

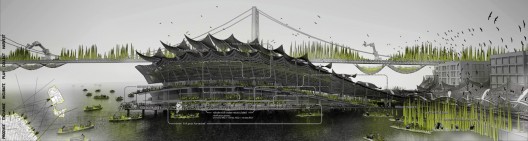

Future Cities Lab’s HYDRAMAX Port Machines project, which is currently on exhibit at SFMOMA until July 29, proposes a radical rethinking of ’s urban waterfront post sea-level rise. The proposal renders the existing hard edges of the waterfront as new “soft systems” that would include aquatic parks, community gardens, wildlife refuges and aquaponic farms. A synthetic architecture is introduced that blurs the distinction between building, landscape, infrastructure and machine. More images and architects’ description after the break.

Courtesy of Future Cities Lab

Using thousands of sensors and motorized components, the massive urban scale robotic structure harvests rainwater and fog, while modulating air flow, solar exposure and intelligent building systems. A network of infrared proximity sensors has been integrated into the four sides of the physical model. These sensors record the distance of gallery visitors to its edges. Information from these sensors is used to actuate the white feather-like “fog harvesting robots” and control the brightness of embedded LEDS. This model is an example of what Future Cities Lab calls “live models”. Live models use the interaction of people to explore and simulate the potential effects of environmental forces such as fog, wind and sunlight.

Design: Future Cities Lab
Team: Jason Kelly Johnson, Nataly Gattegno
Project Manager: Ripon DeLeon; Project Interns: Gavin Johns, Cameron Eng
Collaborative Sponsor: MIGA Motor Company (Dr. Mark Gummin)
Video: Eddie Lee, Square Two Design
Model Materials: Cast and thermoformed acrylic, custom printed circuit boards, Arduino based microcontrollers, infrared sensors, shape memory alloy motors (Courtesy of MIGA Motor Company)

Cite: Furuto, Alison. "HYDRAMAX: Port Machines / Future Cities Lab" 15 Apr 2012. ArchDaily. Accessed 17 Apr 2014. <http://www.archdaily.com/?p=225876>
