Palapa / GH+A | Guillermo Hevia

  • 01:00 - 27 March, 2012
Palapa / GH+A | Guillermo Hevia
Palapa / GH+A | Guillermo Hevia, Courtesy of Guillermo Hevia H.
Courtesy of Guillermo Hevia H.

Courtesy of Guillermo Hevia H. Courtesy of Guillermo Hevia H. Courtesy of Guillermo Hevia H. Courtesy of Guillermo Hevia H. +16

  • Architects

  • Location

    Monterrey, Mexico
  • Architects

    GH+A | Guillermo Hevia
  • Project Team

    Tomás Villalón, Francisco Carrión, Guillermo Hevia García, Marcela Suazo
  • Client

    Grupo KALOS
  • Contractor

    Grupo KALOS
  • Area

    450.0 sqm
  • Project Year

    2009
  • Photographs

From the architect. The Project “Palapa” is located in the city of Monterrey, Mexico, and is planed as a place of leisure time for the workers of an industrial complex in the outskirts of the city.
“La Palapa”, (space for BBQs), persist of a covered space with service rooms and a kitchen for social activities and events.

Courtesy of Guillermo Hevia H.
Courtesy of Guillermo Hevia H.

Facing these conditions, the project poses in the floor plan a 20 x 20 m square, which achieves a free central space for flexible uses, putting the service rooms on the perimeter.
The building consists out of concrete parts, piling up in a configuration which assumes gravity like an expressive power of the constitution of the space, capturing the constructive conditions of the material, to make its virtue a possibility of the architecture.

Courtesy of Guillermo Hevia H.
Courtesy of Guillermo Hevia H.

The building works with straight separated parts, which, in its tonalities, determine a sculpture in structural and architectonical equilibrium.
In first place, three walls, two pylons and one service volume are the supporting structure of the building. Those elements define an appropriate answer in their geometrical assembly of the floor plan, and at the same time, confine the space as a semi-open area.

Courtesy of Guillermo Hevia H.
Courtesy of Guillermo Hevia H.

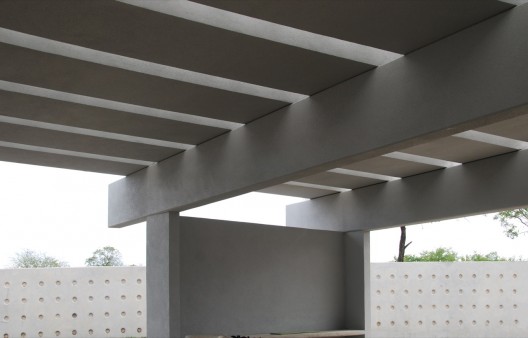

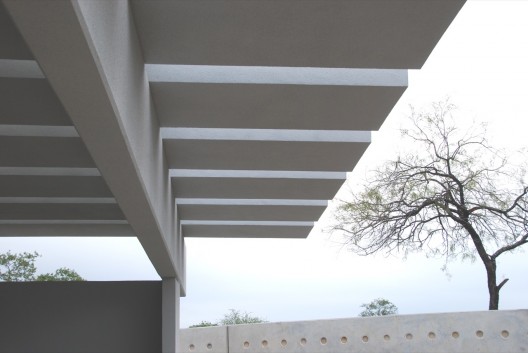

A roof made out of prefabricated concrete panels is supported by three beams, resting on the basic elements, and, at the time, being suspended by a fourth superior beam, which allows to liberate the internal space, defining a free floor with flexible use and great transparency.
The work assumes the gravity and materiality as a round architectonical expression, in which each element shows in a simple manner its structural quality in between the whole ensemble.

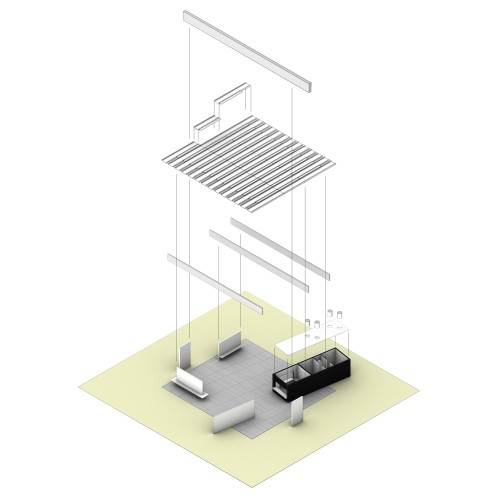

axon
axon
Location to be used only as a reference. It could indicate city/country but not exact address. Cite: "Palapa / GH+A | Guillermo Hevia" 27 Mar 2012. ArchDaily. Accessed . <http://www.archdaily.com/220661/palapa-gha-guillermo-hevia/>
