Marronier Court / Kengo Kuma & Associates

© Daici Ano

Architects: Kengo Kuma & Associates
Location: 1508-1 Tamagawa, Setagaya-ku, Tokyo,
Title of the Project: Tamagawa Takashimaya S・C Marronier Court
Client: Toshin Development. Co., Ltd
Site Area: 2,424.40 sqm
Completion: 2009
Photographs: Daici Ano

We inserted a green eave into an aperture between the commercial building and the town. Our aim was how we could lighten and abstract the eave. First, we developed the stainless mesh structure, which we tried at our Green Shelter project near Hoshakuji Station. We rejected the combination of ‘bone and skin’ in steel, and made an eave with its skin alone could work as structure. The length of the eave is 1600mm, and this itself is a cantilever. We secured strength by folding corrugated stainless net (φ5mm) in the pitch of 75mm×75mm, and anchored it to the wall without any secondary equipment. On top is trained an ivy-type plant extended from the frame of the building, so that the eave with high-level of transparency could be realized, feeling green even under the eave.

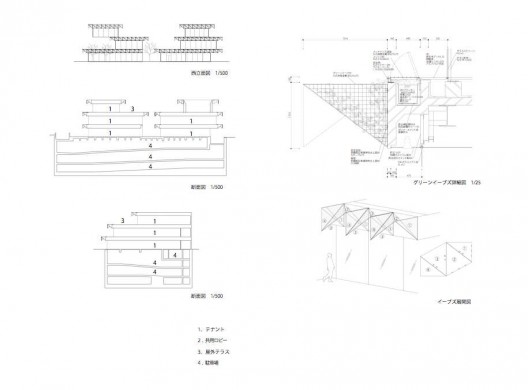

drawings

The green consists of Hedera, Carolina Jasmine, vine and blue passionflowers, each blooming in different times of the year. The eave also creates a shade underneath and gently shades the tenant shops of the building. The old Marronier Court had a large courtyard at the center of the building. In our proposal for the reconstruction, space for the garden is deliberately scattered. It is allocated to each tenant of each floor, and together with the green eave, it horizontally expands further to the town. By the articulation of the building, the green continues, changing its face in good rhythm, combining shops and terraces, which has become a new kind of urban space.

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Marronier Court / Kengo Kuma & Associates" 26 Jan 2012. ArchDaily. Accessed 25 Jul 2014. <http://www.archdaily.com/?p=199742>
