Sugar Cube / KPMB Architects

Sugar Cube / KPMB Architects - Countertop, Sink, ChairSugar Cube / KPMB Architects - Windows, FacadeSugar Cube / KPMB Architects - ColumnSugar Cube / KPMB Architects - Windows, Facade, BrickSugar Cube / KPMB Architects - More Images+ 22

  • Architects: KPMB Architects: KPMB
  • Area Area of this architecture project Area:  13460
  • Year Completion year of this architecture project Year:  2008

Text description provided by the architects. This mixed-use development project introduces a new strategy for making contemporary architecture within Denver's historic Lower Downtown Heritage District (LoDo). The design responds to the precise urban design guidelines for LoDo, while helping the local Review Board to expand its guidelines to include contemporary buildings within its historic context. The architectural solution balances a larger vision of the building in the evolving context of LoDo with a specific contemporary response to the adjacent, heritage 1904 Sugar Building, the most important historic building in the district.

Sugar Cube / KPMB Architects - Windows, Facade, Cityscape

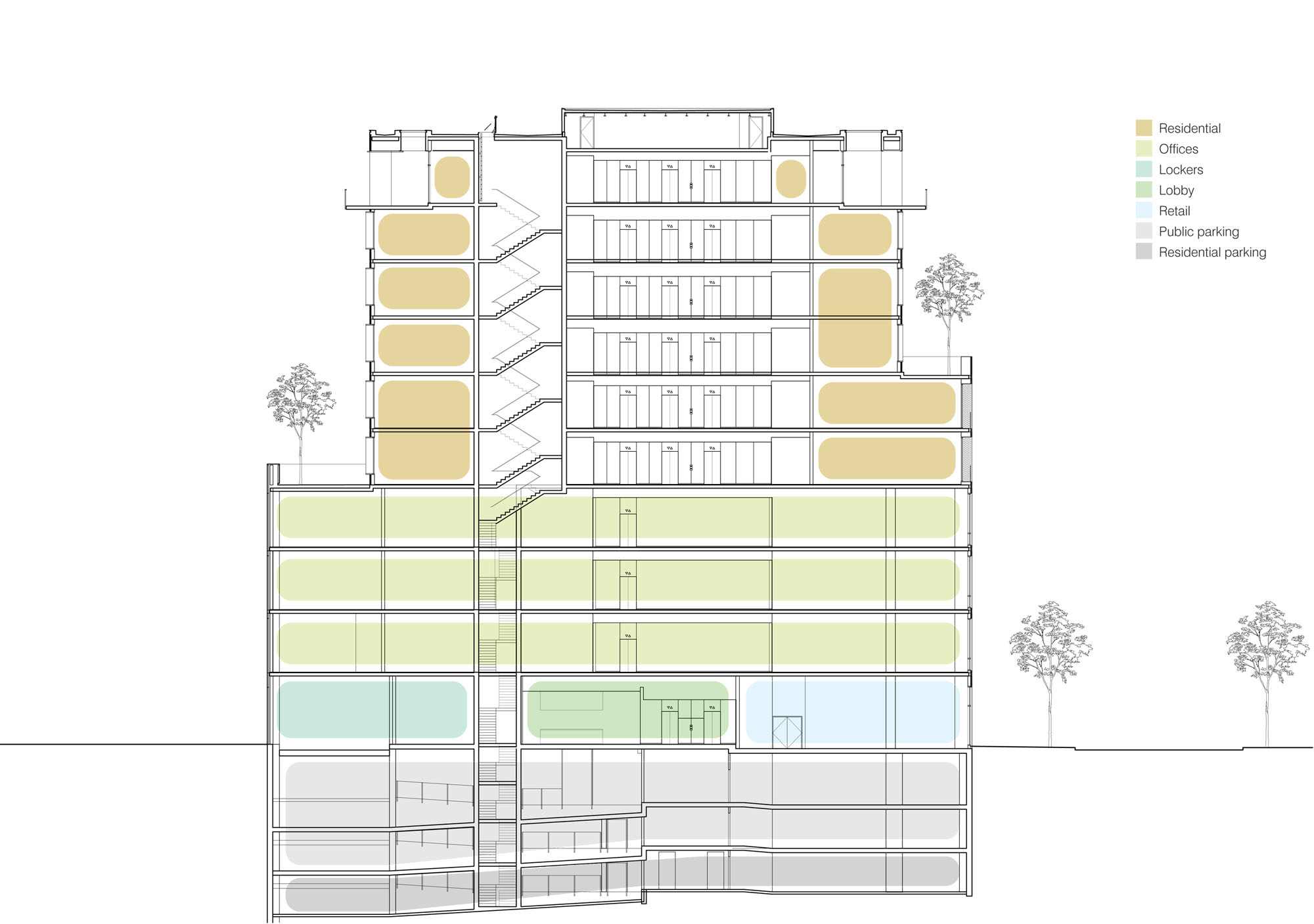

The client's specific functional and performance goals included building for longevity as a form of sustainability, achieving cost savings with energy efficient systems and enduring design, and creating an active street-related base to contribute to the revitalization of the district. The program is broken down into three distinct volumes and organizes retail space at street level, offices from the second to the fourth floor, and residential space from the fifth to the tenth floor. The design establishes relationships to the adjacent historic Sugar Building in the dimensions and proportions of the massing, masonry piers, and punched grid of windows. The glazing composition varies at different levels of the façade to create vertical emphasis, shadows and depth within the grid of the masonry.

Sugar Cube / KPMB Architects - Windows, Facade

The project is located on the 16th Street Mall, a major public pedestrian thoroughfare that runs through the city of Denver. The building features a central ten-storey volume in manganese-coloured brick, and two building volumes wrapping around it at its base, one rising 4 storeys and one six storeys, both in buff brick. The six-storey volume on the 16th Street Mall wraps around the base volume in a way that relates specifically to the wrapping of the adjacent Sugar Building's ornamental façade around the corner against the laneway and then brought to a full stop, establishing a clear hierarchy through the articulation of a zone addressing the main street. The transition between commercial office and residential uses at the top of the fourth floor is marked by deeper setback of operable glazed windows within the 16th Street masonry façade. The 16th Street façade in turn references one of the mid-bands within the façade of the Sugar Building. The top of the parapet of SugarCube is set at a height that aligns with the underside of the upper cornice of the Sugar Building. The roof of the masonry base buildings on the 16th Street Mall and Blake Street provide generous outdoor terraces for residential units on the 5th and 7th Floor.

Sugar Cube / KPMB Architects - Windows, Facade

A cubic brick volume rises through the centre of the two wrapped volumes, and is set back from the base on all sides. The darkness of the cube's brick and the way it interacts with Denver's strong light creates a dramatic contrast with the lighter masonry volumes, and inserts an iconic, modernist form on the Denver skyline. The scheme explores alternatives to conventional balconies associated with residential developments to create drawer-like projections from the building, three of which project beyond the building to create views around the corner and create an unusual interplay of form against Denver's brilliant blue skies and distant views of the Rocky Mountains.

Sugar Cube / KPMB Architects - Table

Project gallery

See allShow less

Project location

Address:Denver, CO, USA

Click to open map
Location to be used only as a reference. It could indicate city/country but not exact address.
About this office
Cite: "Sugar Cube / KPMB Architects" 11 Apr 2009. ArchDaily. Accessed . <https://www.archdaily.com/19196/sugar-cube-kpmb> ISSN 0719-8884
