Porreres Medical Center / MACA Estudio

  • 01:00 - 9 December, 2011
Porreres Medical Center / MACA Estudio
Porreres Medical Center / MACA Estudio, © Jaime Sicilia
© Jaime Sicilia

© Jaime Sicilia © Jaime Sicilia © Jaime Sicilia © Jaime Sicilia +22

  • Architects

  • Location

    Porreres, Mallorca, Spain
  • Architects

    MACA Estudio
  • Project Team

    Christian Álvarez, Jorge Garrudo, Noelia Álvarez
  • Client

    Servei Salut de Illes Balears
  • Area

    900.0 sqm
  • Project Year

    2011
  • Photographs

From the architect. The starting point for the design process of the new Porreres Health Center began with a restrictive urban regulation that required the construction of three floors to host the center's functional program in the small available section of the plot.

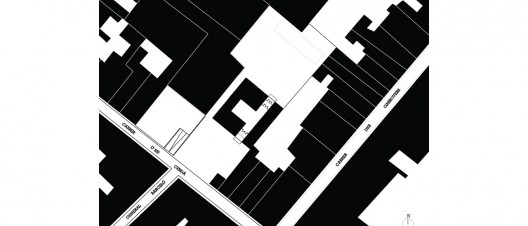

Site Plan
Site Plan

In this way, a public square is opened to the front of the building with street access, and a private parking area is placed at the back of the plot. The resulting volume is almost a cube, which is modulated by dividing the width into five equal parts and the depth into three parts.

© Jaime Sicilia
© Jaime Sicilia

The medical practices are placed toward the interior of the plot, looking northeast to avoid excessive sun exposure. The auxiliary program is distributed in the main elevation, facing southwest with sun protection over the windows.

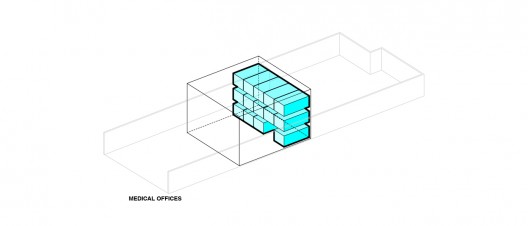

Medical Offices
Medical Offices

Special attention was paid to the design of the public spaces: waiting areas and circulation, the central space of the building, providing them with big openings to the south. These openings are marked on the main façade by steel boxes that endow views and natural light while generating a recognizable image of the building.

© Jaime Sicilia
© Jaime Sicilia

The building´s economic restrictions have led to propose a simple construction that allows the execution of the work in a short time, with reduced costs but at the same time, without compromising quality or functional space.

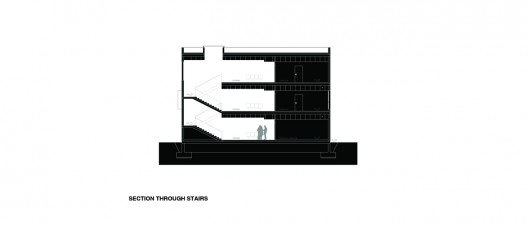

Section
Section

Text provided by MACA Estudio
