Expandable Surface Pavilion / Pablo Esteban Zamorano, Nacho Martí and Jacob Bek

  • 01:00 - 24 November, 2011
Expandable Surface Pavilion / Pablo Esteban Zamorano, Nacho Martí and Jacob Bek
Expandable Surface Pavilion / Pablo Esteban Zamorano, Nacho Martí and Jacob Bek, Courtesy of  pablo esteban zamorano
Courtesy of pablo esteban zamorano

Courtesy of  pablo esteban zamorano Courtesy of  pablo esteban zamorano Courtesy of  pablo esteban zamorano Courtesy of  pablo esteban zamorano +8

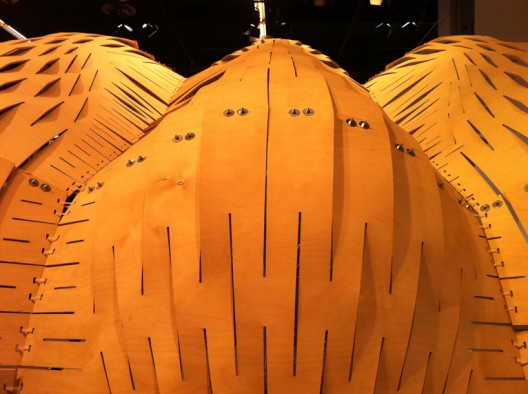

From the architect. This design manifested into a small meeting room-pavilion that explores complex geometries generated from plywood sheets.

Courtesy of  pablo esteban zamorano
Courtesy of pablo esteban zamorano

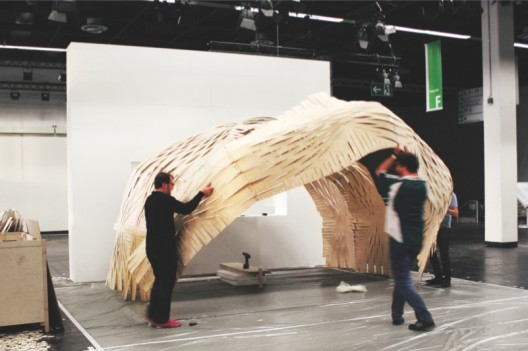

The project was created for the recent SPOGA furniture design exhibition in Cologne, Germany and is part of an ongoing research into Expandable Surface Systems, which began in collaboration with the Emergent Technologies and Design Programme at the Architectural Association. The project was designed, fabricated and mounted by the designers.

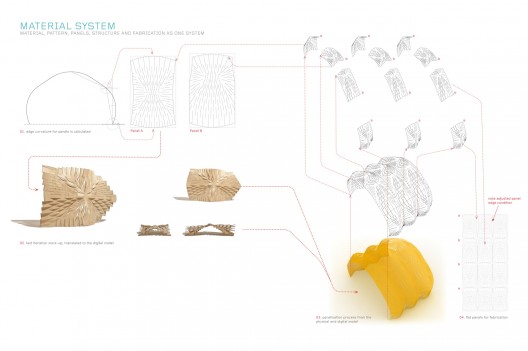

drawings
drawings

Through a novel fabrication process, we developed a method to achieve zero waste of material and dispense the need for additional formwork. Along with this material process, a parametric computational tool was created to find the required cutting pattern to achieve a specific geometry. Both modes of fabrication and computation were based on material properties to ensure the system's structural and construction feasibility.

Courtesy of  pablo esteban zamorano
Courtesy of pablo esteban zamorano
