CHL Social Housing / O-S Architectes

© Luc Boegly

Architect: Ateliers O-S Architectes
Location: , France
Client: Logivie / Batigère
Budget: 4,162,000 € HT
Area: 3,260 sqm
Consultants: EUCLID
Photographs: Luc Boegly

© Luc Boegly

URBAN SEQUENCE

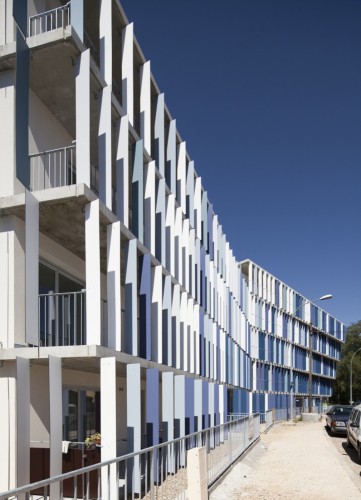

Located on a former industrial site, the project of 39 social apartments is part of a master plan of three housing projects organized around a generous garden. The project stands along Rue Pierre Vaux made up of two volumes of three and four floors. Its corner situation implies a specific work on this urban link.

The building adopts the inflection of the street, while the gabled facades usually blind are open to the neighborhood. A wide deck adjacent to the building overlooking the central garden, articulates and connects its level with the ground floor apartment level.

© Luc Boegly

The project reflects a process of dialogue against the reluctance toward the social housing realized by a property developer. Because we gain the trust of our client, we were able to work in partnership to meet the needs of this project (density, cost surfaces, simple organization of the units), while working on the specific urban conditions and the quality of the outdoor private spaces.

ARCHITECTURAL CONCEPT

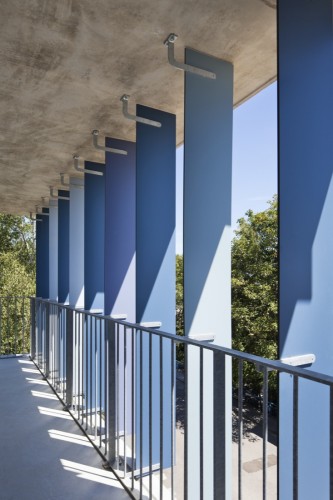

The building was designed and built based on two principles: density and generosity for the city and for the users. Housing are organized in a single volume surrounded by balconies, whose privacy is ensured by a set of colored wooden slats.

© Luc Boegly

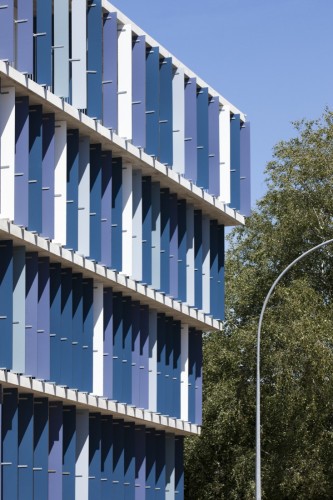

The work on the envelope provides a strong identity to the building, gives a kinetic character to the facades and offers sun and visual protection. As a vessel of a thousand sails reflecting the various colors of the sky, the project provides a range of colors from white to blue, which vibrates with the changing light of the day.

The project contrasts with the heterogeneous architecture of the neighborhood, and brings a hint of color and a sensitive daring. The floors slide with each other, creating the effect that the volume gradually opens out. As a boat deck, the balconies are real external rooms that are now inhabited in many different ways.

© Luc Boegly

HOUSING LAYOUT

The apartments are organized around two vertical distributions, one for each part of the building. The A cage distributes 16 apartments by a staircase with natural light, the B cage distributes 23 apartments by a lift and a staircase. A basement level provides a 39 car park places.

© Luc Boegly

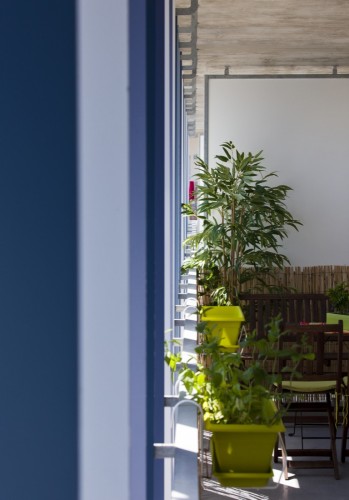

Most of the apartments have several exposures, because of the different situations offered by the building. A void in the garden facade also provides light to several adjacent apartments. Each room has an outdoor extension. The balconies become real appropriated places allowing different uses, protected by the slats of the facade.

INTERIOR COMFORT

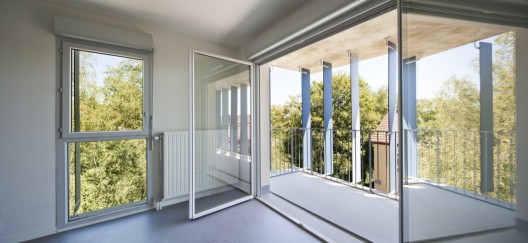

The plans of the apartments have been optimized to reduce the surface of the corridors. Generous openings light up all the rooms including kitchens.

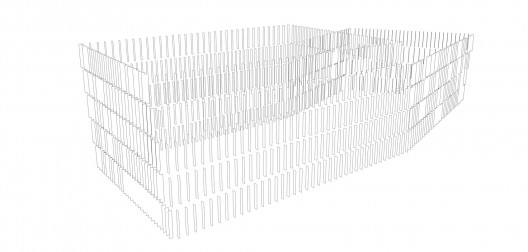

Axon 01

The project is part of an environmental approach, respecting the THPE 2010 objectives and the CERQUAL profile A certification. To achieve these objectives the thermal insulation of the building is reinforced and all thermal bridges phenomena are reduced. The compact construction also minimizes heat loss. The solar orientation has been optimized to take advantage of free solar gain.

Axon 02

This project is a simple answer to the sustainable development concerns and to the particular urban context. It is an ambitious project for a social property developer who has transformed an ordinary commission to provide quality housing with generous living spaces.
