Following their success in winning first prize in an international competition, the architects von Gerkan, Marg and Partners (gmp) have been commissioned to realize a tower block complex of ten buildings in Nanjing. The design by gmp is for a financial enterprise center on a site of about 80,000 square meters in this large eastern Chinese metropolis. The above ground gross floor space of the 120 to 200 meter high tower blocks will be about 500,000 square meters. More images and architects’ description after the break.

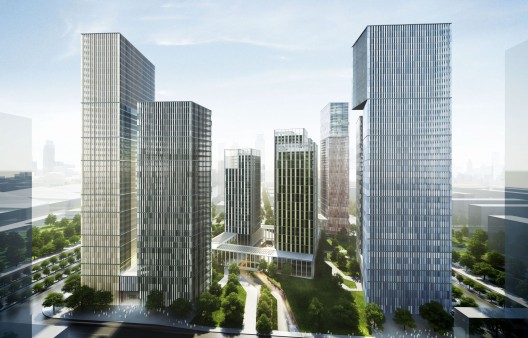

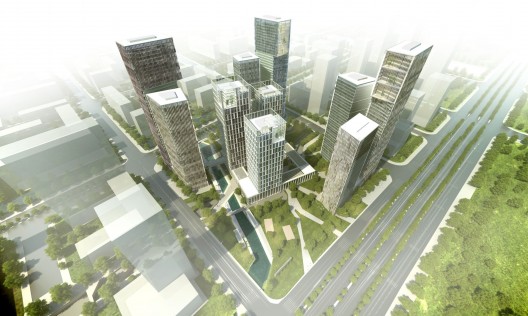

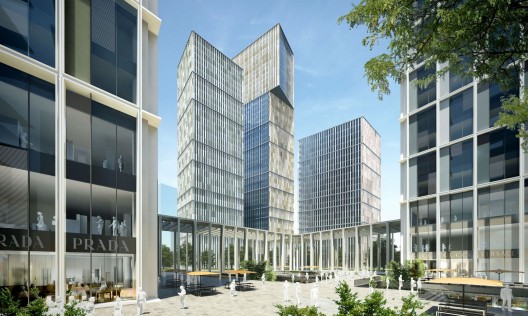

A 14 meter wide river crosses the site to the north of the future financial center; a 28 meter wide green belt runs through the development, which is served by an underground railway line. The design idea is based on the following features: the outer edges of the site are bounded by the buildings, providing generous space for green areas and footpaths in the clearly defined central area. The architects have arranged the tower blocks on the site in a windmill sail pattern arranged in a clockwise direction, creating an outer ring of seven 120 to 200 meter high, and an inner ring of three 130 to 150 meter high buildings.

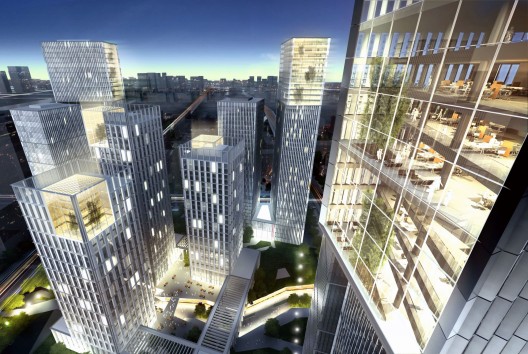

The facade concept plays an important role in terms of the sustainability of the design, as it helps to conserve energy and to ensure the well-being of users: the facades of the outer buildings rely on the natural shading from vertical shading fins which are arranged in such a way that they prevent solar heat gain from the low sun positions in the east and west. Large window elements between the shading fins let in daylight from the north and south. The three inner tower blocks use the principle of double-skin facades with counter sash windows featuring individually controllable solar screening which is protected from the weather and avoids the need of darkened solar protection glazing. This means that the offices do not require artificial lighting during the day, which conserves energy and protects the environment.
The color scheme of the facades is reminiscent of the Nanjing city wall. The dominant scheme is based on the different color shades of burnt brick, and so each block is given its own identity with a different coloring.
Architect: gmp Architekten Location: Nanjing, China Design Team: Meinhard von Gerkan and Nikolaus Goetze Associated Partner: Marc Ziemons Project Management: Jan Blasko Team: Matthias Heck, Bastian Bartz, Oliver König, Philipp Schneider, Mei Pan, Tim Leimbrock Client: Nanjing Financial City Construction and Developement Co. Ltd.
