Mckenzie House / Atelier Workshop

© Paul Mcredie

Architects: Atelier Workshop
Location: Hawkes Bay,
Structural Engineer: Spencer Holmes – Peter Smith
Project Year: 2007
Project Area: 80 sqm
Photographs: Paul Mcredie

The site is part of an apple tree orchard laid in rows on a 4x3m grid on the plains of Hawkes Bay. A long access route to the property provides a sense of isolation from all neighboring properties.

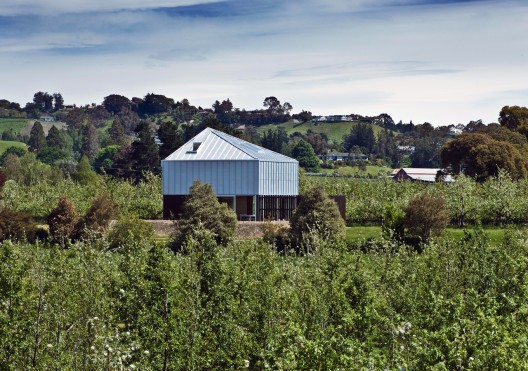

A gentle slope on the eastern side leads down to the riverbank of the Tukituki River, this orientation also takes in the lane that leads to the existing John Scott house. Above the level of the trees there are extensive views-to Te Mata peak, the valley of the Tukituki river and the distant Tararua ranges.

© Paul Mcredie

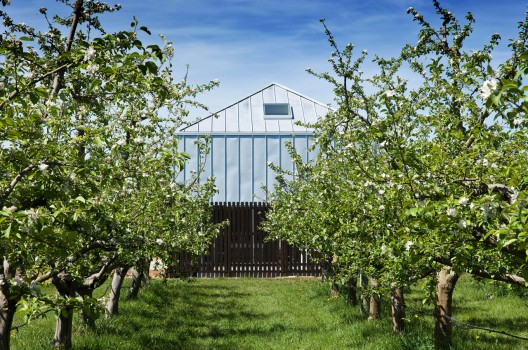

Our aim was to insert the new house into the orchard thereby providing a sense of isolation from the existing house and giving the feeling of being nestled within the apple orchard. We aimed to contrast this sensation with the feeling of looking over the trees, providing spaces that sit in the canopy of the trees and take in the larger landscape that is unique to Hawkes Bay.

© Paul Mcredie

Another priority was to create a house that responded to and acknowledged the existing John Scott designed house: simple volumes juxtaposed and connected to capture the best views and orientation: the volumes are pushed out from a centre.

© Paul Mcredie

For these reasons, we designed the new building as a simple two level, compact, cubic volume reintroducing and abstracting the themes developed by John Scott. Our choice was to create a volume that combined at the same time the introverted effect and the outward looking. The introverted sensation was be developed through the ground floor level of the house by being part of the grid of the surrounding orchard.

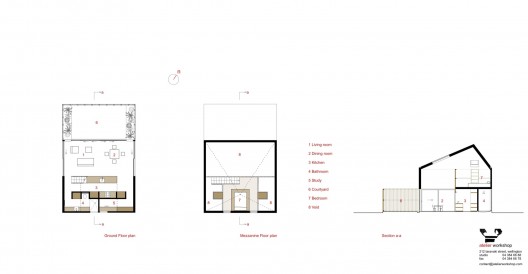

Section & Floor Plan

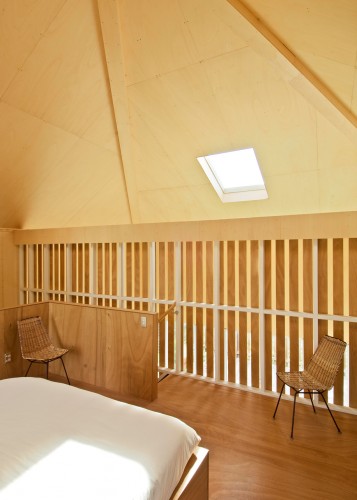

The upper level contains the bedroom and provides a relaxing area where the distant views can be enjoyed from within the canopy of the orchard. A simple pallet of materials was used playing with the contrast of smooth and textured materials. We aimed to create a house that is low energy through the use of solar passive design principles while allowing for the possible installation of active systems at a later stage.

© Paul Mcredie
