Allen Residence / Skiles Architect

  • 01:00 - 29 September, 2011
Allen Residence / Skiles Architect
Allen Residence / Skiles Architect, Courtesy of Albert Skiles
Courtesy of Albert Skiles

Courtesy of Albert Skiles Courtesy of Albert Skiles Courtesy of Albert Skiles Courtesy of Albert Skiles +22

  • Architects

  • Location

    Fayetteville, Arkansas, United States
  • Architect

    Skiles Architect
  • Project Team

    Albert B. Skiles and Lisa Knemeyer Skiles, AIA
  • Consultants

    Gary Kahanak, Home Energy Consultants (Energy Star 5+ certification)
  • Contractor

    Steve Powell, Hickory Creek Builders, Inc.
  • Clients

    Myria and A.J. Allen
  • Total Area

    2,596 sqf under roof (residence / two car carport / workshop / screen porch and front entry porch)
  • Area

    1358.0 sqm
  • Project Year

    2011

From the architect. Fayetteville is located in the Arkansas Ozarks and is home to the University of Arkansas, including the Fay Jones School of Architecture. One of the home owners is a Professor and Director of Graduate Studies for Fulbright College of Arts & Sciences, and used the home design and building process as an example in her Environmental Communications course.

Courtesy of Albert Skiles
Courtesy of Albert Skiles

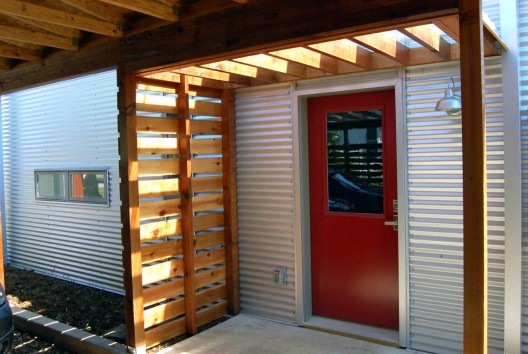

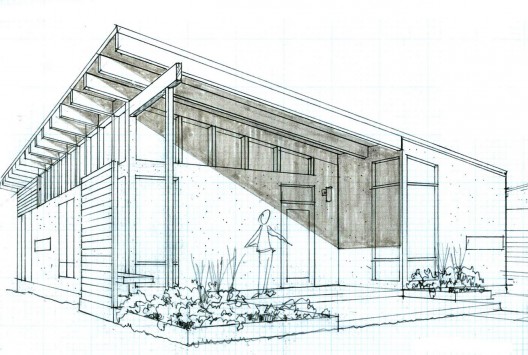

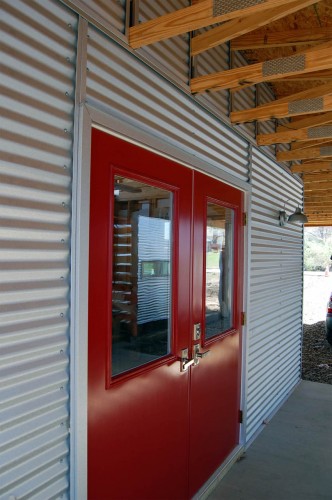

The Allen residence is a two bedroom residence with carport and workshop on a small infill lot that incorporates environmentally aware construction methods, materials and passive solar design. Described as “Sustainable Modern” by its owners, this residence is characterized by two simple shed roofs at opposite slopes, separated by a narrow breezeway. The resulting wing like form stands dramatically on a narrow lot among quiet ranch homes in Fayetteville’s Historic District.

Plan
Plan

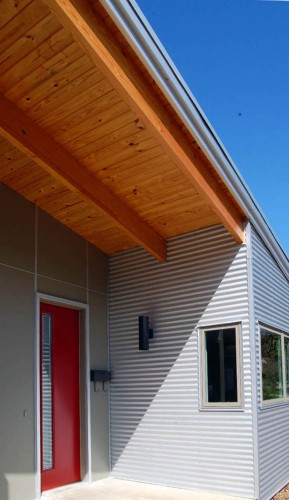

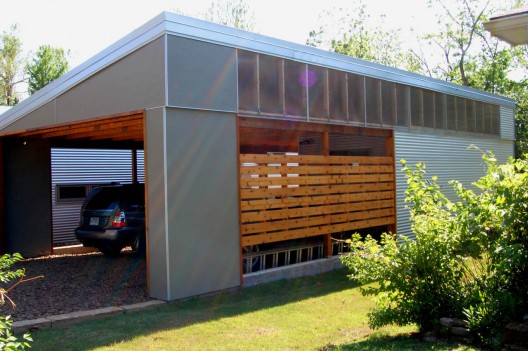

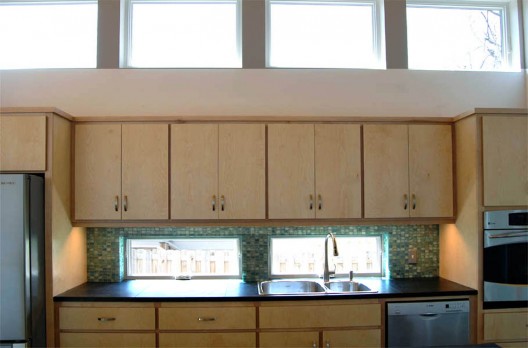

The owners asked for a design that was to be energy efficient and built with methods and materials that considered environmental impact. The home’s long south facing façade with a ribbon clerestory provides passive solar heating and three foot overhang minimizes summer heat gain. The minimal exterior palette of fiber cement board, galvalume and cedar slates has durability and potential for reuse.

Courtesy of Albert Skiles
Courtesy of Albert Skiles

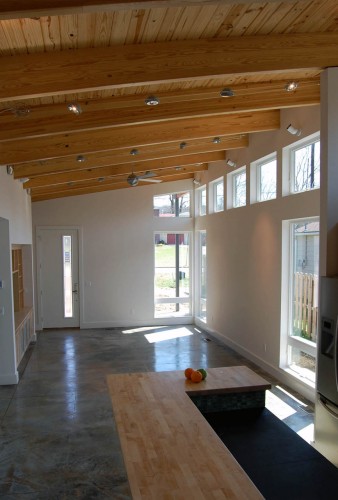

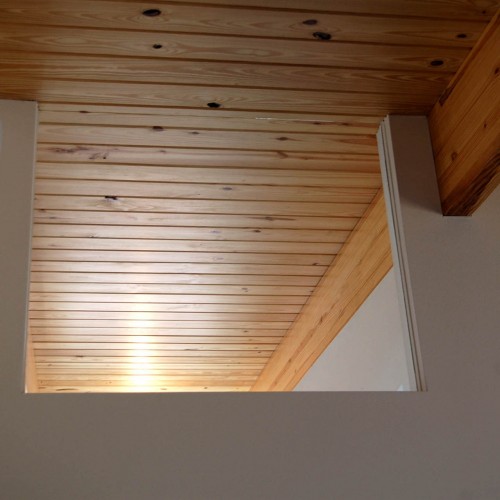

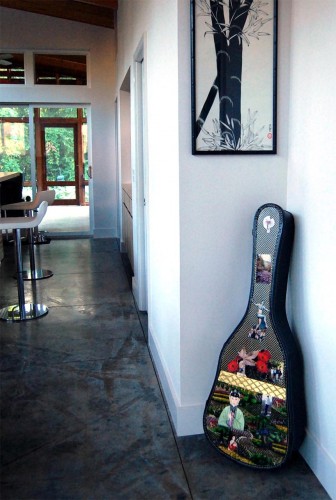

The project earned an Energy Star 5+ certification. Other features include geothermal heat pump with radiant concrete floors, SIP roof panels and a generous screen porch to block the west sun. The cathedral ceilings, with exposed laminated beams and pine decking continue to the exterior porches to blur the line between inside and outside. The narrow footprint allows for natural light to permeate and enliven the interior.

Courtesy of Albert Skiles
Courtesy of Albert Skiles

Text provided by Skiles Architect.

Courtesy of Albert Skiles
Courtesy of Albert Skiles
