Minimum House / Scheidt Kasprusch Architekten

  • 01:00 - 20 September, 2011
Minimum House / Scheidt Kasprusch Architekten
Minimum House / Scheidt Kasprusch Architekten, © Christian Gahl
© Christian Gahl

© Christian Gahl © Christian Gahl © Christian Gahl © Christian Gahl +17

From the architect. The minimumhouse at Mellensee, situated to the south of Berlin, is a prototype for a serial holiday and residentialhouse. Under the label minimumhouse it is offered including all furniture and fittings. The concept was developed by the ideal of a house with maximum outdoor impressions and also by making full use of the solar yields for the building.

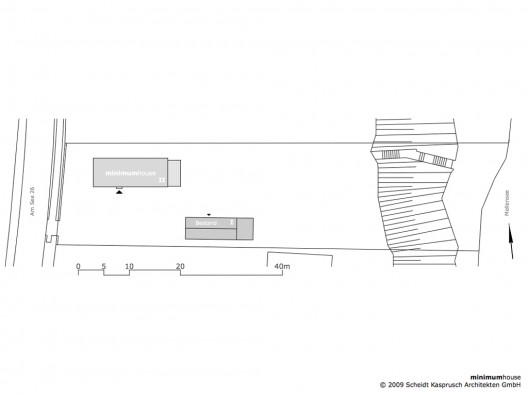

Site Plan
Site Plan

The reflections of glass and light make the three-side glassed building shells appear immaterial. The team consisting of architects, engineers, building physicists and executing companies developed a modular building concept, that allows a contemporary open-plan living with high ecological and economic standards.

© Christian Gahl
© Christian Gahl

The Institute for Building and Solar Technology, Braunschweig developed in several simulations various thermic and technical alternatives for the building services to obtain the optimal solution for each location. The annual heating requirements answer to the low-energy standard. Soil sensor, ceiling-mounted radiation heating, controlled ventilation and a heat recovery support thermic automation. A bus system constantly supervises and regulates the house.

© Christian Gahl
© Christian Gahl

The floor plan organisation and the ideal orientation of the house –north side closed, the other sides paned- enable active and passive use of solar energy. A solar system is placed on the extensively vegetated flat roof.

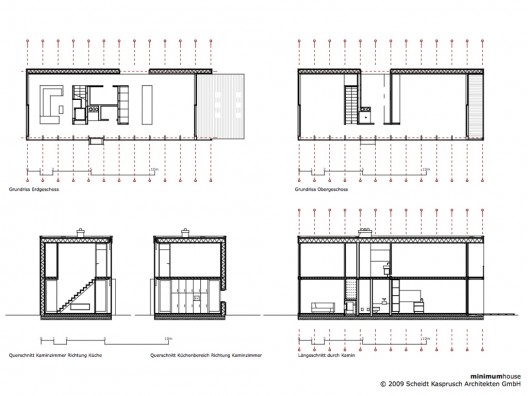

Floor Plan & Sections
Floor Plan & Sections

The northern wall is a highly insulated, two-shell timber frame construction. The southern facade is a flush fixed glazing mullion-transom construction. Sliding windows permit to open the west and east facades. A core, that is placed in this volume, integrates building services, closet and flight of stairs and also divides the ground plan into zones. All materials and surfaces used for the minimumhouse have been chosen in accordance to ecological and sustainable criteria.

© Christian Gahl
© Christian Gahl
