Tea Pavilion on the Water / Tze-Chun Wei

Courtesy of

Architect: Tze-Chun Wei
Location: Changhua,
Collaborators: ARJR Architects Associates
Project Area: 166 sqm
Project Year: 2008
Photographs: Courtesy of Tze-Chun Wei

Courtesy of Tze-Chun Wei

Tea Pavilion on the Water is a project designed by Tze-Chun Wei in 2006 when he graduated from Cheng-Kung University. The pavilion is located at the site of an old factory in a suburb of Taiwan. The site contained an original fire control pool that is no longer in use. The programatic concept was to build a pavilion as both a reception in the day-time and a living room for the family in the night.

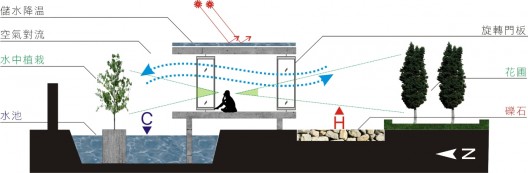

diagram

Tze-Chun Wei described the initial idea of the design as a way to bring in the water and garden landscape on site with the construction of the pavilion. He then explains that four elements are used conceptually in this design: wind, light, vegetation and water. Then as an open platform in the background he could merge the elements as a design theme of the building.

Courtesy of Tze-Chun Wei

After several discussions with the client, their suggestion is to merge the original landscape on the site with the new build pavilion where the water and the garden are surrounded. Four elements are concerned in this design, wind, light, vegetation and water, and an open platform that links theses elements as a key theme of the building.

Courtesy of Tze-Chun Wei

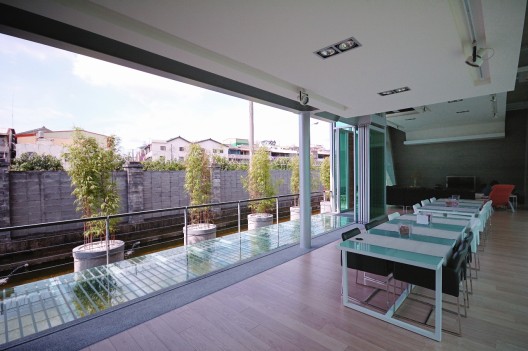

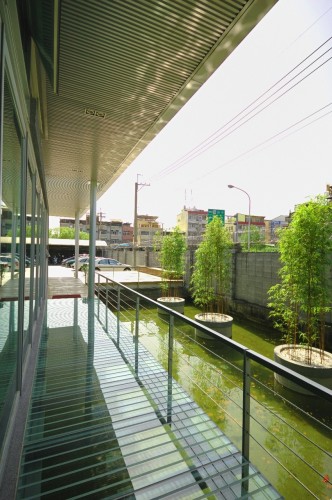

Wind: The full height sliding doors can be fully opened in order to gather more air circulation during the summer. Using the temperature differences between water and gravel to trigger air flow circulate inside the room. Light: Using as much natural light as possible for illumination and avoid direct sun light by arranging the largest opening on the north and the south. Vegetation: The south glazing is facing the original garden for the best view, and by planting bamboo on the pool to act as a filter from the disturbances on the street plus it gains more green into the interior.

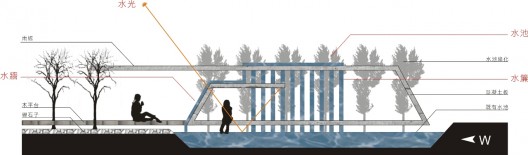

section

Water: The main theme of the design (four water expressions)
1. The Roof: The roof for water storage can block the heat of the sun light, and it is the beginning of the water journey.

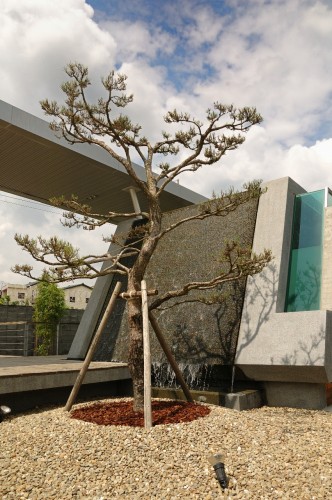

2. The Water Wall: A slope where water falls from the roof, the water sound creates the atmosphere of the space.

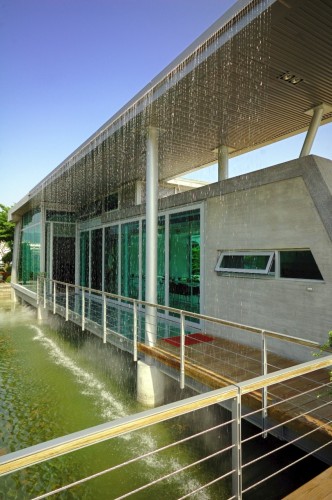

3. The Water Curtain: The water curtain from the entrance to create a water passage to filter the cool air into the room.
4. The Water Reflection: The reflection of the water pattern projects on the exposed concrete ceiling as a motion painting inside the room.

Text provided by Tze-Chun Wei.
