ORDOS 100 #27: Multiplicities

Mar 2009

By Nico Saieh — Filed under: Houses , Brick, China, Masonry, Multiplicities, Ordos 100

▼

Add this to My Bookmarks:

share by email

share by email

This villa is located in plot #24 of the ORDOS project.

Architects: Multiplicities
Location: Ordos, Inner Mongolia, China
Project Team: Daniel Holguin, Issei Suma, Perla Pequeño, Joanna Park Sohn, Christopher Chan, Nicole Rodríguez, Masayuki Sono
Consultants: Methus Srisuchart + Tatchapon Lertwirojkul / Jee Won Kim Architect / ID engineers
Design year: 2008
Construction year: 2009-2010
Curator: Ai Weiwei, Beijing, China
Client: Jiang Yuan Water Engineering Ltd, Inner Mongolia, China
Constructed Area: 1,000 sqm aprox

(X)

white lung + black skin = ( ) + X = (X)

(X)

The “( )” is imploded by the “X “that expands and contracts from within, creating a dramatic void and multiple terraces at different levels from which to view the surrounding river landscape.

The “( )” is made of black brick whild the “X” is made of white quartz white plaster. Both elements change its density by allowing different types of screen to filter the sun, water, light and air inside the inhabitable spaces.

(X)

Situated at parcel number 24, the (X) house’s life revolves around a series of intersecting patios that inhale/exhale everything it needs and wants at different times closing tired cycles and opening new ones.

The white lung takes and bounces light and air inside the house to keep the black skin healthy. The black skin absorbs heat and gives protection and warmth to the lung as well as varied activities, providing different programmatic thicknesses creating buffer zones wherever it is necessary.

(X)

The organizational principles of the house start with the understanding of the modular brick system and its multiple possible permutations and material properties. Taking the brick as a unit that can weave an infinite matrix of conditions with variations on density, texture, thickness, we are interested in “designing the conditions as opposed to conditioning the design”. By establishing a matrix of permutable conditions, we create a system that can gradually change its properties throughout the building and adapt to its final ideal configuration giving flexibility to the built object.

(X)

Entering the villa through one of the “X’s” funnels, residents and visitors encounter the void that works as an atrium throughout the house.

The first patio is the main access to the small living room that overlooks both voids. The second patio is directly linked to the pool and the sauna which at times can overflow inundating the patio in a seasonal basis. We think that this will perform as a huge humidifier during dry seasons.

The voids “infect” the house with terraces on all levels providing different gardens and atmospheres making possible a vast range of living conditions.

: ground level plan

: second level plan

: third floor plan

: roof plan

: skin elevation

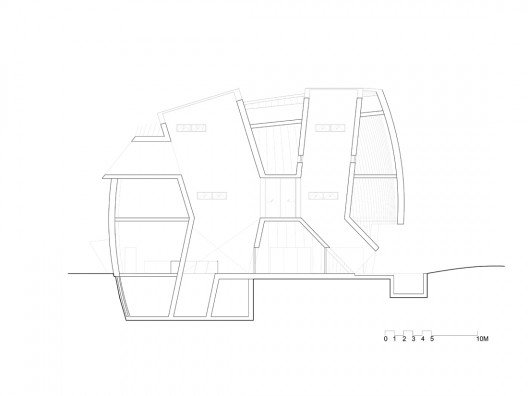

: section AA

: section BB

: section CC

: interiors axo
