ORDOS 100 #26: FRENTE
This villa is located in plot #35 of the ORDOS project.
Architects: FRENTE / Juan Pablo Maza
Location: Ordos, Inner Mongolia, China
Design year: 2008
Construction year: 2009
Curator: Ai Weiwei, Beijing, China
Client: Jiang Yuan Water Engineering Ltd, Inner Mongolia, China
Constructed Area: 1,000 sqm aprox
The immediate context drove the decision of designing an introvert villa. As a result of the extreme weather, it has been chosen to bury the house taking advantage of the generosity of underground temperatures and therefore neutralizing the harsh winter and summer weather conditions.
On the other hand, realizing the good weather during spring and autumn times, the villa responds to this duality by leaving a part of the construction completely exposed, and therefore completely extrovert. This way, the villa celebrates the duality of an introvert-extrovert house.
By taking advantage of the apparent duplicity of the required areas, eighty percent of the program has been maintained in a “big villa” (buried), which lives around an internal courtyard, in a scheme that promotes family interaction and emphasizes the sence of community. The duplicate program is separated and put into a mass equals to the size of the courtyard, thus creating a private “small villa” (floating) which gains the views and gives any family member the opportunity of temporal isolation.
By dividing the program (underground and floating), the ground floor is freed allowing it to be used as public space without loosing privacy.

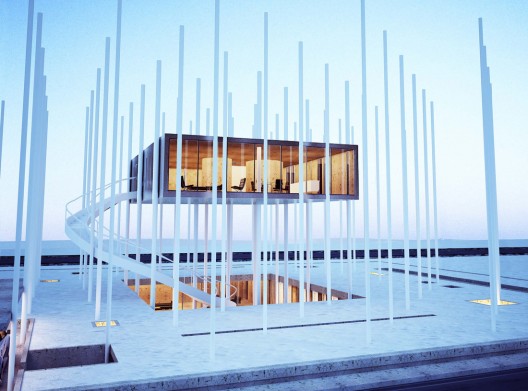

The main landscape idea, is to suggest a forest within a desert environment. This forest is made out of steel columns that act as “camouflage” for the floating villa’s structure, and also gives the visitors a consciousness of trespassing private area.
-
- lower level plan
-
- ground level plan
-
- upper level plan
-
- section 01
-

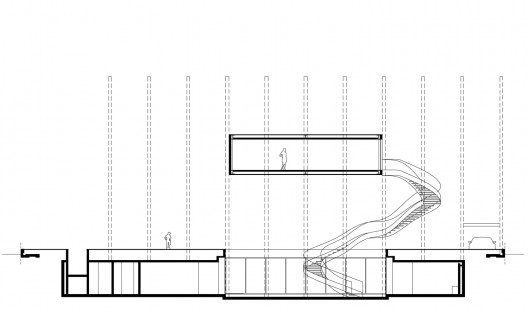

- section 02
-
- section 03
-
- section 04
-
- section 05
-
- section 06
-

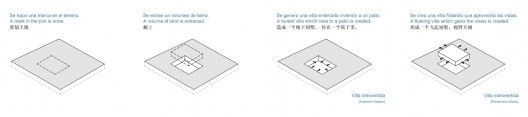

- concept diagrams
-
- solar diagram
