Maple Leaf Square / KPMB Architects

© Tom Arban

Maple Leaf Square will create a bold and energetic 24 hour sports, entertainment and residential precinct in downtown . Situated between the Financial District to the north and Harbourfront to the south, and anchored by the adjacent Air Canada Centre, the new complex will consolidate this precinct into a vital sports and entertainment district in the city.

Architect: Kuwabara Payne McKenna Blumberg (KPMB) Architects
Location: Toronto, Ontario, Canada
Project Area: 1,135,431 sqf
Project Year: 2011
Photographs: Tom Arban

© Tom Arban

The design integrates two slender residential towers with a mixed use podium comprising retail, entertainment, hotel, daycare and office space. The podium, or base, is distinguished by a frit glass ‘wrapper’ floating above the retail base that carries large-scale signage visible from the Gardiner Expressway. The glass wraps continuously around the podium, interrupted only at the northwest and southeast by stone corners. The roof of the podium will be landscaped into a series of courtyards and terraces for hotel, daycare and residential uses.

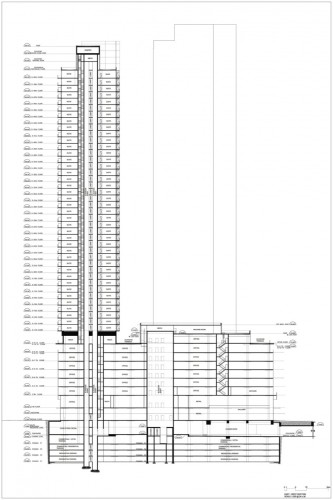

section

The towers are composed of a combination of pre-cast masonry, large expanses of vision glass, and clear and frosted glazed balconies. The diagonal shift of the frit glass from the base is reiterated in the design of the west façade of the south tower and the east façade of the north tower. The residential units within the towers will offer a series of dramatic views of the city skyline to the north and Lake Ontario to the south.

elevation
plan
plan
plan

Project Team: Bruce Kuwabara (design partner), Shirley Blumberg (partner-in-charge), Andrew Dyke (associate-in-charge), Claudio Venier (project architect), Matthew Krivosudsky, Bill Colaco, David Constable, Richard Wong, Norm Li
Architect of Record: Page + Steele Inc.
Landscape Architect: Phillips Farevaag Smallenberg, NAK Design Group
Mechanical/Electrical Engineer: Hidi Rae
LEED Consultant: Enermodal
Wind Consultant: RWDI
Code Consultant: Leber Rubes Inc.
Public Art: Karen Mills
Acoustics: John Coulter
Structural Engineer: JAP
Building Envelope: Brook Van Dalen
