House in Tainan / FCHY Architect Lab

  • 01:00 - 16 July, 2011
House in Tainan / FCHY Architect Lab
House in Tainan / FCHY Architect Lab, © Yang Hsiu Chuan
© Yang Hsiu Chuan

© Yang Hsiu Chuan © Yang Hsiu Chuan © Yang Hsiu Chuan © Yang Hsiu Chuan +23

  • Architects

  • Location

    Tainan City, Taiwan
  • Architects

    FCHY Architect Lab
  • Design Team

    Yang Hsiu Chuan +Kao Ya Feng + Shih Chi Han
  • Area

    400.0 sqm
  • Project Year

    2011
  • Photographs

From the architect. The project is dealing with local traditional long slender construction base with western exposure problem. To solve the sun exposure problem, we design a special Hybrid Surface Framework. Using a Double-Layer Structure to solve the issue of the base and create an interesting urban landscape.

© Yang Hsiu Chuan
© Yang Hsiu Chuan

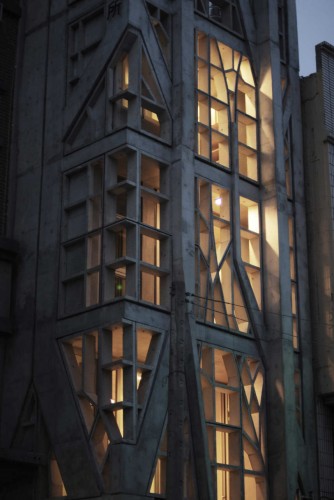

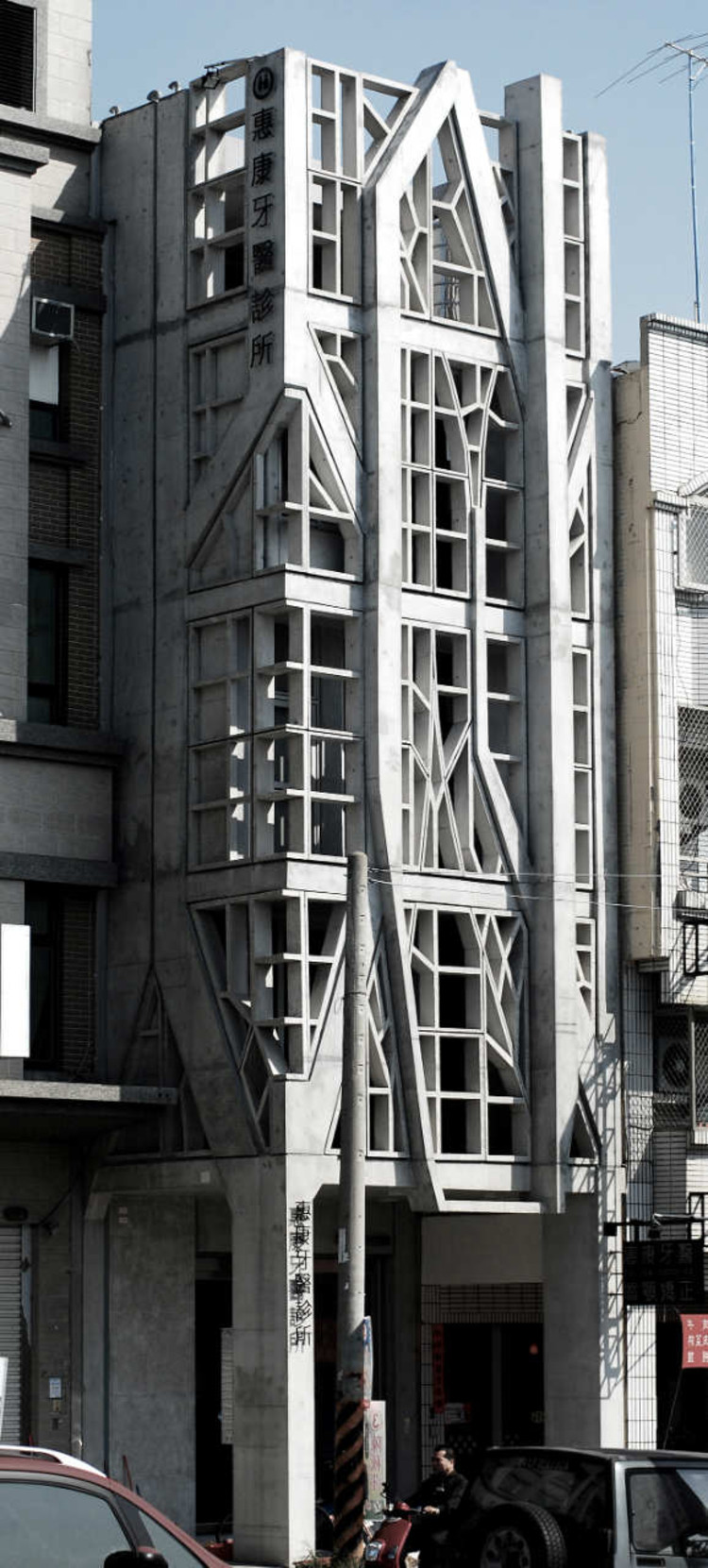

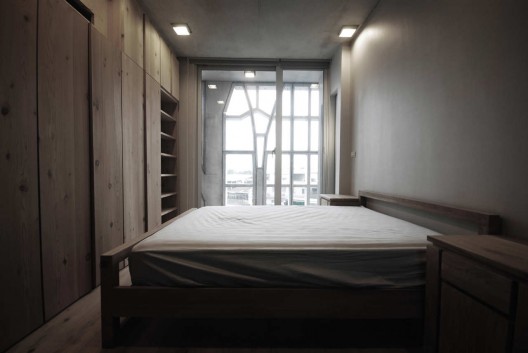

The irregular hollow bricks form the first surface of the house, it create a magnificent facade, and reduced the problem of western exposure. The second layer is a glass layer between balcony and interior. This Double-Layer Structure creates a special interior lighting at night and reduces the direct impact of wind.

© Yang Hsiu Chuan
© Yang Hsiu Chuan

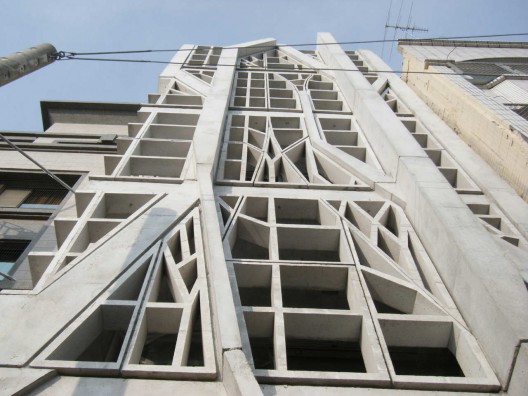

The elevation of structures looks like veins. Due to the special design of facade, people outside can see the human activities inside the house, but not very clearly. Those human activities are projected on glass facade but fractionalized by Hollow brick. The hollow bricks in here connect inside and outside, keeping a good privacy, and create a good link to neighbors at the same time. When looking out from the room, you can vaguely see the outdoor activities but not directly exposed to the streets.

© Yang Hsiu Chuan
© Yang Hsiu Chuan

This skin is not only a cortical interface, but a interactive interface for inside and outside. This is an interesting complex and ambiguous interface between public and privacy.

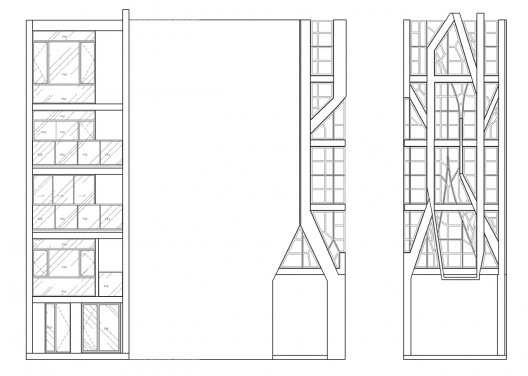

drawing 01
drawing 01

Another problem for this case, is that the sunlight cannot reach the middle part of the long house, and the interaction is not easy from space to space. We let the floor split-level, and Interact with each space by the stairs. With this design, air and light flow in each rooms and floors and people can also interact with each other easily.
