Hexigloo Pavilion / Tudor Cosmatu, Irina Bogdan, Andrei Raducanu

© Courtesy of Bence Pap

Tutors: Tudor Cosmatu, Irina Bogdan, Andrei Raducanu
Location: ,
Guest Tutors: Andrei Gheorghe, Alexander Kalachev, Bence Pap
Students: Alexandru Damboianu, Andreea Nica, Andreea Hriscu, Ana Maria Pop, Bogdan Samoila, Cristian Bohanita, Daniel Mitrofan, Irina Sargov, Ina Dumitriu, Mihai Pascalau, Oena Eremia, Sorina Simion, Theodora Raduca
Photographs: Courtesy of Bence Pap

Hexigloo is a fully parametrically designed pavilion resulting out of a seven day workshop in Bucharest Romania organized by Tudor Cosmatu, Irina Bogdan, Andrei Radacau, and guest tutors Andrei Gheorge (Angewandte, Vienna) Alexander Kalachev (DIA, Dessau) and Bence Pap (Zaha Hadid Architects London). Fifty-five students participated in a week long workshop learning the basic principles of parametric design, and software, with the task to build in the second half of the week a human scale spatial installation. Out of ten projects, three were built, with the help of a laser cutter and long night work-shifts to assemble the parts.

© Courtesy of Bence Pap

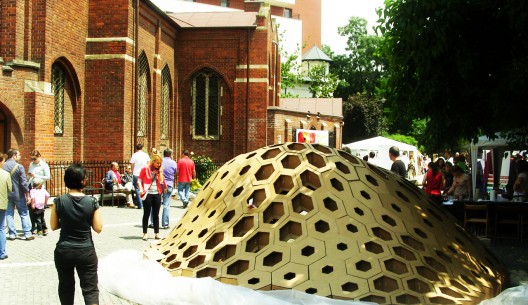

Hexigloo is a pavilion based on the cellular structure of a honeycomb applied to a igloo surface typology. From concept to the final product, the process went through following steps: mapping a hexagonal grid on a pre-modeled surface (14 rows + 14 columns, resulting in 196 elements), extruding the mapped hexagons on the Z axis in order to create a binding surface between the components and finally adding rigidity to the overall structure.

Rendering

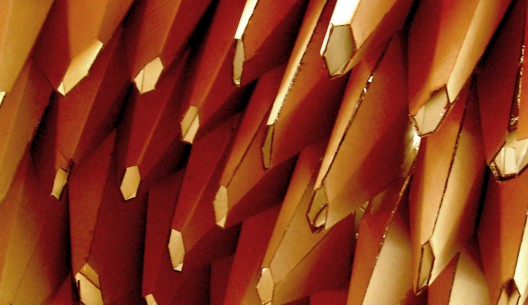

The main focus was on the interior space, which was articulated by cone like funnels that filter light into the interior space. When entering the structure, the contrast between the smooth exterior and the intricate interior reveals a moment of surprise.

© Courtesy of Bence Pap

Approximately 2200 linear meters were cut at the laser cutter for this installation and it was made out of 6mm cardboard. Two teams of participants were created in order to assemble the laser cut components. One team assembled the pieces in their three dimensional shape, while the other team stitched the components together creating the final overall structure. To make the job easier, we subdivided the whole volume into subassemblies. The whole process lasted approximately 80 hours.

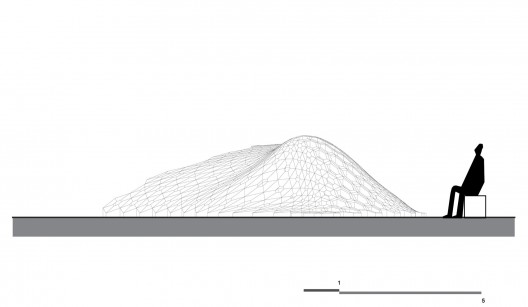

Elevation

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Hexigloo Pavilion / Tudor Cosmatu, Irina Bogdan, Andrei Raducanu" 01 Jul 2011. ArchDaily. Accessed 26 Oct 2014. <http://www.archdaily.com/?p=146764>
