L71 House / OFFICE AT Co.

  • 01:00 - 23 June, 2011
L71 House / OFFICE AT Co.
L71 House / OFFICE AT Co., © Wison Tungthunya
© Wison Tungthunya

© Wison Tungthunya © Wison Tungthunya © Wison Tungthunya © Wison Tungthunya +48

From the architect. The L71 house is a single family house located on the northeastern side of Bangkok, Thailand. The site for the house is a long and narrow shape site. All of the house programs such as 4 bedrooms, dining room, and family room are place along the site to face the North.

© Wison Tungthunya
© Wison Tungthunya

Since the owners have occasional parties, the public areas, such as living room and parking, are in the front of the house, and the private areas are in the back of the house along with a swimming pool.

Plan
Plan

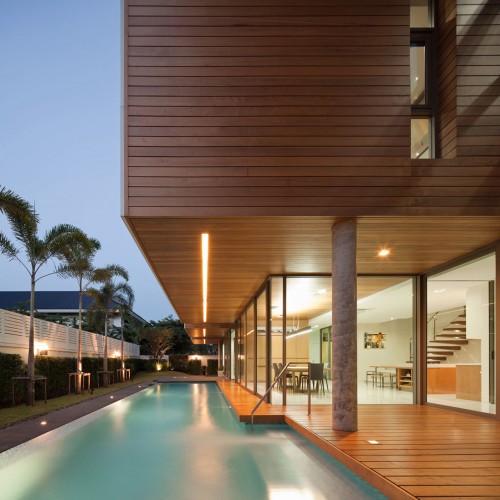

The living room mass was extended to create private space for the swimming pool and the second floor mass was extended to create shading for the swimming pool and terrace.

© Wison Tungthunya
© Wison Tungthunya

If the house is designed as one big mass it will block ventilation and natural light, so in this house each room is split to maximize ventilation and natural light.

Plan
Plan

Since the masses are split, it creates some semi outdoor space to interlock indoor and outdoor space. Varieties of natural materials including water, grass and wood are inserted into each space.

© Wison Tungthunya
© Wison Tungthunya

The roof of the main house is double-roof to cover the house from weather. The lower roof is reinforced concrete slab, and the upper roof is metal sheet roof.

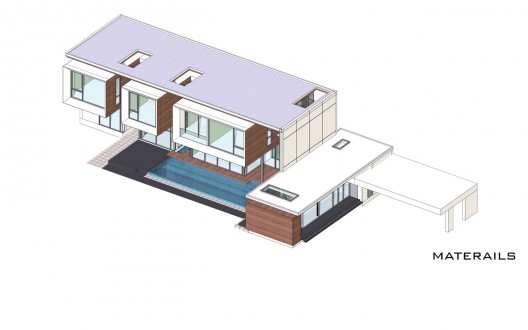

Materials
Materials

A space between the two layers of roof acts as an air buffer, natural ventilation and allows for easy maintenance. Main material of this house is painted plastered brick wall and tint glass. Where the masses are splitted, the material of the splitted masses is wood.

Section
Section
