Yale Art + Architecture Building / Gwathmey Siegel & Associates Architects

  • 01:00 - 1 April, 2011
Yale Art + Architecture Building / Gwathmey Siegel & Associates Architects
Yale Art + Architecture Building / Gwathmey Siegel & Associates Architects, Courtesy of  gwathmey siegel & associates architects
Courtesy of gwathmey siegel & associates architects

Courtesy of  gwathmey siegel & associates architects Courtesy of  gwathmey siegel & associates architects Courtesy of  gwathmey siegel & associates architects Courtesy of  gwathmey siegel & associates architects +27

  • Architects

  • Location

    New Haven, CT, United States
  • Architect

    Gwathmey Siegel & Associates Architects
  • Exterior Diagnostics/Design

    Hoffmann Architects (Partner-in-Charge: Russell Sanders; Project Architect: Kevin Magness)
  • Mechanical Engineer

    Altieri Sebor Wieber
  • Lighting

    HDLC
  • Civil Engineer

    BVH Integrated Services
  • Cost Estimating

    Faithful & Gould
  • Specifications

    Construction Specifications
  • Acoustics/Av/Telecommunications

    Harvey Marshall Berling Associates
  • Building Code

    Bruce Spiewak, AIA
  • Preservation

    Gwathmey Siegel & Associates Architects; Hoffmann Architects (Partner-in-Charge: Russell Sanders; Project Architect: Kevin Magness)
  • Security

    Ducibella Venter & Santore
  • Exterior Wall Consultant

    Gordon H. Smith Corporation
  • Environmental Consultant

    Atelier Ten
  • General Contractor

    Turner Construction Company
  • Photographs

From the architect. Yale University’s Rudolph Building – formerly known as the Art and Architecture Building – was designed in 1963 by the modern master and then chair of the School of Architecture, Paul Rudolph. It is considered one of his most important works and was recently completely renovated and expanded, restoring the structure to its original 1963 intention and providing space for the History of Art department.

Courtesy of  gwathmey siegel & associates architects
Courtesy of gwathmey siegel & associates architects

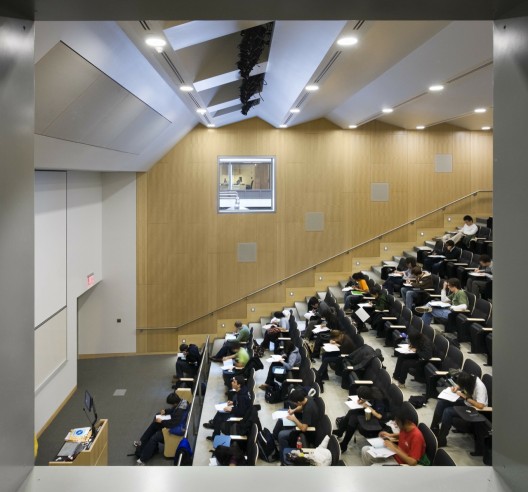

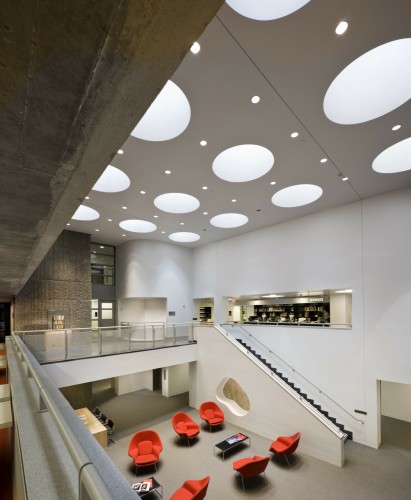

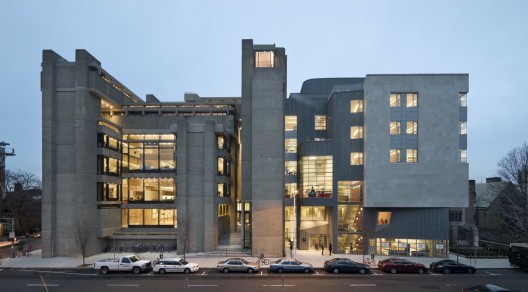

The 114,000 sqf Brutalist building, which is constructed of cast-in-place concrete, has a total of 37 different levels on nine floors, two below grade, and is a cornerstone of Yale’s vibrant arts campus. As a result of a 1996 planning study, Yale University decided to undertake the exterior and interior renovation of the structure along with the addition of a seven-story History of Art Building that allows for an expanded Art and Architecture Library, classrooms, seminar rooms, lecture halls, faculty offices, lounge, and public café. The architects designed the project to qualify for a LEED Silver rating.

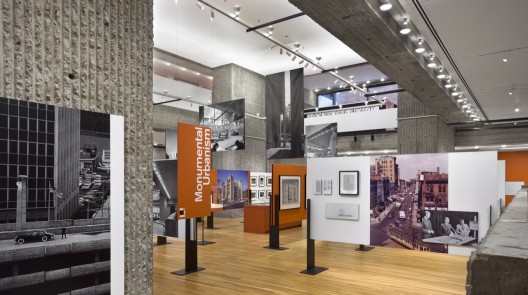

The design results from the integration of programmatic, structural and mechanical needs. It includes the restoration of exterior walls; the installation of historically correct windows; and upgrades to all building facilities including the exhibition gallery, jury and studio spaces; study areas; and administrative and faculty offices. It also introduces new lighting and furnishings throughout and brings the structure into compliance with current building and fire code regulations.

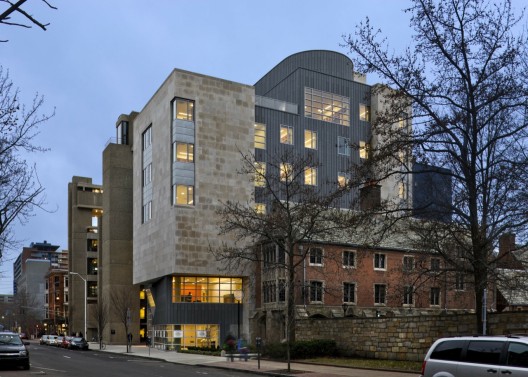

The new 87,000 sqf Jeffrey H. Loria Center for the History of Art, while an addition, is designed to present its own iconic presence in the overall composition. Its main volume is clad in limestone and zinc panels, with the intersections to the Rudolph Building rendered in glass and aluminum panels, thus reinforcing both the integration and articulation of the two structures.

Courtesy of  gwathmey siegel & associates architects
Courtesy of gwathmey siegel & associates architects

This extraordinary project represents the culmination of Charles Gwathmey’s forty-five year relationship with the university’s School of Architecture. Paul Rudolph was its chairman during Mr. Gwathmey’s studies and also became his mentor.

Courtesy of  gwathmey siegel & associates architects
Courtesy of gwathmey siegel & associates architects
Location to be used only as a reference. It could indicate city/country but not exact address. Cite: "Yale Art + Architecture Building / Gwathmey Siegel & Associates Architects" 01 Apr 2011. ArchDaily. Accessed . <http://www.archdaily.com/123171/yale-art-architecture-building-gwathmey-siegel-associates-architects/>
Read comments

34 Comments

amelia · August 05, 2011

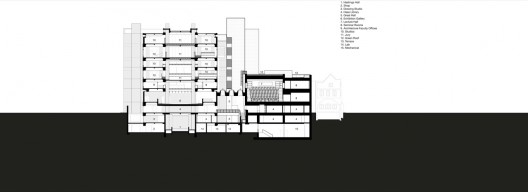

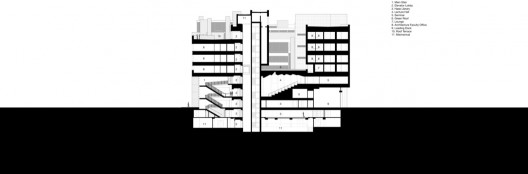

Hope this question doesn't sound 'dumb' but is this the section and plan views of the building the original design and layout, or is it the proposed new refurbishment for the building? sorry a little confused
