Bau Sallinger Office / Spado Architects

© Kurt Kuball

Architects: Spado Architects
Location: ,
Client: BM. Ing. Franz Sallinger
Site area: 14,746 sqm
Project year: 2009-2011
Photographs: Kurt Kuball

© Kurt Kuball

Analysis

The construction company Sallinger Bau GmbH is a grown family business located in the town of Liebenfels in Carinthia, Austria. It is specialized in earth-moving, structural and civil engineering. Due to the size and capacity of the company, projects of every dimension are manageable.

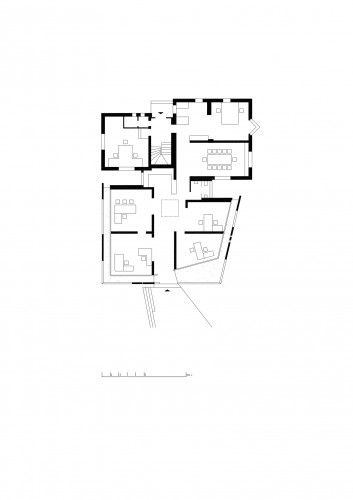

floor plan

Diagnose

The town of Liebenfels is affected by the huge amount of companies from the construction sector that had settled down there. The fact of being a family business is clearly recognizable by the former office building which was also the residential home of the family.

© Kurt Kuball

Intervention

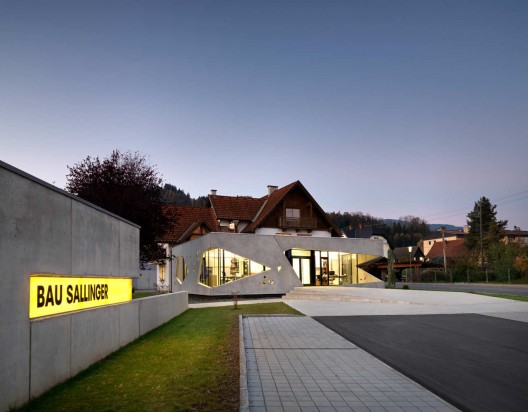

In 2009 the call for an office add-on emerged that should be designed closely connected to the existing office and former residential house of a master builder. The annex should be clearly recognizable as a new step forward in the company’s historical development. It’s a connection between old and new, while at the same time the existing building gets altered to form a unity with the new office. The office itself is a one storey building that bonds on the south side to the former residential house of the company owner’s family which is also used as additional office spadce. It has a very clear and simple form, the ceiling height of the new office equals the one of the ground floor of the house and therefore it is floating above the surrounding ground level.

© Kurt Kuball

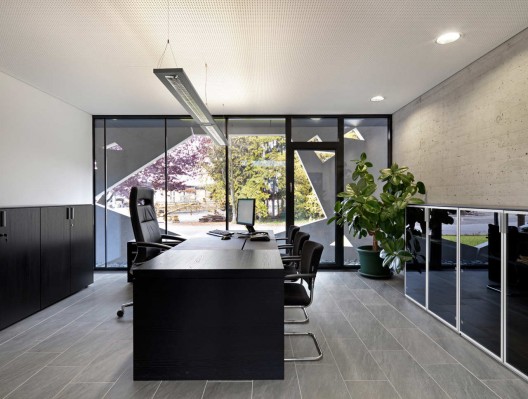

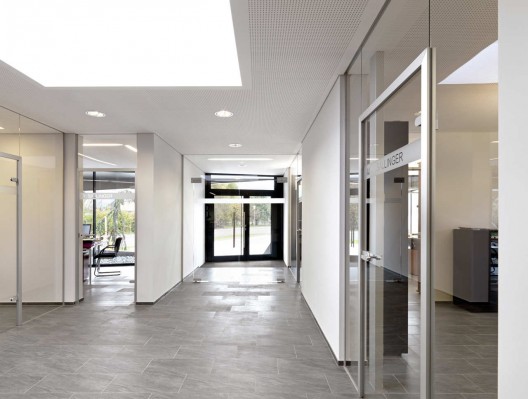

A few walls function as static elements as well as guidelines for the organization of the office space, keeping it open for future development possibilities.

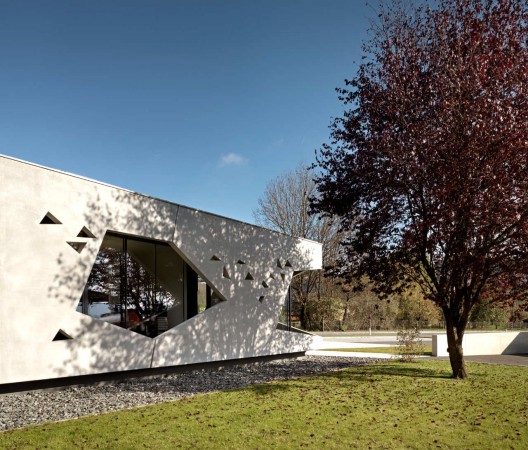

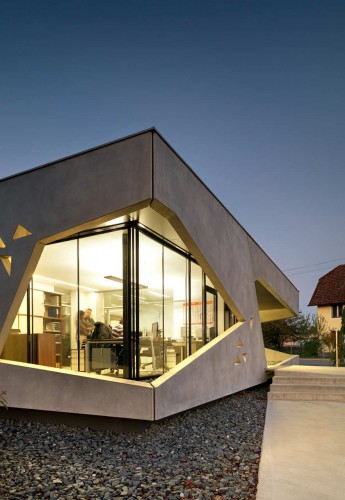

The facade is totally made out of glass with a second layer of exposed concrete in front of it. The concrete shell gets ripped open by different polygonal openings, functioning as camouflage as well as sun shading. The combination of glass and concrete stages on one hand the very basic material concrete and on the other hand the layer of glass distributes a certain depth and creates interesting and various light effects on the inside.

© Kurt Kuball

Openings

Starting from a simple geometrical shape, the triangle, the openings develop into multilateral polygons of different sizes and orientations. The polygons help to add a structure to the office and they additionally give a certain dynamic to it. They are communicating inside to outside, making it possible to identify the functions from the distance. The entrance-polygon for example is elongated with its open side facing the street, trying to guide passing spectators directly into the building, helping by giving orientation.

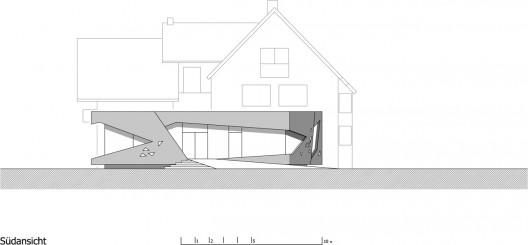

south elevation

Ramp

The ramp forms the building’s entrance, making it accessible for handicapped people as well and at the same time creating a forecourt.

View this project in Google Maps

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Bau Sallinger Office / Spado Architects" 13 Feb 2011. ArchDaily. Accessed 24 Apr 2014. <http://www.archdaily.com/?p=110161>
