House Shmukler / Tribe Studio Architects

  • 01:00 - 9 February, 2011
House Shmukler / Tribe Studio Architects

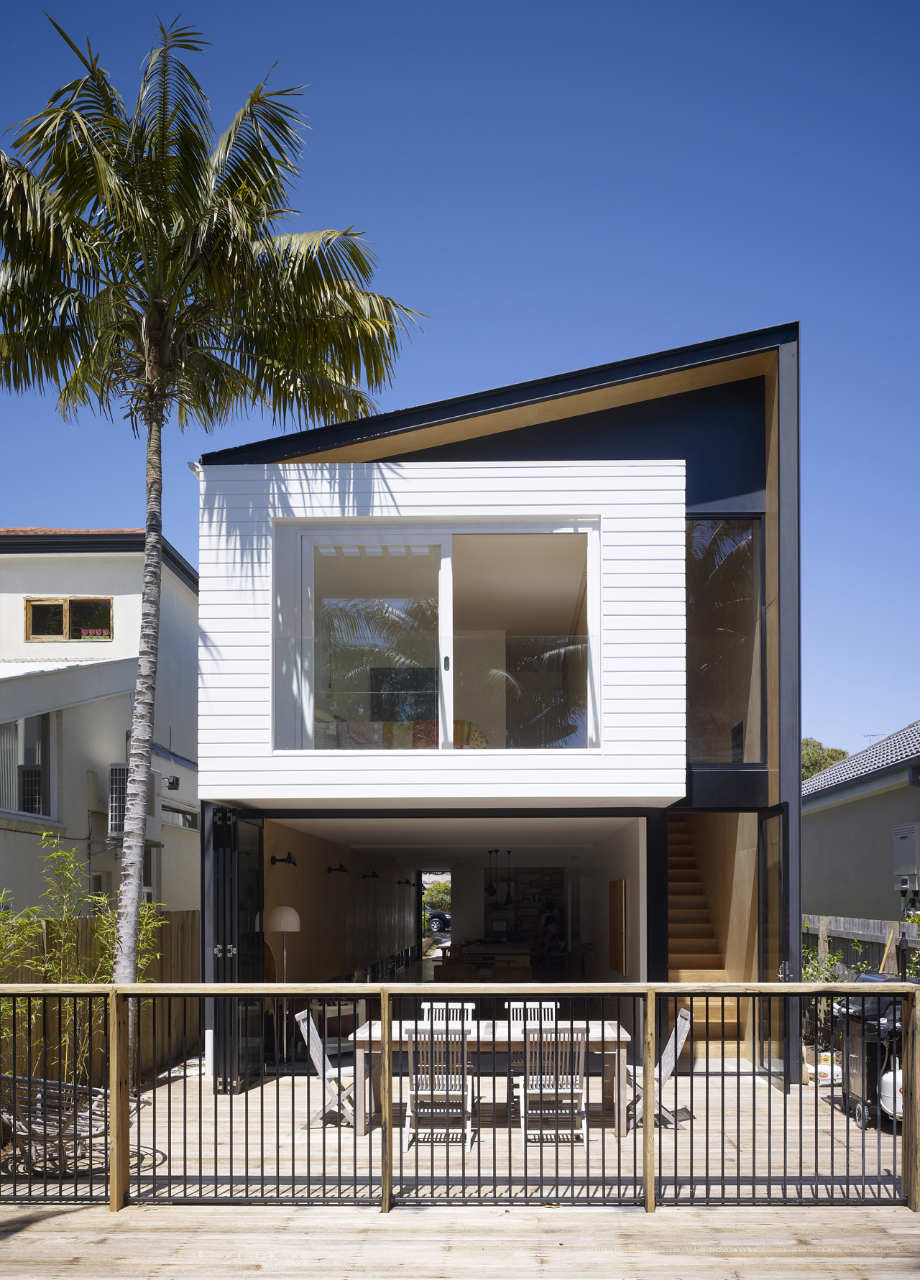

House Shmukler / Tribe Studio Architects, © Brett Boardman
© Brett Boardman

© Brett Boardman © Brett Boardman © Brett Boardman © Brett Boardman +16

  • Architects

  • Location

    Sydney NSW, Australia
  • Architects

    Tribe Studio Architects
  • Project Team

     Hannah Tribe, Josephine Hurley, Aaron Murray, Tony Tribe
  • Structural Engineer

    Cardno, Cosmo Farinola
  • Builder

    JLS Construction
  • Project Year

    2010
  • Photographs

From the architect. This house is conceived of as a series of boxes suspended in a large shed-like space. The private spaces of the house, the bedrooms and bathrooms, hover over the public spaces. Each bedroom is expressed as a box, pulled apart from its fellows creating a series of double height voids. The edges of the private spaces describe the public volumes.

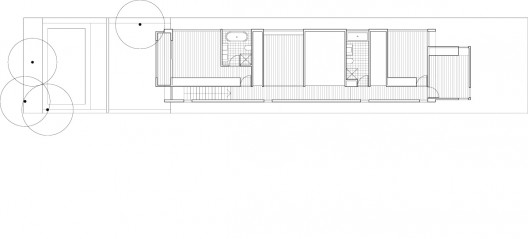

plan 02
plan 02

Built for a Sydney family, the house is on a deep, narrow, north-facing site on an unattractive beach-side suburban street.

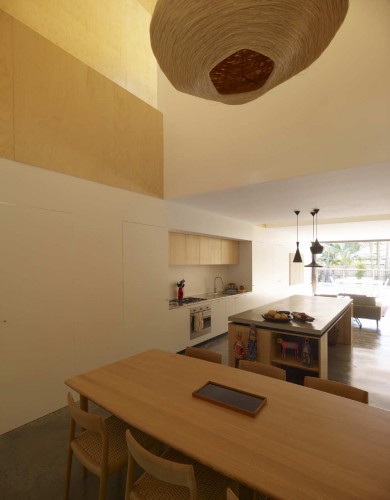

© Brett Boardman
© Brett Boardman

Our clients have 2 kids, a large extended family and live very casually, entertaining outdoors all year round.

Built to a tight budget, House Shmukler is honest in its material palette and uses industrial construction techniques. On a steel portal frame, the exterior is conceived of as a wrap of sheet metal lined in bracing ply, within which the pristine plasterboard boxes hover. The floor is structural concrete slab with in-slab heating/cooling. Low light windows and concealed operable skylights promote cross and stack-effect ventilation.

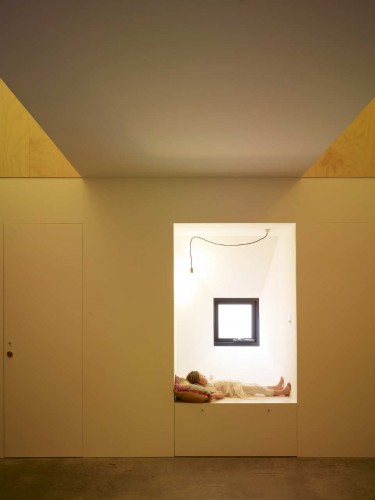

© Brett Boardman
© Brett Boardman

Side penetrations are limited to allow the house to focus on the pool and direct sunshine at the northern end, and northern light and air penetrates the depth of the plan from skylights over the double height voids.

The house revisits the separation of public and private or served and servant. It uses space around private volumes for ventilation and insulation, rethinking methods of achieving environmental sustainability in our hot climate. The house is inwardly focused, on the business of family life and on unexpected vertical internal views that change with the passage of the sun through the day.

© Brett Boardman
© Brett Boardman
Cite: "House Shmukler / Tribe Studio Architects" 09 Feb 2011. ArchDaily. Accessed . <http://www.archdaily.com/109341/house-shmukler-tribe-studio-architects/>
