28 Social Housing In Paris / KOZ Architectes

Jan 2011

Uploaded by Andrew Rosenberg — Filed under: Housing ,Selected , Concrete, France, KOZ Architectes, Paris

▼

Add this to My Bookmarks:

share by email

share by email

Architects: KOZ Architectes
Location: Paris, France
Structure: EVP Ingénierie
Project area: 440 sqm
Project year: 2007 – 2010
Photographs: Guillaume Grasseet, Jean-Baptiste Pellerin

Key points

The complex comprises 28 apartments, a shop, a business premises and a basement for parking. Reinforced concrete structural system. Coloured high-density laminated panels. Rain-water collection, planted roof, heated flooring, external wood/aluminium joinery, loggia and private walkways for all apartments.

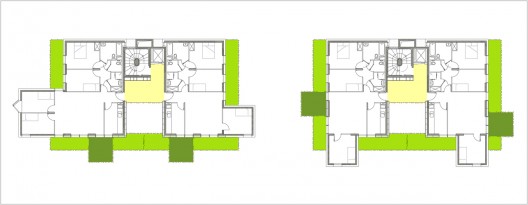

plan 03

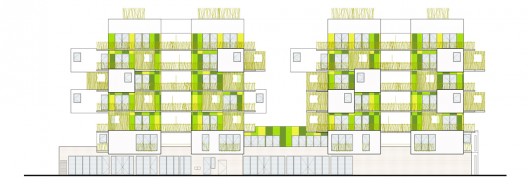

elevation 02

Environmental quality

THPE RT2005: 70 kwh/m2/year; systematic exterior insulation, including parapet; thermal bridge breakers; heated flooring; natural lighting of all rooms and stairwells; double or even triple orientation, corner living room; maximisation of glazed surfaces; air permeability tested in accordance with Effinergie requirements.

: © Guillaume Grasseet

: © Guillaume Grasseet

: © Jean-Baptiste Pellerin

: © Jean-Baptiste Pellerin

: © Guillaume Grasseet

: © Guillaume Grasseet

: © Guillaume Grasseet

: © Guillaume Grasseet

: plan 01

: plan 02

: plan 03

: elevation 01

: elevation 02

: section 01

: section 02

: detail
